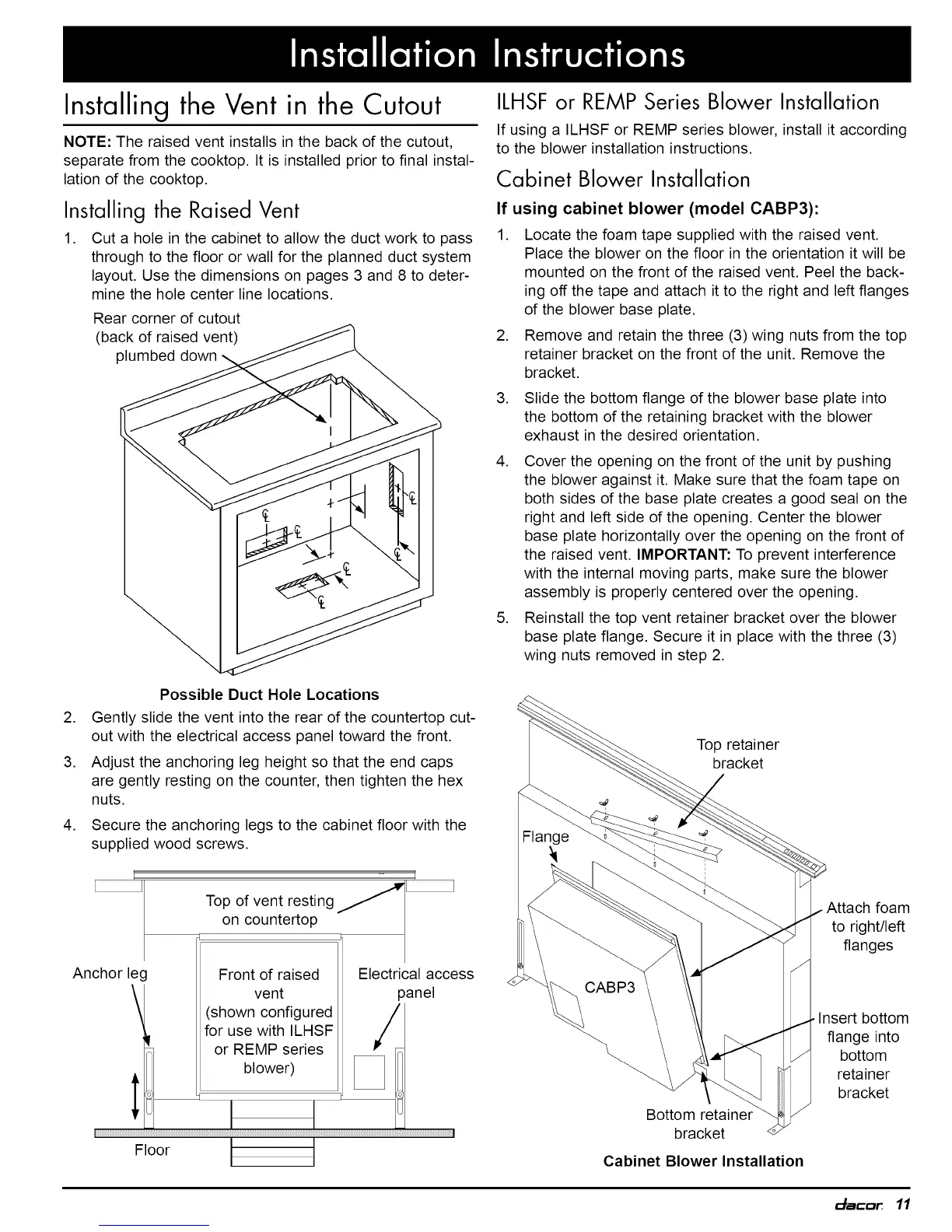

Dacor RV46 - Installing the Vent in the Cutout

Installing the Vent in the Cutout
NOTE: The raised vent installs in the back of the cutout,
separate from the cooktop. It is installed prior to final instal-
lation of the cooktop.
Installing the Raised Vent
1. Cut a hole in the cabinet to allow the duct work to pass
through to the floor or wall for the planned duct system
layout. Use the dimensions on pages 3 and 8 to deter-
mine the hole center line locations.
Rear corner of cutout
(back of raised vent)
plumbed down
,
,
,
Possible Duct Hole Locations
Gently slide the vent into the rear of the countertop cut-
out with the electrical access panel toward the front.
Adjust the anchoring leg height so that the end caps
are gently resting on the counter, then tighten the hex
nuts.
Secure the anchoring legs to the cabinet floor with the
supplied wood screws.
Top of vent resting
on countertop
Anchor leg
\
i
I
Floor
Front of raised
vent
(shown configured
for use with ILHSF
or REMP series
blower)
J
t t
i
Electrical access
)anel
ILHSF or REMP Series Blower Installation
If using a ILHSF or REMP series blower, install it according
to the blower installation instructions.
Cabinet Blower Installation
If using cabinet blower (model CABP3):
1. Locate the foam tape supplied with the raised vent.
Place the blower on the floor in the orientation it will be
mounted on the front of the raised vent. Peel the back-
ing off the tape and attach it to the right and left flanges
of the blower base plate.
,
,
Remove and retain the three (3) wing nuts from the top
retainer bracket on the front of the unit. Remove the
bracket.
Slide the bottom flange of the blower base plate into
the bottom of the retaining bracket with the blower
exhaust in the desired orientation.
,
,
Cover the opening on the front of the unit by pushing
the blower against it. Make sure that the foam tape on
both sides of the base plate creates a good seal on the
right and left side of the opening. Center the blower
base plate horizontally over the opening on the front of
the raised vent. IMPORTANT: To prevent interference
with the internal moving parts, make sure the blower
assembly is properly centered over the opening.
Reinstall the top vent retainer bracket over the blower
base plate flange. Secure it in place with the three (3)
wing nuts removed in step 2.
Top retainer
bracket
oAttach foam
to right/left
flanges
Bottom retainer
bracket
Cabinet Blower Installation
Insert bottom
flange into
bottom
retainer
bracket
