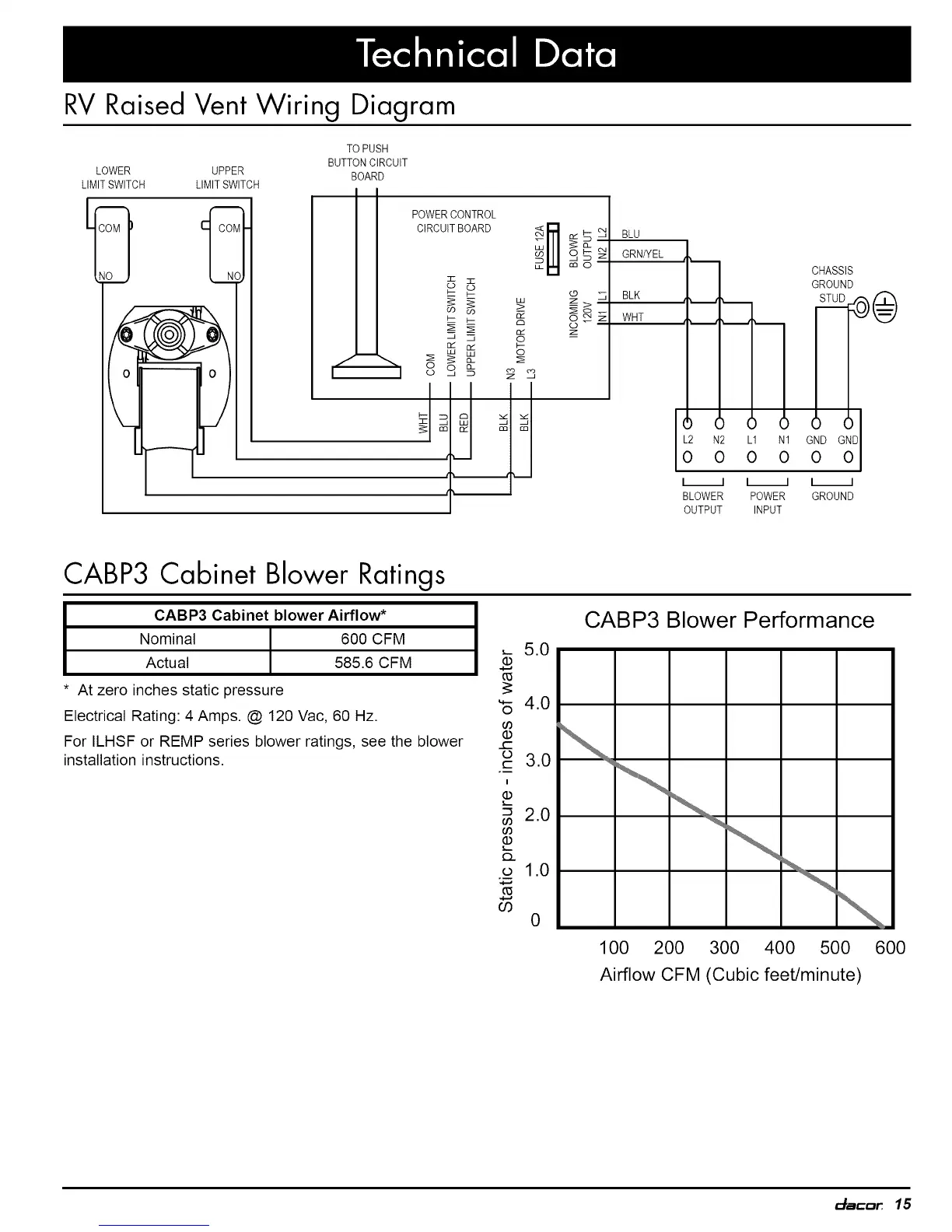

Dacor RV46 - Technical Data; RV Raised Vent Wiring Diagram; CABP3 Cabinet Blower Ratings

RVRaised Vent Wiring Diagram
LOWER UPPER
LIMIT SWITCH LIMIT SWITCH
TO PUSH
BUTTON CIRCUIT
BOARD
I I
POWER CONTROL
CIRCUITBOARD
o_
z
BLU
GRN/YEL
BLK
WHT
L2 N2 L1 N1_
0 0 0 0
[__J L__J
BLOWER POWER
OUTPUT INPUT
CHASSIS
GROUND
GND GNDI
o oj
I__.1
GROUND
CABP3
Cabinet Blower Ratings
CABP3 Cabinet blower Airflow*
O
@
¢-
0
t'--
I
m
o
O9
5.0
4.0
3.0
2.0
1.0
0
CABP3 Blower Performance
1O0 200 300 400 500
Airflow CFM (Cubic feet/minute)
Nominal 600 CFM
Actual 585.6 CFM
At zero inches static pressure
Electrical Rating: 4 Amps. @ 120 Vac, 60 Hz.
For ILHSF or REMP series blower ratings, see the blower
installation instructions.
600
c/mcar 15
