OPERATION 5-21
ATTACHING DEVICES FOR GENERAL
IMPLEMENTS
628O529A
1. Fix lower link (LH & RH) so that the
links do not come in contact with the
wheels.
2. Use the bracket provided to secure
the top link.
WHEN IMPLEMENT IS NOT ATTACHED
1. Extend or retract the top link to adjust
the inclination of an implement.
2. Secure the top link adjustment with the
lock nut after adjusting the top link.
3. The position for connecting the top link
varies depending on the type of
implement.
ADJUSTMENT OF TOP LINK
ADJUSTMENT OF CHECK LINK
Adjust the stabilizers to control horizon-
tal sway of the implement.
628O530A

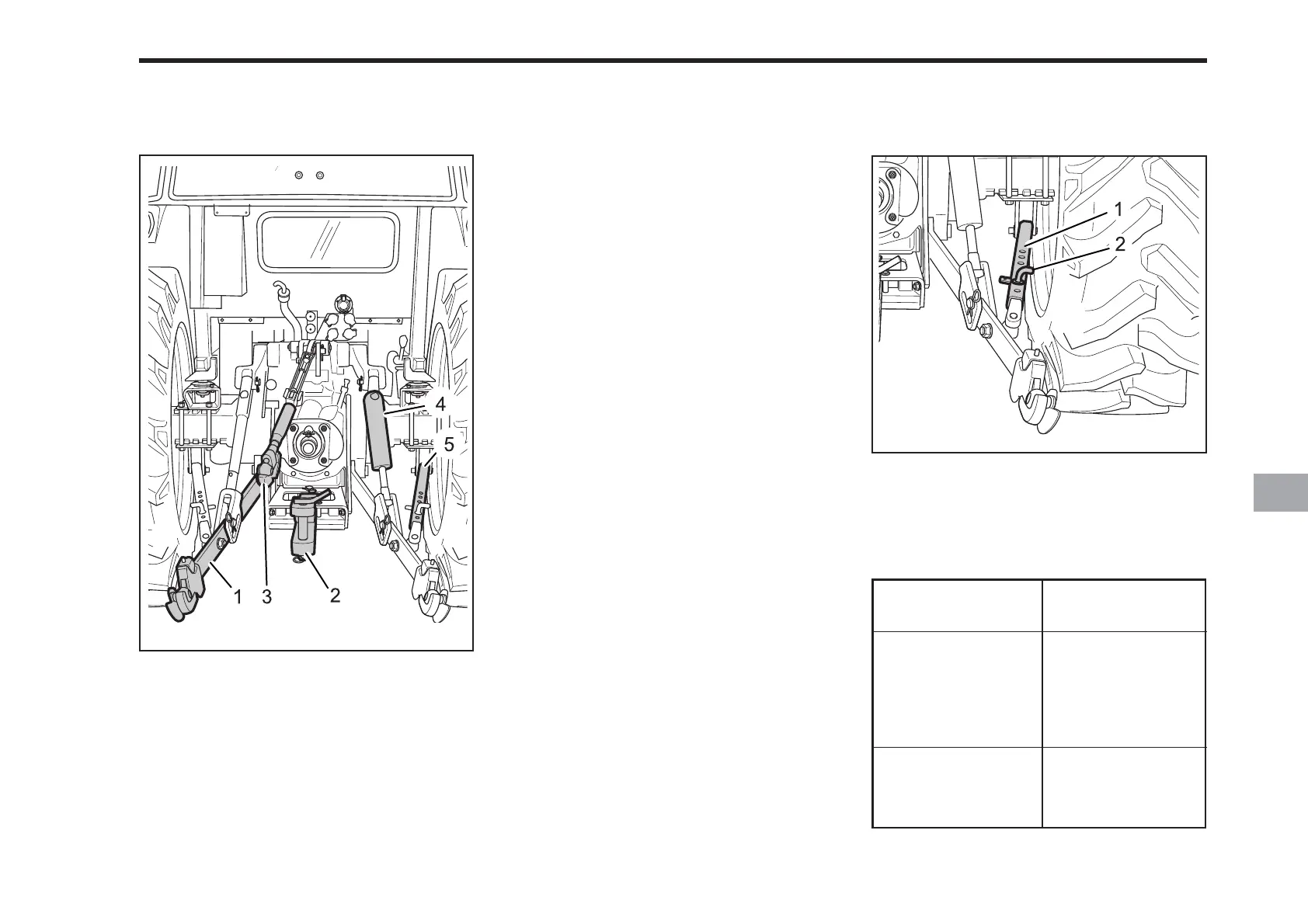

(1) Stabilizer (2) Pin
(1) Lower Link
(2) Drawbar Hitch
(3) Top Link
(4) Lift Linkage
(5) Stabilizer
Type of implement
Plow, furrow,
subsoiler,
cultivator, ditcher
Rotary mower,
hay rake, tender,
ridger
Stabilizer adjust-
ment
Loosen until the
implement can be
moved 50 ~ 60 mm
(1.97 ~ 2.36 in.)
horizontally.
Tighten securely
