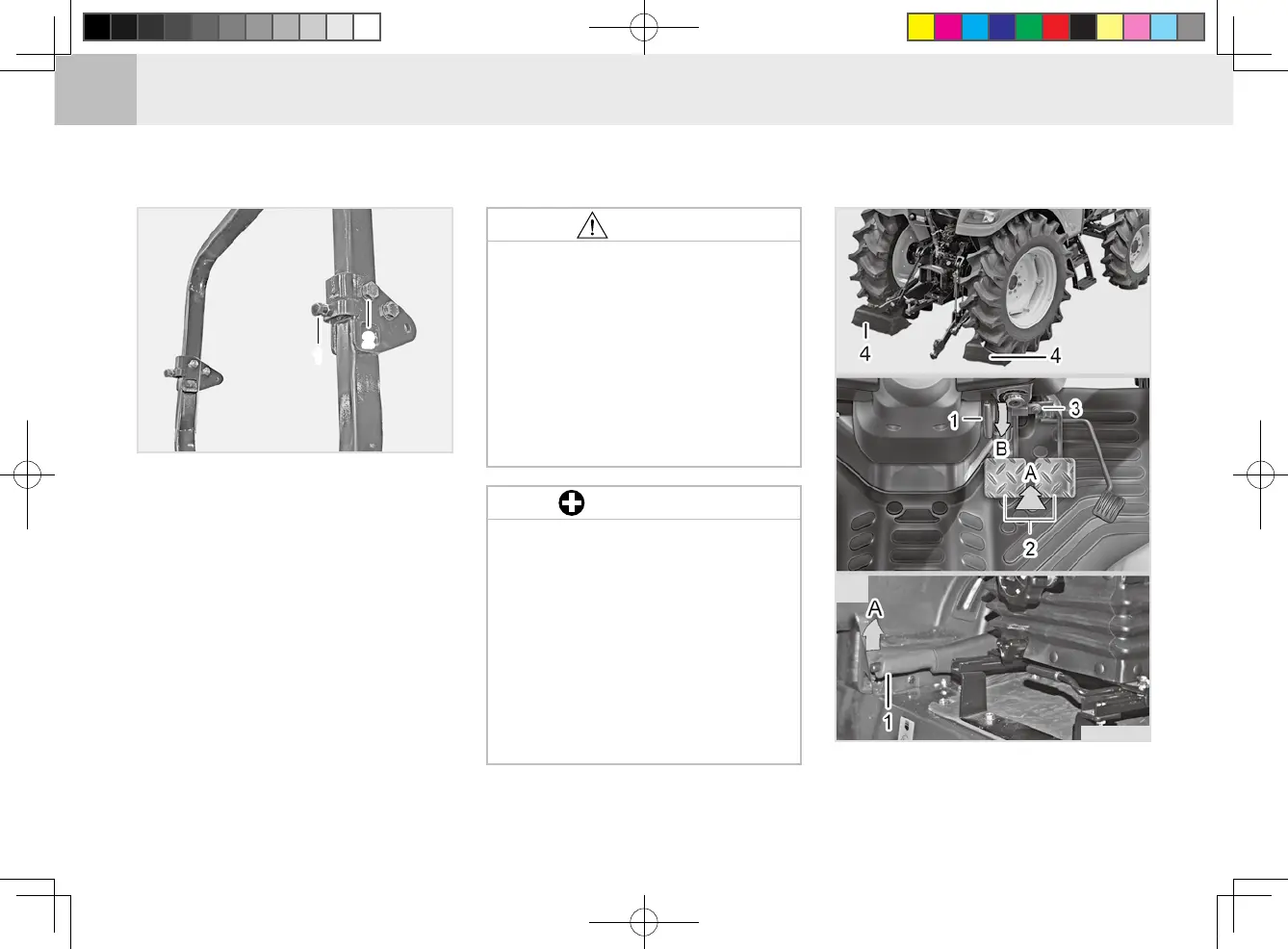

PARKING
(1) Parking Brake Lever (2) Brake Pedals
(3) Pedal Interlock (4) Chocks
(A) Depressing (B) Pressing Down
EU
M55O562A
HOW TO RAISE THE ROPS TO UPRIGHT POSITION
1. Unscrew the mounting bolt.
2. Set the ROPS in the upright posi-
tion.
3. Ali gn the bolt hole an d fit the
mounting bolt to them.
4. Tighten the knock bolt and fix it
with the nut.
Te3O514A
(1) Knock Bolt (2) Mounting Bolt
IMPORTANT
ROPS (Roll Over Protective
Str uct ure ), su n can opy o r
cabin are not a FOPS (Falling
Object Protective Structure).
It never can protect the riders
against falling objects. Avoid
driving the vehicle into a dan-
gerous area such as falling
rocks zone. Otherwise, it may
lead to a serious injury.
•
CAUTION
To avoid accidents:
Make sure to set the ROPS up-
right and fasten the seat belt
during work. If it is necessary
to work with ROPS folded, do
not fasten the seat belt. Fas-
tening seat belt with folded
ROPS can be dangerous in
case of tractor rollover.
•
To Next Page
