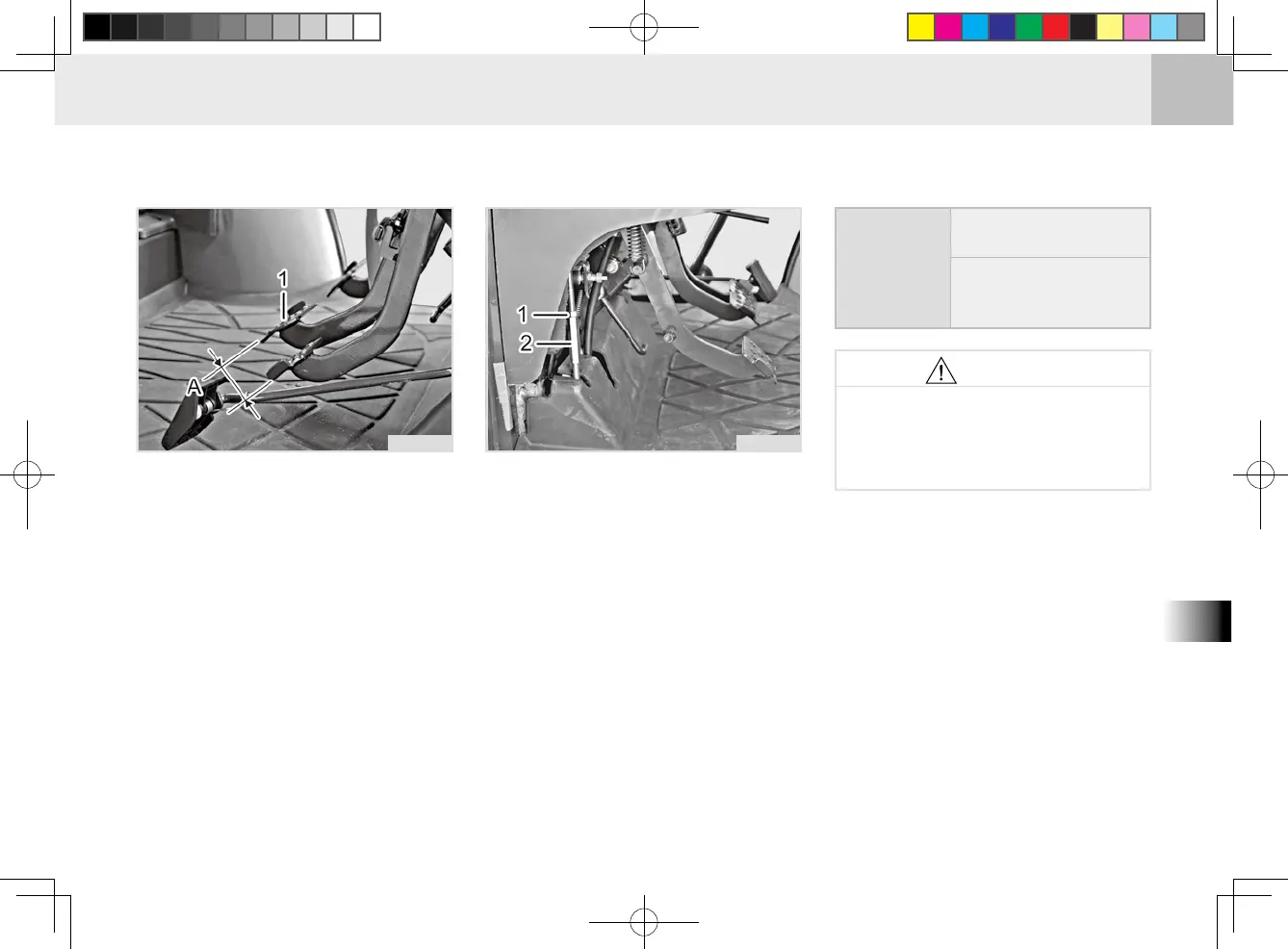

(1) Brake Pedal
(A) Free Play
M55O7B6A
Adjust the brake pedal free play pe-
riodically. Refer to the "Maintenance
schedule chart" for checking interval.
The brake pedal can be adjusted as
follows:
1. Release the parking brake and un
lock the pedal inter-lock.
2. Slightly depress the pedals by
hand to measure the free play.
wheels before checking brake
3. When adjustments are needed,
loosen the locking nut and turn the
turn buckle until the rod length is
at the desired and acceptable limit.
4. Re-tighten the lock nuts.
5. Perform the same procedure for
the left brake pedal to make both
free play the same.
6. Interlock the brake pedals after
checking or adjusting them.
CAUTION
brake
free travel
(A)
0.591 ~ 1.181 in.
(15 ~ 30 mm)
Keep the free play in
the right and left brake
pedals equal.
(1) Lock Nut (2) Turn Buckle
M55O7e1A
To Next Page
