Tighten the front axle nut to the
specified torque.
FRONT AXLE NUT TORQUE :
5.0~7.0kgf.m
Fit the caliper over the disk, taking care
not to damage the brake pads. Install
the caliper fixing bolts, and tighten to a
torque of :
2.7kgf.m
Install the speedometer cable and
tighten the oval screw.
After installing the wheel, apply the
brake several times and then check if
the wheel rotates freely. Recheck the
wheel if the brake drags or if the wheel
does not rotate freely.

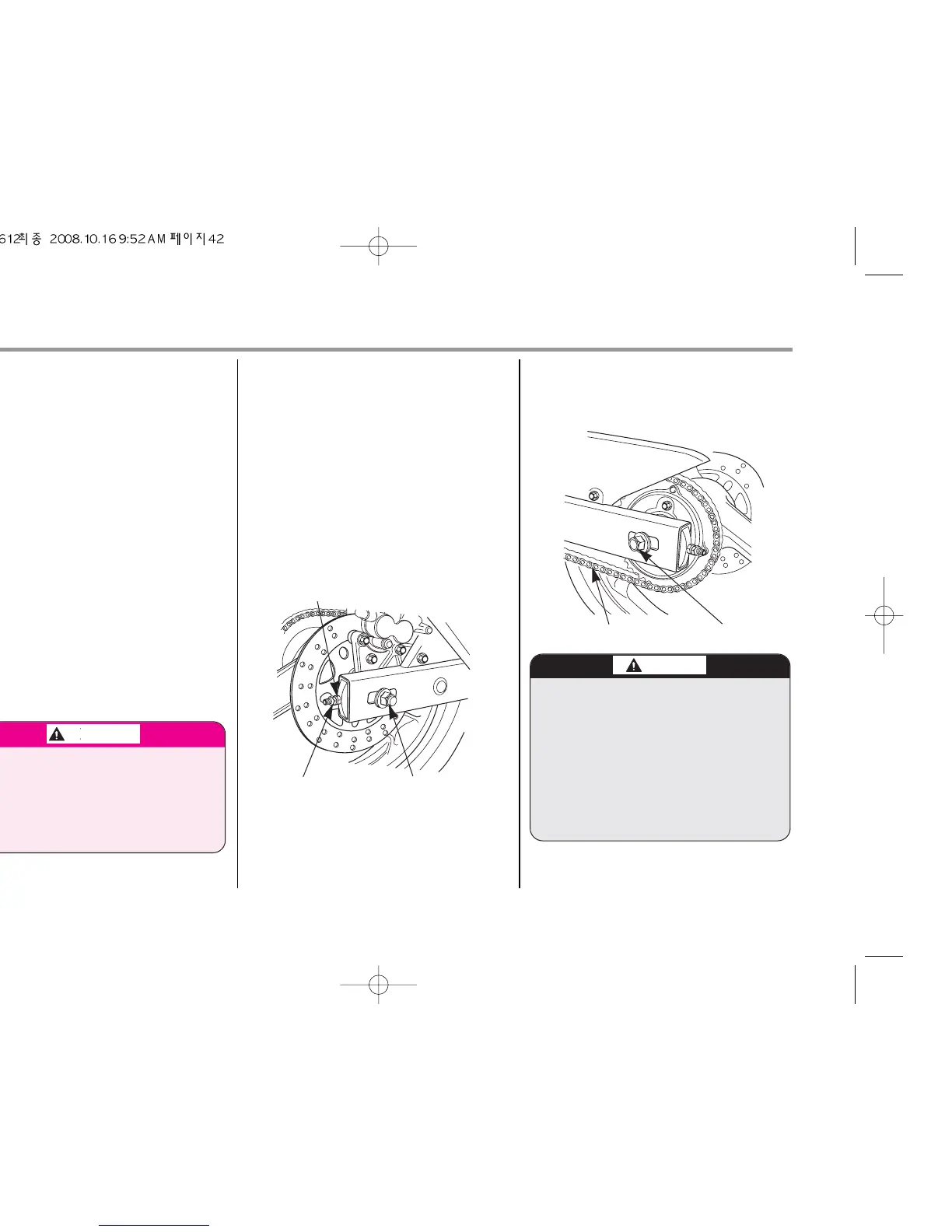

[REAR WHEEL REMOVAL]
1. Place the motorcycle on its main stand
in upright position on level ground.
2. Loosen the drive chain adjusting nut
lock nuts and adjusting nuts.
3. Remove the rear axle nut.
4. Remove the drive chain from the driven
sprocket by pushing the rear wheel
forward.
5. Remove the axle shaft, side collars and
rear wheel from the swing arm.
If torque wrench was not used for
installation, see you authorized dealer
as soon as possible to verify proper
assembly. Improper assembly may lead
to loss of braking capacity.
Do not depress the brake pedal while
the wheel is off the motorcycle.
The caliper pistons will be forced out
of the cylinders with subsequent loss
of brake fluid. If this occurs,
servicing of the brake system will be
nececcary. See your authorized
Daelim dealer for this service.
ADJUST NUT
LOCK NUT
AXLE NUT
DRIVE CHAIN AXLE SHAFT
