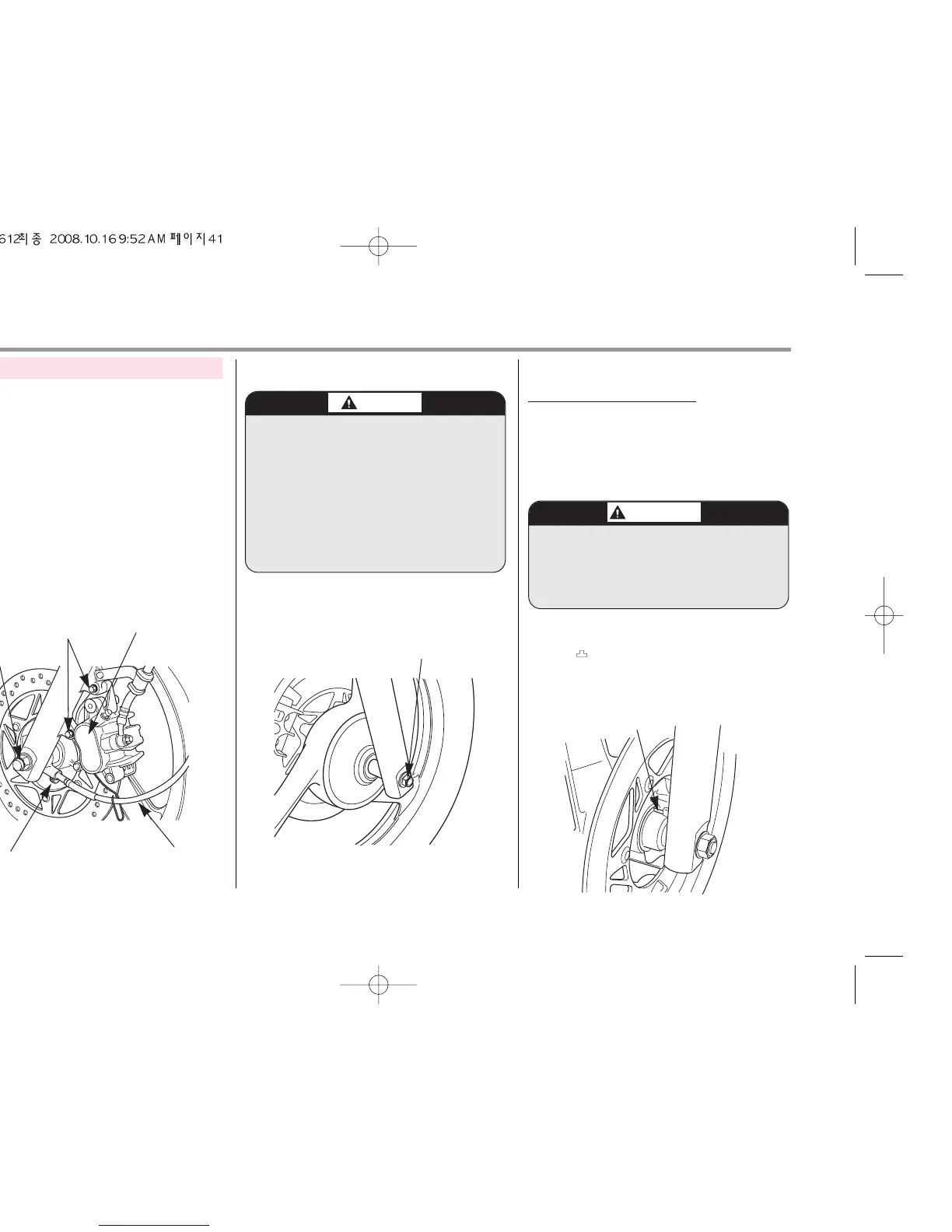

[FRONT WHEEL REMOVAL]
1. Raise the front wheel off the ground by
placing a support block under the
engine.
2. Loose the oval screw and remove the
speedometer cable.
3. Remove the front caliper assembly
from the fork by removing the fixing
bolts.
4. Loosen the axle nut.
5. Withdraw the front wheel axle, side
collar and remove the front wheel.
INSTALLATION NOTES:
Position the front wheel between the
fork legs and insert the axle from the
right side, through the left fork leg and
wheel hub.
Prior to assembling, align the projected
part(
) of the speedometer gear box
with the projected part of the left front
fork.
WHEEL REMOVAL
Do not depress the brake lever when
the wheel is off the motorcycle.
The caliper piston will be forced out
of the cylinder with subsequent loss
of brake fluid. If this occurs,
servicing of the brake system will be
necussary. See your authorized
Daelim dealer for this service.
When installing the wheel, carefully
fit the left brake disk between the
brake pads to avoid damaging the
pads.
AXLE NUT
OVAL SCREW
SPEEDOMETER
CABLE
FRONT WHEEL AXLE
PROJECTED PART
FIXING BOLTS
BRAKE CALIPER
ASSEMBLY
