HOW TO INSTALL THE DRAIN HOSE
(NON PUMP MODEL)
1615

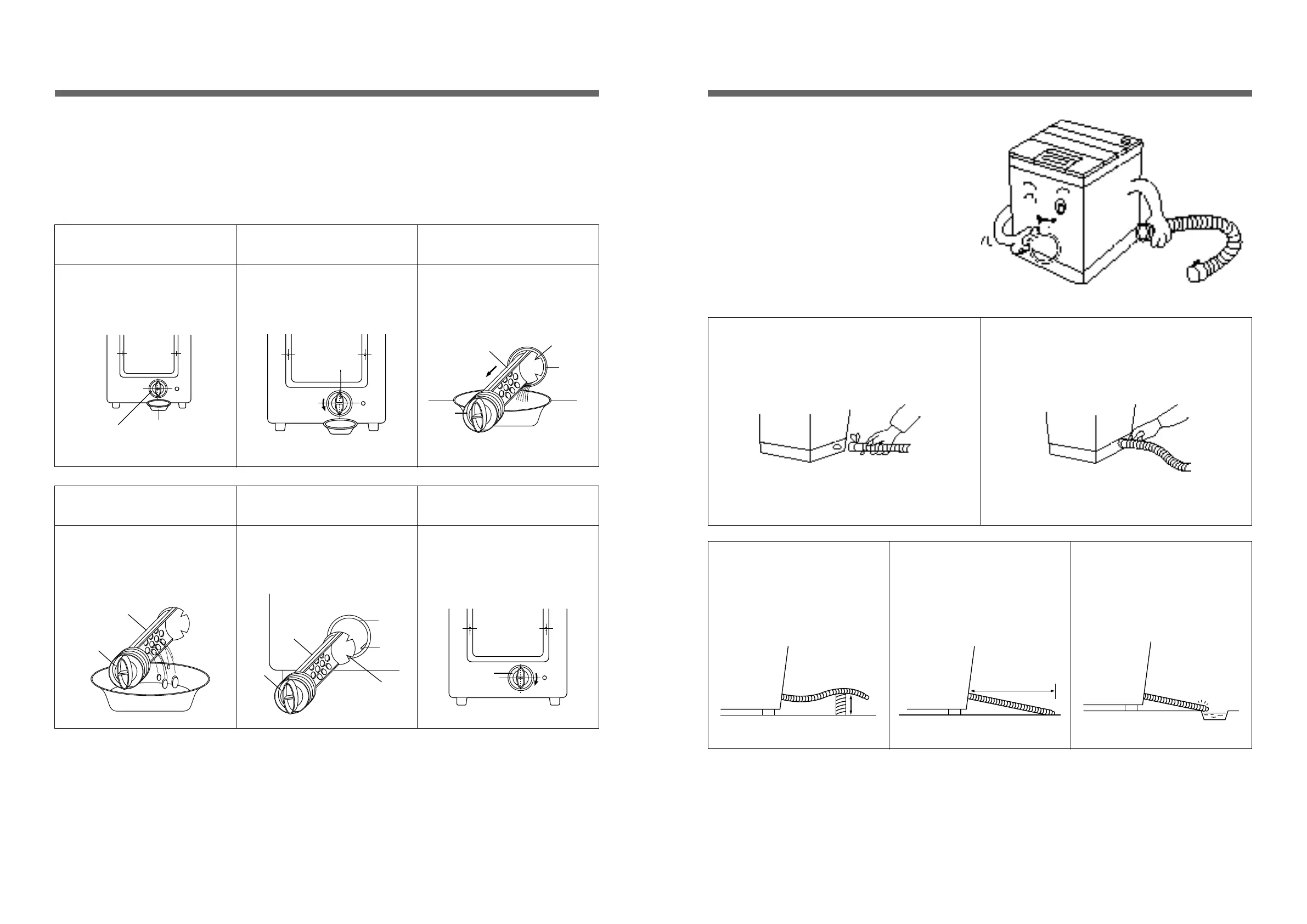

HOW TO CLEAN DRAIN FILTER (PUMP MODEL)
In this washer machine, the drain filter is equipped at the back side of it.
This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons etc..
And this should be cleaned frequently (every 5 times of use) for its smooth operation.
Drain problem could be caused if the drain filter is not cleaned at proper time.
Please keep it clean.
In case you clean the drain filter, please follow the instructions as below.
NOTES: During the operation, the "OE" signal means drain error can be displayed on the control panel.
In this case, the main cause of that problem is the blocking of the drain filter.
If you clean the drain filter following above instructions, you could continue the normal operation of the washing
machine to reset the program, please turn the power off and on again.
1
Remove the
remained water
• Put down the remained water in the
hose. And put a container under
the filter to collect water.
2
Unscrew the cap.
• Turn the cap counter clockwise.
3
Release the filter
assembly
• Pull out the filter assembly off the
case of the main body.
4
Remove the
foreign stuffs
• Clean the drain filter removing the
foreign stuffs.
5
Put the filter
assembly back
• Put in the filter along the guiding
prominence of the case. Please
note the right position of the filter
adjusting the groove to the guide
rib.
6
Lock the cap.
• Turn the cap clockwide tightly.
Installing Drain Hose
Widen the drain hose clamp and insert the drain hose
into the drain tap together with drain hose.
Dipping the end of the drain hose in warm water
makes easy to insert the drain hose.
1 Insert the drain hose into the drain tap. 2 Secure the clamp around the end of the drain hose.
• In case that it goes over a
doorsill. Don't let the height of
the drain hose exceed 20cm
from the ground.
• In case of extending the drain
hose. Don't let the total length
exceed 3m.
