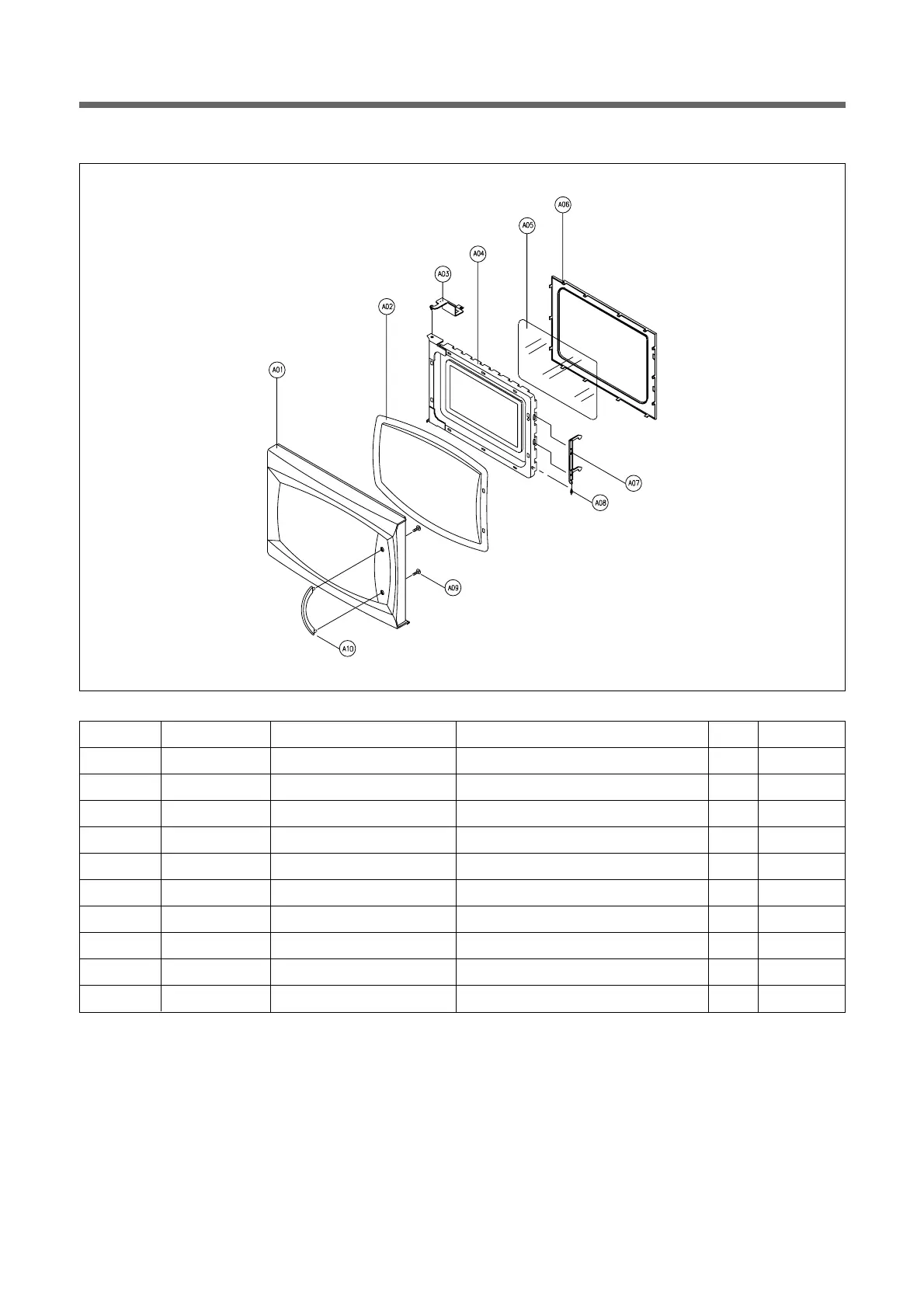

REF NO. PART CODE PART NAME DESCRIPTION Q'TY REMARK
A01 3512206450 FRAME DOOR ABS SG-175 SG-0760D 1
A02 3517008800 BARRIER-SCREEN *O SAN CR-5381 SMOG 1
A03 3515204100 STOPPER HINGE *T AS KOR-63150S 1
A04 3511706120 DOOR PAINTING AS KOR-634R0S 1
A05 3517002800 BARRIER-SCREEN *I POLYESTER T0.1 1
A06 3512300210 GASKET DOOR PP 1
A07 3513100700 HOOK POM 1
A08 3515101320 SPRING HOOK HSW-3 1
A09 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 2
A10 3512605110 HANDLE DOOR ABS SG-175 SG-0760D SPRAY 1
3. To remove door parts.
(1) Remove the gasket door from door weld as.
(2) Remove the gasket door from door weld as.
(3) Remove the door frame from door weld as.
(4) Remove the stopper hinge top from door weld as.
(5) Remove the spring and the hook.
(6) Remove the barrier screen outer from door frame.
(7) Reverse the handle from door frame.
(8) Reverse the above steps for reassembly.
DOOR ASSEMBLY : 3511723730
