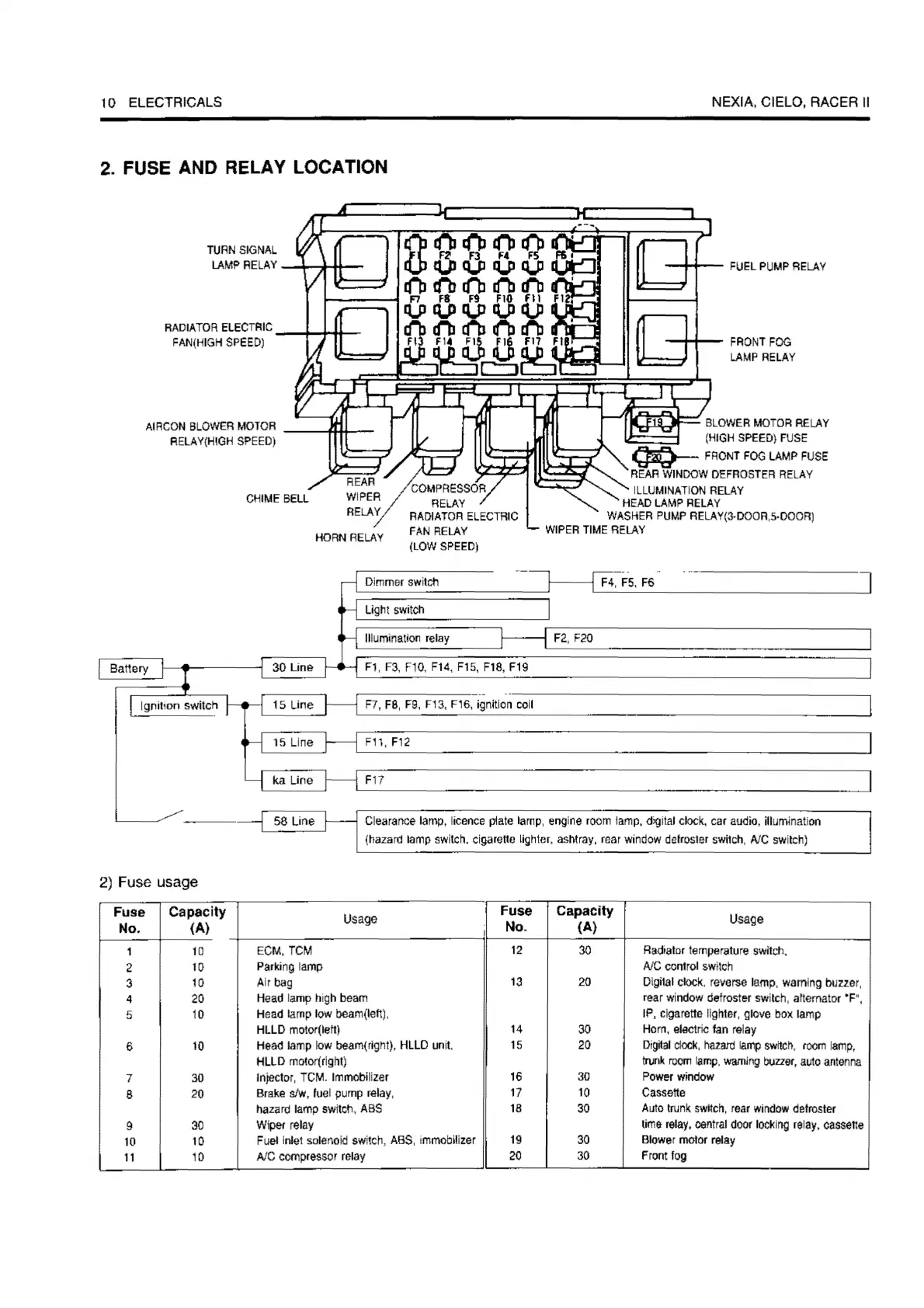

10 ELECTRICALS
2. FUSE AND RELAY LOCATION
TURN SIGNAL
LAMPRELAY-.....,Ht-
HORN RELAY
Dimmer switch
light switch
llluminatloo relay
Battery
1-------1 30 Line
F1, F3, F10, F14, F15, F18, F19
Ignition switch
15 Line
F7, F8, F9, F13, F16, ignition coll
15 Line
F11, F12
ka Line
F17
NEXIA, CIELO, RACER II
-++- FUEL PUMP RELAY
--- FRONT FOG
LAMP RELAY
ILLUMINATION RELAY
HEAD LAMP RELAY
WASHER PUMP RELAY(3'DOOR,5-000R)
WIPER TIME RELAY
58 Line
Clearance lamp, licence ~ate lamp, engine room tamp, digital clock. car audio, llumination
(hazard lamp switch. cigarette lighter, ashtray, rear window delrosler swi1ch, A/C switch)
2) Fuse usage
Fuse
capacity
Usage
Fuse
Capacity
Usage
No.
(A)
No. (A)
1
10
ECM, TCM
12
30 Radiator temperature switch,
2
10
Parking lamp A/C con1rol switch
3
10
Airbag
13 20 Digital clock, reverse lamp, warning buzzer,
4
20
Head lamp high beam
rear window defroster switch, alternator •f•,
5
10
Head lamp low beam(left),
IP, cigarette lighter, glove box lamp
HLLD motor(left)
14
30
Hom, alectrlc fan relay
6
10
Head lamp low beam{rlght), HLLD unit,
15
20 Digital CIOck, haZard lamp swtlcll, room lamp,
HLLD molor(rlght) trunk room lamp, warning buzzer, auto antenna
7
30
Injector, TCM. Immobilizer 16
30
Power window
8
20
Braka s/w, fuel pu111,1 hllay, 17 10 Cassette
hazard lamp switch, AB$
18
30
Auto trunk switch, rear Window defroster
9
30
W¥* relay
lime relay. central door IOcklng relay. cassette
10
10
Fuel inlet solenoid switch, ABS, immobHlzer 19 30 Blower motor relay
11
10
A/C compressor relay 20
30 Front fog
