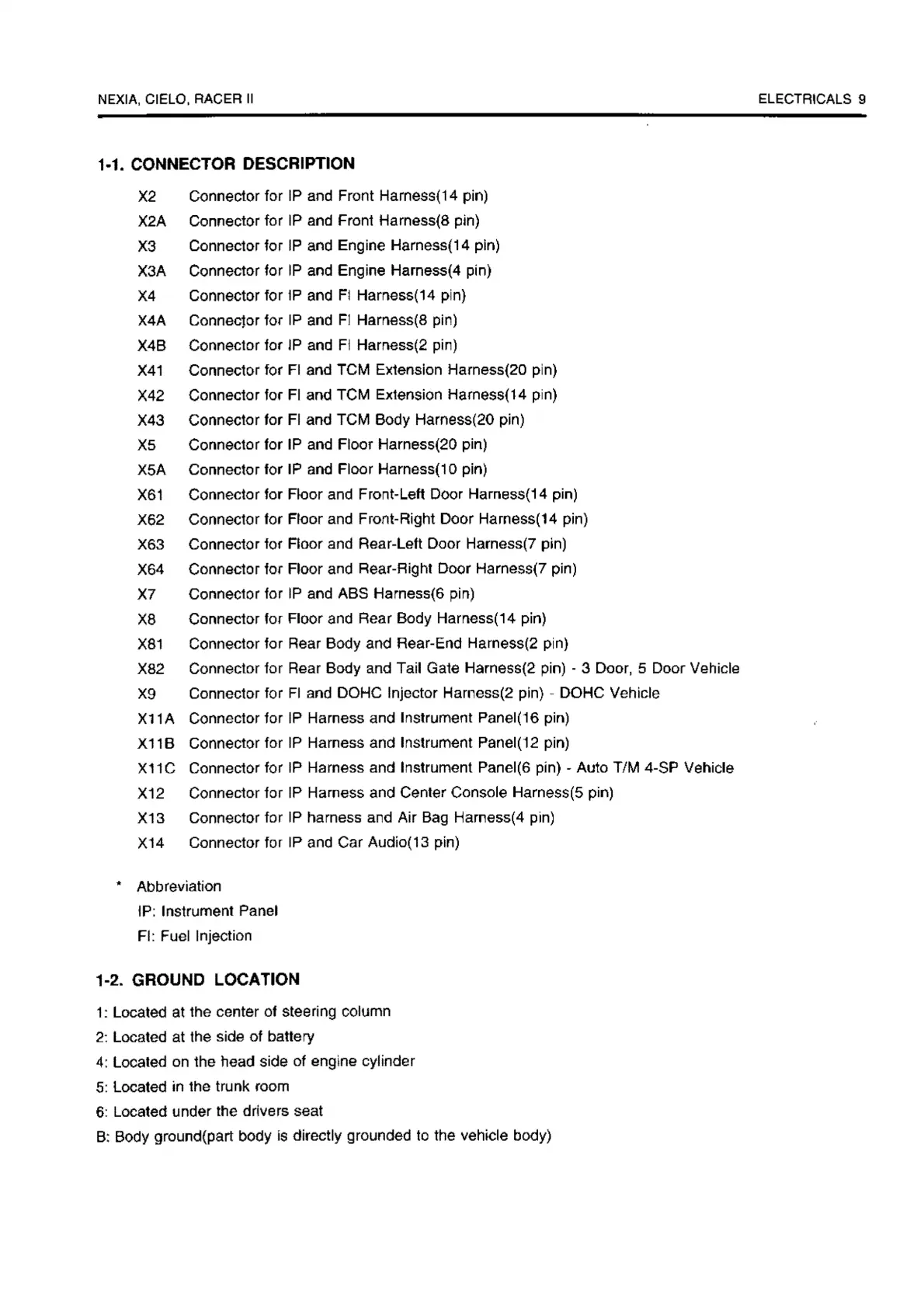

NEXIA, CIELO, RACER II
1-1. CONNECTOR DESCRIPTION
X2 Connector br IP and Front Harness(14 pin)
X2A
Connector for IP and Front Harness(8 pin)
X3
Connector lor IP and Engine Harness(14 pin)
X3A Connector for IP and Engine Harness(4 pin)
X4
Connector for JP and F: Har'less(14 p:n)
X4A Connecjor ior IP and F Har.-.ess(S pin)
X4B Connector for JP and F Har.-.ess(2 pin)
X41 Connector for Fl and TCM Extension Harness(2D pin)
X42
Connector ior Fl and TCM Extension Harness(14 pin)
X43
Connector for Fl and TCM Body Harness(20 pin)
X5
Connector for IP and Floor Harness(20 pin)
X5A
Connector for IP and Floor Harness(1 O pin)
X61 Connector ior Floor and F ro1t-Lett Door Harness(14 pin)
X62
Connector for Floor and Fro:1t-Rigr1t Door Harness(14 pin)
X6] Connector ior Floor and Rem-Left Door Harness(? pin)
XM Connector ior Floor and Rear-Right Door Harness(? pin)
X7
Connect)r for IP and ABS Harness(6 oin)
X8 Connector for Floor and Rear Body Harness(14 pin)
X81 Connector for Rear Body and Rear-End Harness(2 pin)
X82 ConnectDr tor Rear
Body and Tail Gate Harness(2 pin) - 3 Door, 5 Door Ver1icle
xg Connector for Fl and DOHC Injector Harnoss(2 pin) DOHC Vehicle
X11A Connector for IP Harness and Instrument Pane1(16 pin)
X 11 B Connect:)r for IP Harness ancJ Instrument Panel( 12 pin)
X 11 C Connector for IP Harness and l'lstrumont Pancl(6 pin) - Auto TIM 4-SP Vehicle
X12 Connector tor IP Harness and Center Console Harness(5 pin)
X13 Connector br IP ha-ness ard Air Bag Harness(4 pin)
X14
Connector for IP and Car Audio(13 pin)
• Abbreviation
IP:
Instrument Panol
Fl: Fuel Injection
1-2. GROUND LOCATION
1: Located at the center of steering column
2: Located at the side of battery
4: Located on the head side of engine cylinder
5: Located in the trunk room
6: Located under the drivers seat
B: Body ground(part body Is directly grounded to the vehicle body)
ELECTRICALS 9
