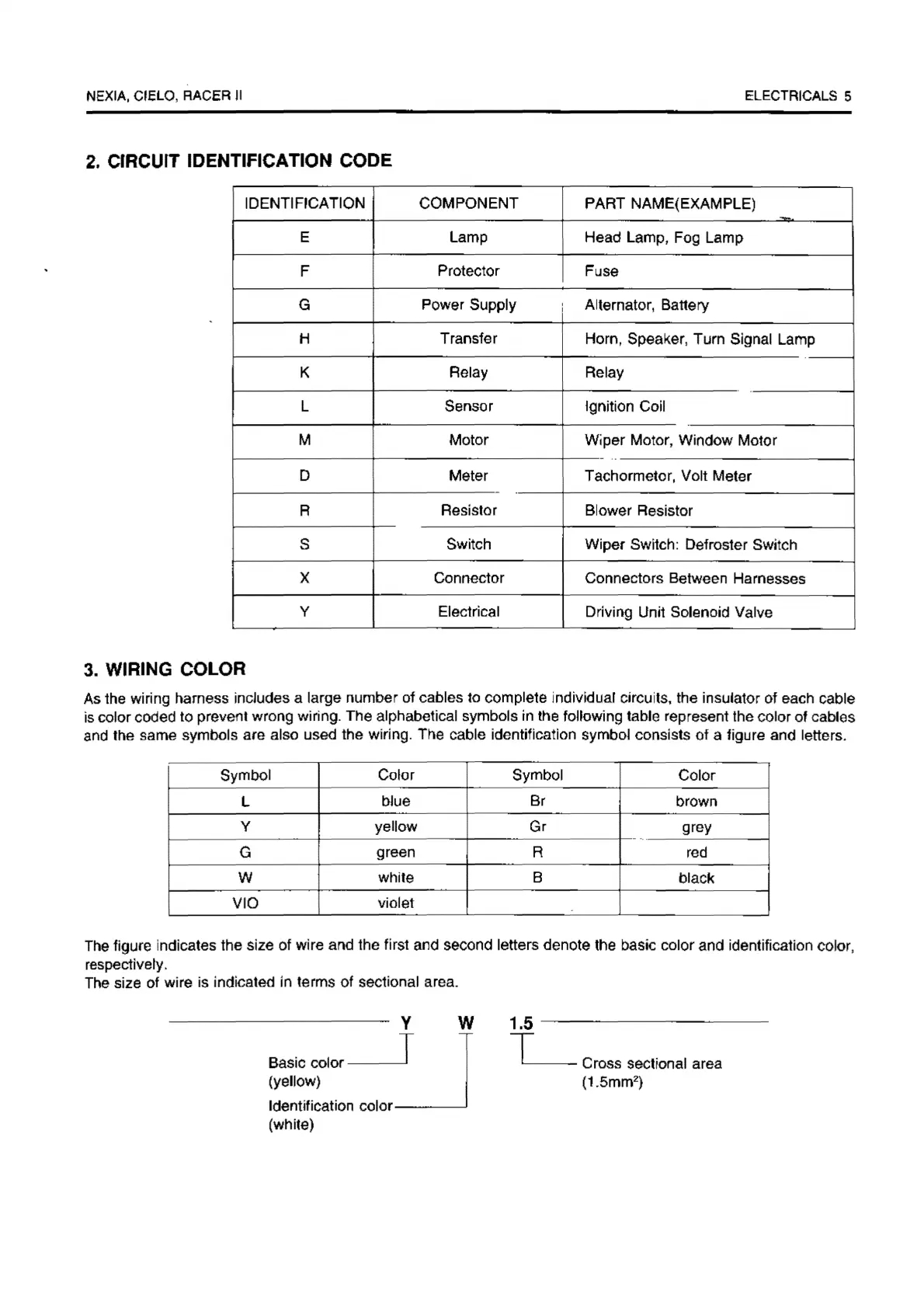

NEXIA,
CIELO,
RACER
U ELECTRICALS 5
2.
CIRCUIT IDENTIFICATION CODE
IDENTIFICATION
COMPONENT
PART
NAME(EXAMPLE)
-
E Lamp
Head Lamp,
Fog
Lamp
F
Protector
Fuse
G
Power Supply
'
Alternator, Battery
H Transfer
Hom,
Speaker,
Tum Signal
Lamp
K
Relay
Relay
L Sensor Ignition Coil
M Motor Wiper Motor,
WindOw
Motor
-
..
D Meter Tachormetor, Volt
Meter
-
R
Resistor
Blower Resistor
s
Switch
Wiper Switch: Defroster Switch
X Connector
Connectors Between Hamesses
y
Electrical
Driving Unit Solenoid Valve
3.
WIRING
COLOR
As
the wiring harness inciudes a large number of cables to complete individual circuits, the insulator of each cable
is
color coded to prevent wrong wiring. The alphabetical symbols in the following table represent the color of cables
and
the same symbols are also used the wiring. The cable identification symbol consists
of
a figure and letters.
Symbol Color
Symbol
Color
L
blue
Br
brown
y
yellow
Gr
grey
-
..
G
green
R
red
w
White B
black
VIO
violet
The figure Indicates the size of wire and the first and second letters denote the basic color and identification color,
respectively.
The size of wire is indicated
In
terms
of
sectional area.
y w
Basic
color-~
(yellow)
Identification color
(white)
1.5
-----------
1
Cross sectional area
(1.5mm2)
