3 in 1 Portable Air Conditioner
Model No. COL1316
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Description of Parts – The Vent Kit

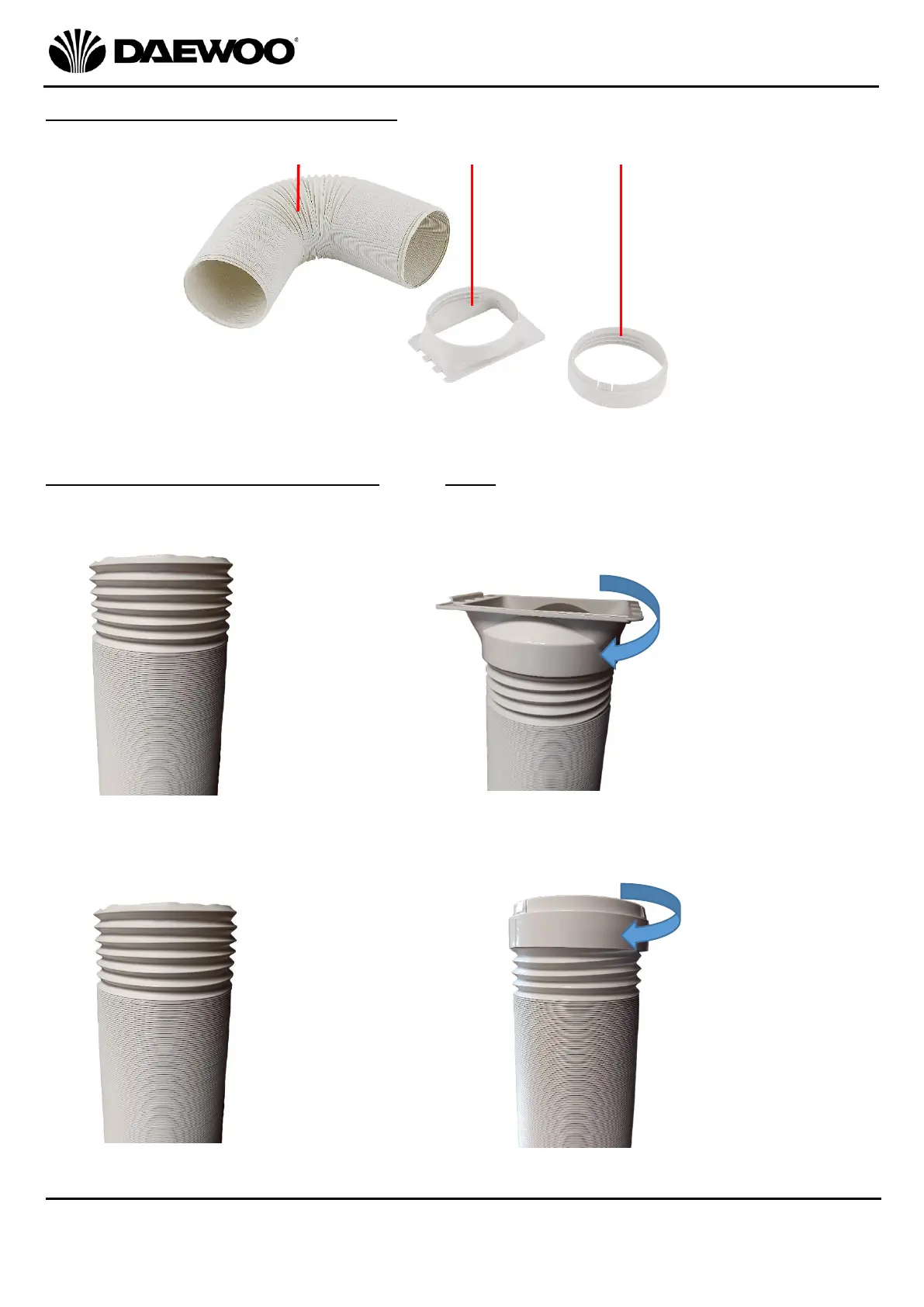

Fitting the Flexible Exhaust Hose – this must be fitted before use:
1. First fit the Hose Connector (21) to one end of the Flexible Hose (20) as follows:
2. Next attached the Hose Exit Ring (22) to the other end of the hose as follows:
20
21
20. Flexible Exhaust Hose
21. Hose Connector
22. Hose Exit Ring
a. Extend one
end of the
Flexible hose
(20) by about
10cm
b. Screw the
Hose
Connector (21)
onto the end
of the hose in
a clockwise
direction.
22
c. Extend the
other end of
the Flexible
Hose (20) by
about 10cm
d. Screw the
Hose Exit Ring
(22) onto the
other end of
the hose in a
clockwise
direction.
a.
b
.
c.
d.
