Wall Type Depth of Hole Bit diameter of hammer drill Bit diameter of tile hole
Concrete 45mm ø 13mm -
Tile Distance between tile and ø 14mm
retaining wall + 45mm
ď
Ĉ ď
ᶀ
Grounding is required to prevent electric shocks. Check the availability of circuit breaker.
- Contact the sales store or service center for further details.
ᶀ
If the power outlet has no grounding terminal:
- Grounding must apply for the safe use of washer.
- Grounding is performed by the service center engineers or qualified personnel only.
- Contact your nearby service center for details.
ᶀ
Grounding is prohibited in the following locations.
- Gas pipe (It has the risk of explosion or fire)
- Phone wire or lightning rod (It is risky when struck by lightning)
- Water pipe (Many water pipes are made of plastic materials)
If a power cord is broken, you should contact the sales
store or service center as a special tool is required.
Contact the service center to relocate the installation.
(Additional charge applies)
Relocation
Exchange of Power Cord
- Organize inlet and drain hoses and power
cord with molding and hose guide.
* Wipe the attachment area clean with a dry cloth
and then attach the molding and hose guides
tightly.

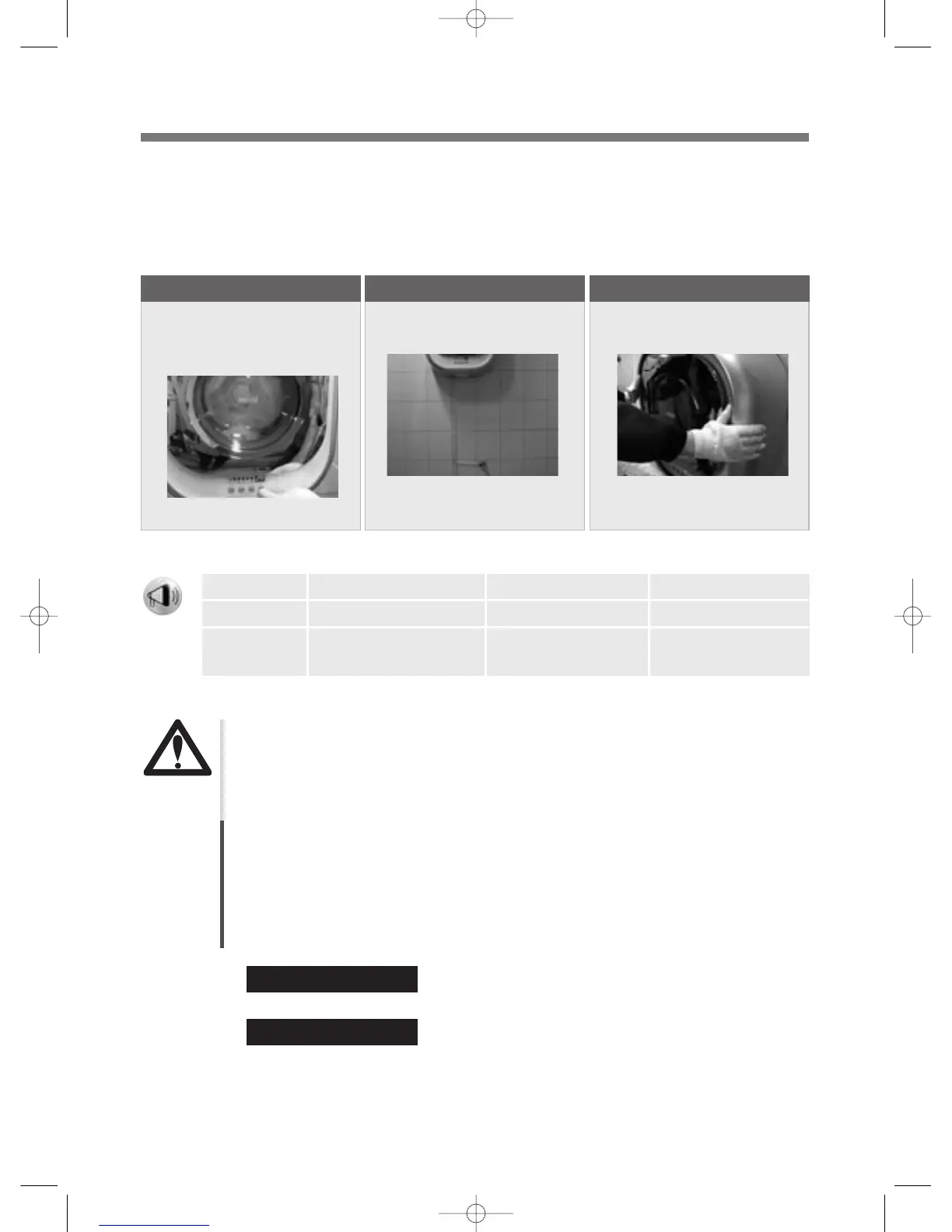

15. Organize inlet and drain hoses and power cord
- Connect 4 nuts and bolts above and below
after mounting the body.
* Check whether any cleavages exist on both
sides.
16. Mount the body
Follow the installation instructions to install the washer more conveniently.
- Run a test operation to identify any
malfunctions or leaks.
14. Test Operation
To Next Page
