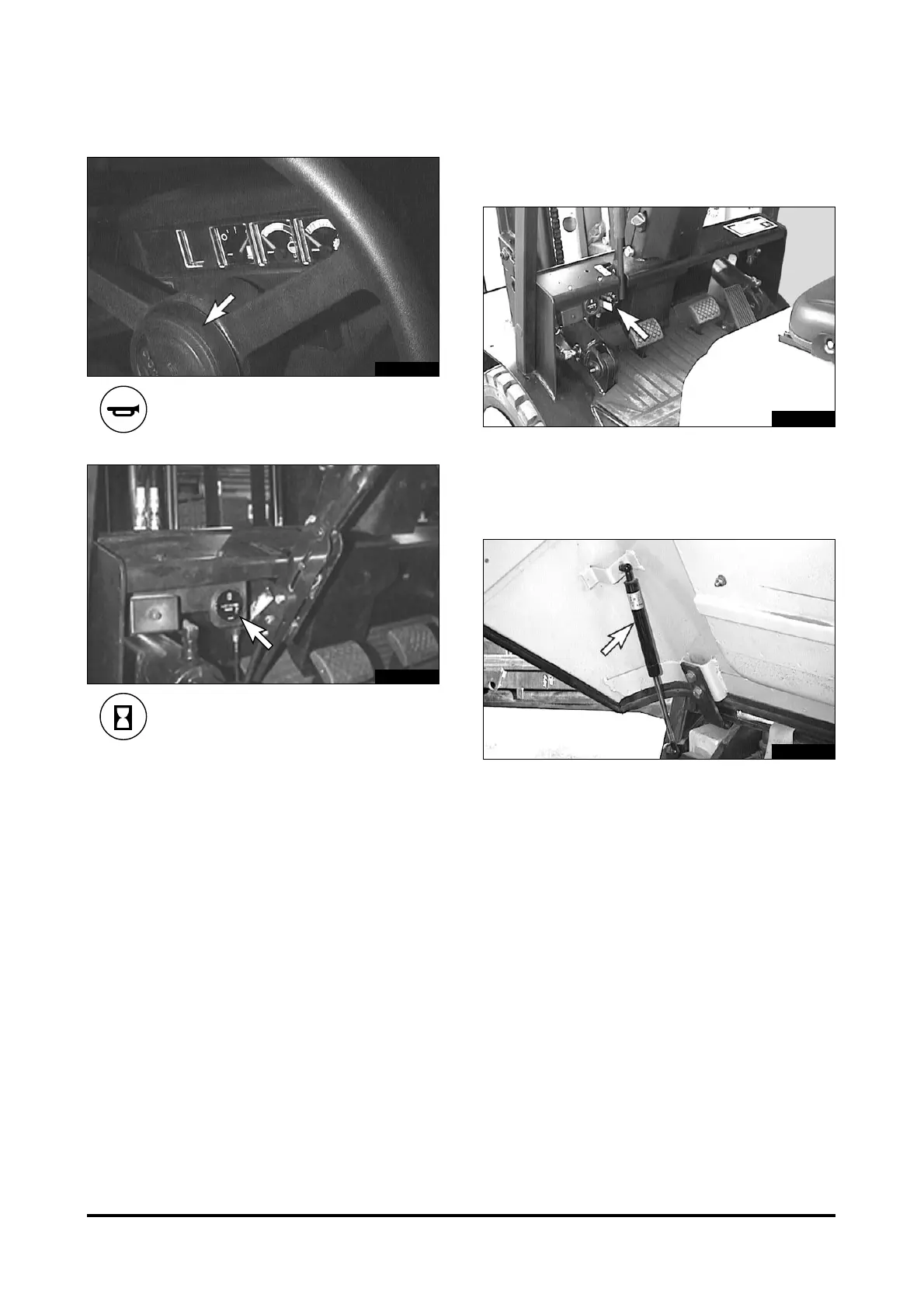

7. Horn Switch - Push on the horn but-
ton to sound the horn.
8. Service Hour Meter - Indicates the
total number of hours the engine and
the lift truck have operated. The hour
meter will operate when the ignition switch is in
the ON position, whether the engine is running or
not. The hour meter is used to determine lubrica-
tion and maintenance intervals.
Engine Compartment
1. The engine compartment is accessible by
pulling the latch and raising the hood and seat
assembly.
( Note : unlock latch before pulling-if key equipped)
2. The hood and seat assembly is held up by a
support cylinder. Make certain the air cylinder is
operating properly and will hold the hood up
before doing anything in the engine compartment.
