Maintenance Section
-147-
Parking Brake - Test, Adjust
See topic, “Parking Brake - Test, Adjust” in “First 50-100
Service Hours.”

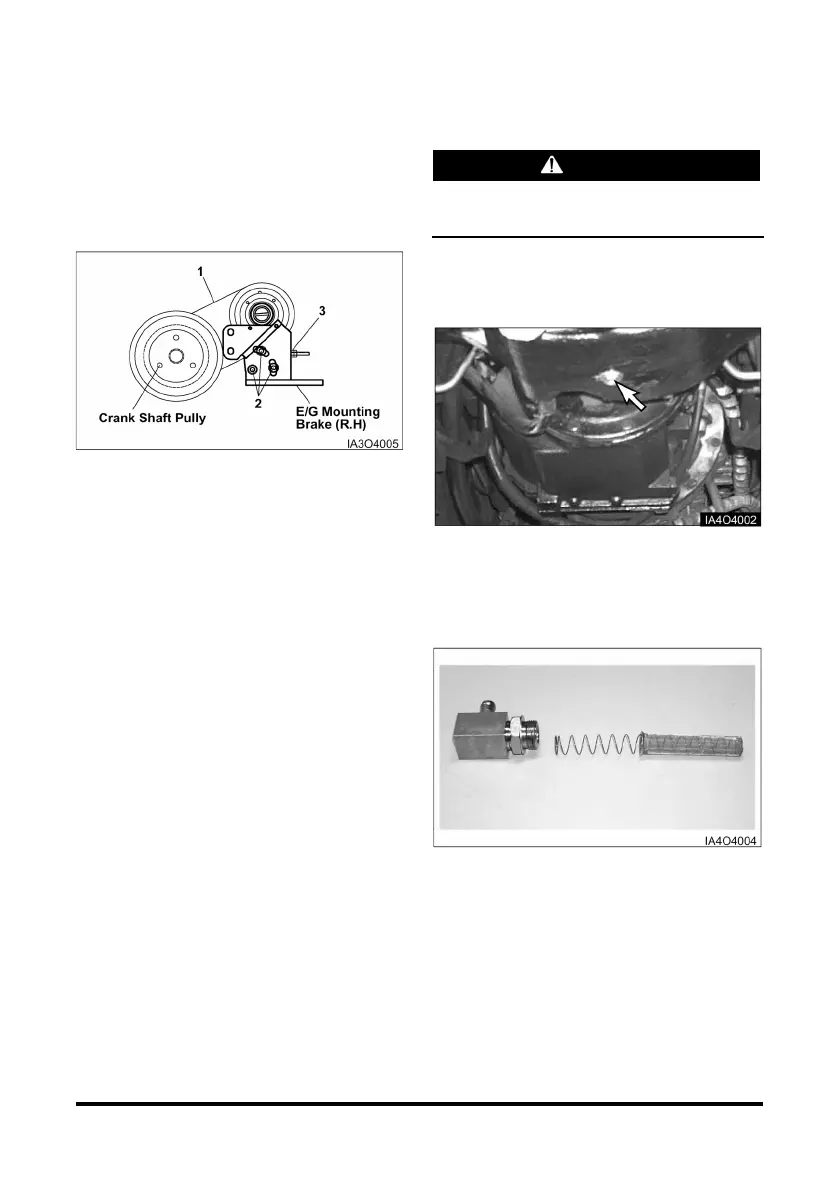

Circulation Pump Belt (OCDB & LP-
Gas Engine Only) - Check, Adjust
1. Raise the hood and seat assembly.
2. Check the condition and adjustment of the belt (1).
Correct adjustment allows 10 mm (3/8 inch)
deflection under 45 N of force.
3. To adjust the circulation pump belt, loosen the
mounting bolts (2) and adjust the adjusting inner nut
(3). Tighten the adjusting outer nut (4).
4. Lower the hood and seat assembly.
Drive Axle Oil & Strainer (OCDB
Only) - Check, Clean, Change
WARNING
Hot oil and components can cause personal injury.
Do not allow hot oil or components to contact skin.
Park the lift truck on a level surface. Apply the parking
brake. Place the directional control level in NEUTRAL
and stop the engine.
1. Remove drain plug. Allow the oil to drain into a
suitable container. Clean the magnetic drain plug.
Check O-ring seal and replace if necessary.
2. Install the drain plug.
3. Remove strainer assembly.
4. Washer the strainer assembly in clean,
nonflammable solvent and dry it.
5. Install the strainer assembly and reconnect the hose
and harness.
