Daewoo D45SC-2 User Manual

Maintenance Section
-160-
3.
4.
5.
6.
7.
8.
9.
10.
11.

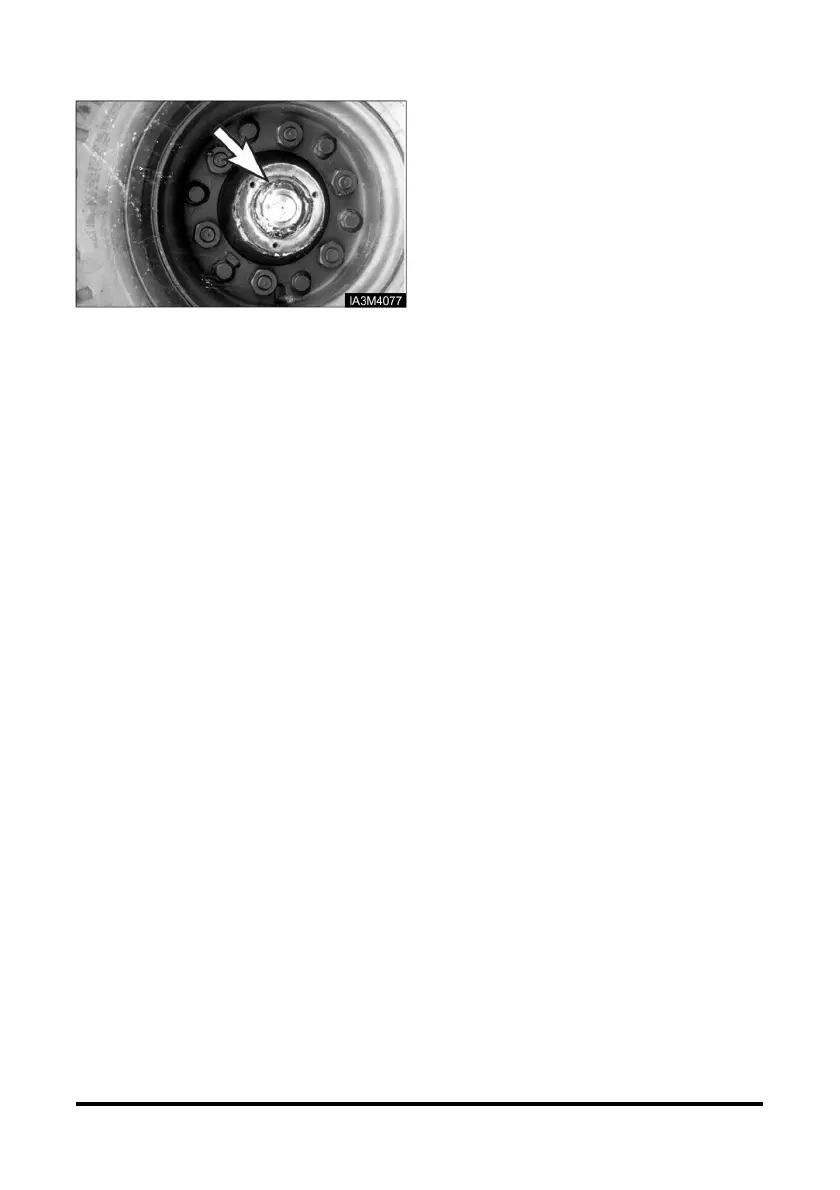

Typical Example
9. Tighten the locknut to 135 N•m (100 lb•ft), while
turning wheel hub to seat the bearing.
10. Loosen the locknut. Retorque it to 50 ± 5 N•m (37 ±
4 lb•ft). Bend the lockwasher tang to secure locknut.
11. Install the hub cap.
12. Raise the lift truck and remove the blocking Lower
the lift truck to the ground.

Daewoo D45SC-2 Specifications

General

Brand	Daewoo
Model	D45SC-2
Category	Forklifts
Language	English
