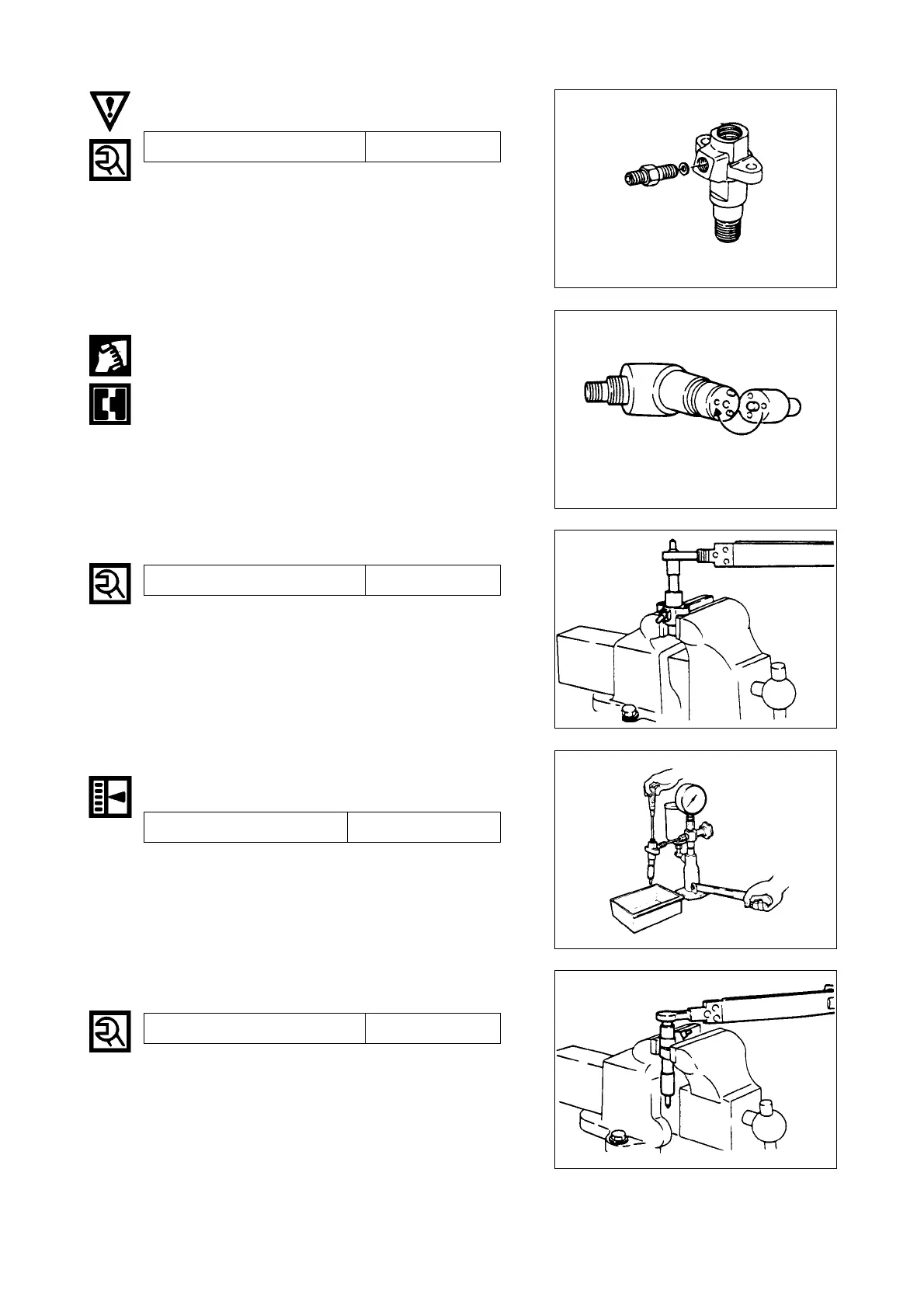

Injection Nozzle
Clean injection nozzle
Assemble nozzle to be correctly fixed to dowel pin on
nozzle hold body.
¥
Retaining Nut
¥
Adjustment of Screw
Adjust with the adjustment screw.
¥
Nozzle Holder Cap Nut
EJM5009S
EJM5010S
EJM5011S
EJM5012S
EJM5013S
Nozzle Connector Torque 5.5±0.5 kg¥ m
Torque 7±1 kg¥ m
Cap Nut Torque 4.5±0.5 kg¥ m
Injection Opening Pressure 220 kg/cm
2
