Daewoo D50S-2 - 3 System of Lubrication; General Description

(2)
(3)
(5)
(4)
(9)
(6)
(7)
(8)
(12)
(17)
(13)
(16)
(14)
(15)
(18) (19) (20)
(21)
(24)
(22) (23)
(10)
(11)
(1)

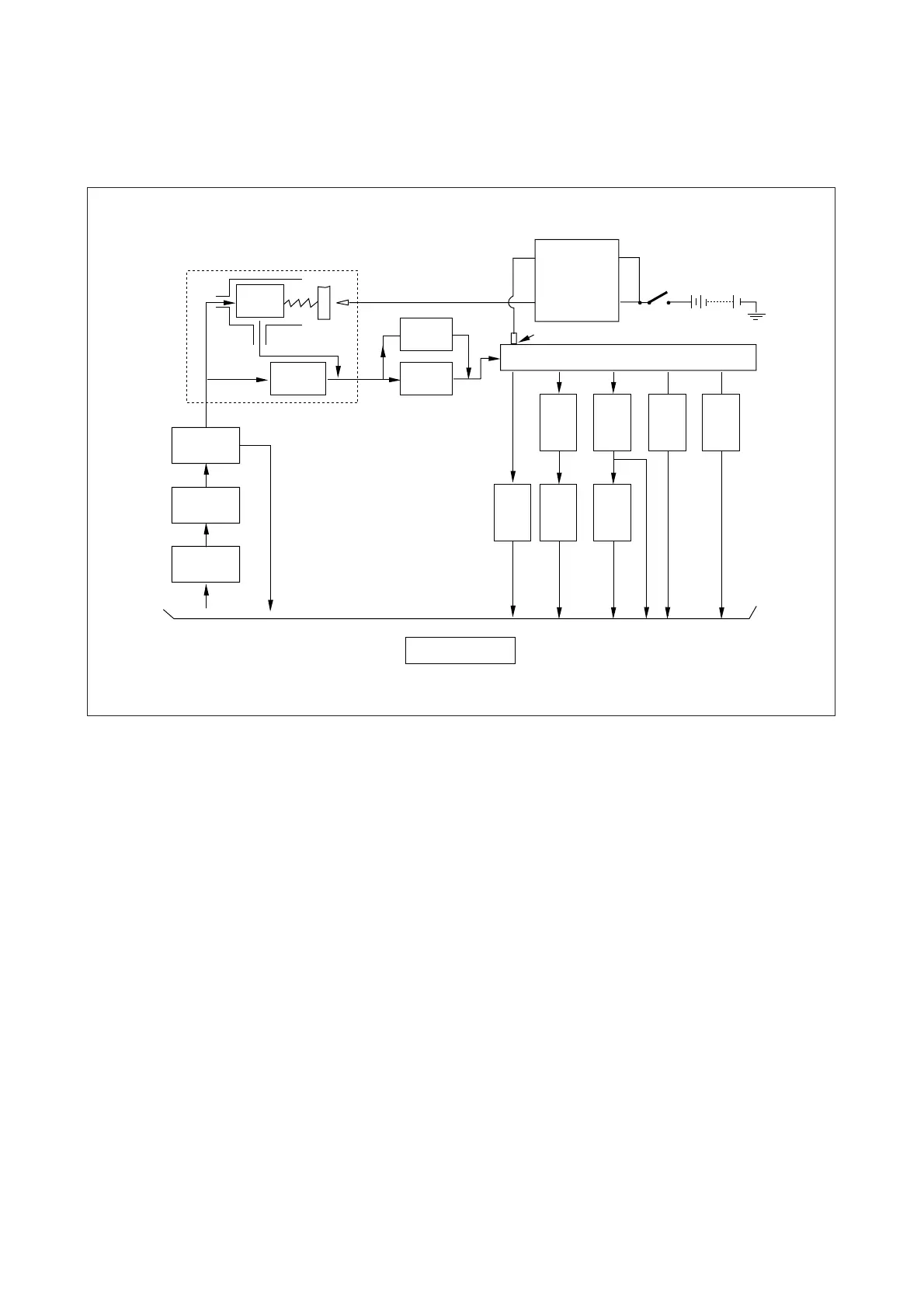

3. System of Lubrication
3.1. General Description
- 73 -
EJM3001I
(1) Full flow filter
(2) By-pass valve
(3) Valve opening pressure 1kg/cm
2
(4) Valve opening pressure 8kg/cm
2
(5) Paper filter
(6) By-pass valve
(7) Oil cooler
(8) Valve opening pressure 2kg/cm
2
(9) Oil relief
(10) Oil pump
(11) Oil strainer
(12) Valve opening pressure 4.5kg/cm
2
(13) Oil pressure and oil filter warning lamp
(14) Starter switch
(15) Battery
(16) Oil pressure switch
(17) Crank shaft bearings
(18) Cam-shaft bearings
(19) Timing dile gear
(20) Injection Pump
(21) Oil relief valve
(22) Conn. rod bearings
(23) Cyl. head valve system
(24) Oil pan
