Vehicle Systems Disassembly & Assembly

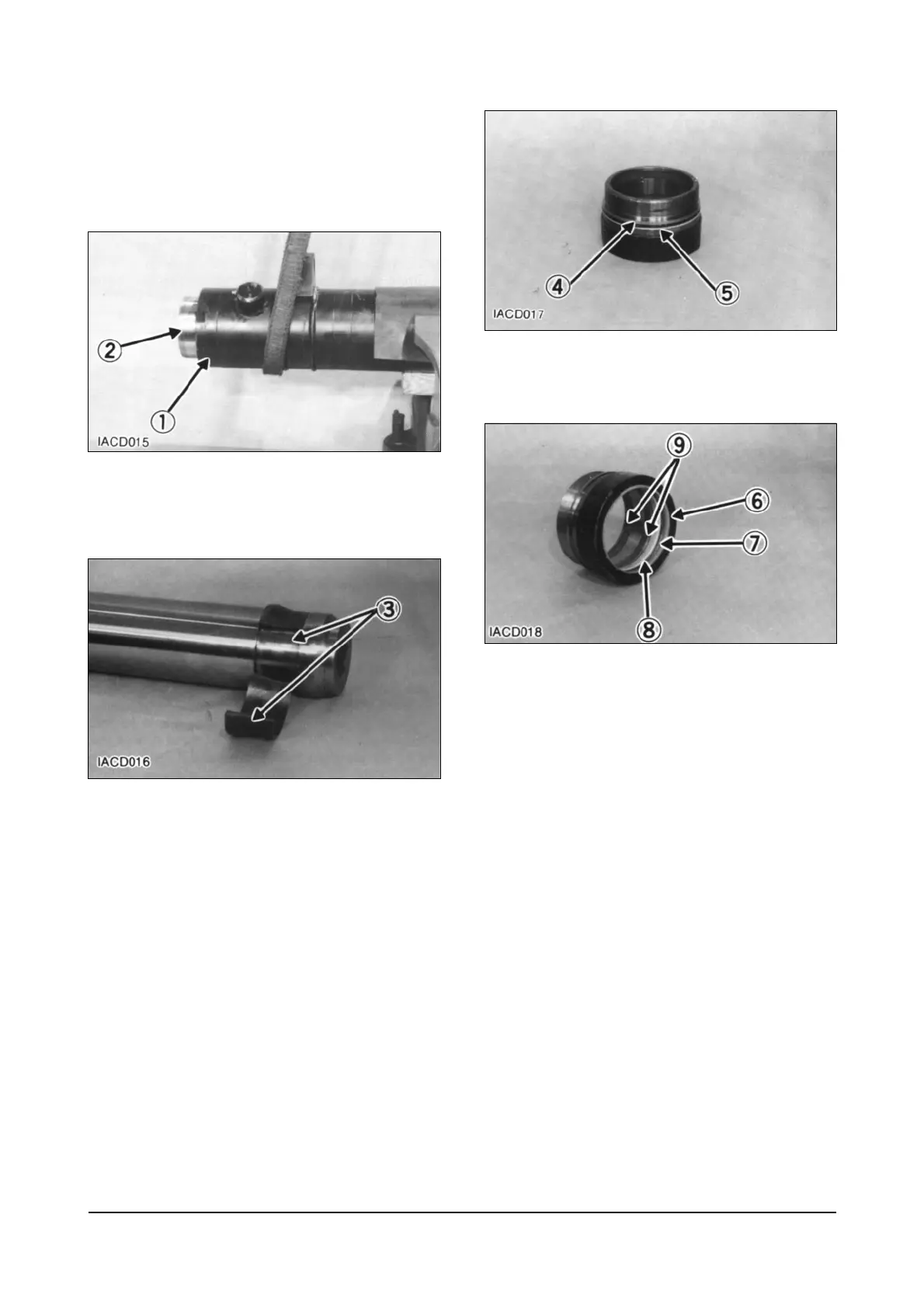

Disassemble Primary Lift Cylinder
Start By :
a. Remove primary lift cylinder.
1. Remove bearing (1).
2. Remove rod (2) from the cylinder body.
3. Remove split rings (3) from the cylinder rod.
4. Remove O-ring seal (4) and back-up ring (5) from
the bearing.
5. Remove wiper seal (6), back-up ring (7), seal (8)
and rings (9) from the bearing.
13
To Next Page
