Daewoo D50SC-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly

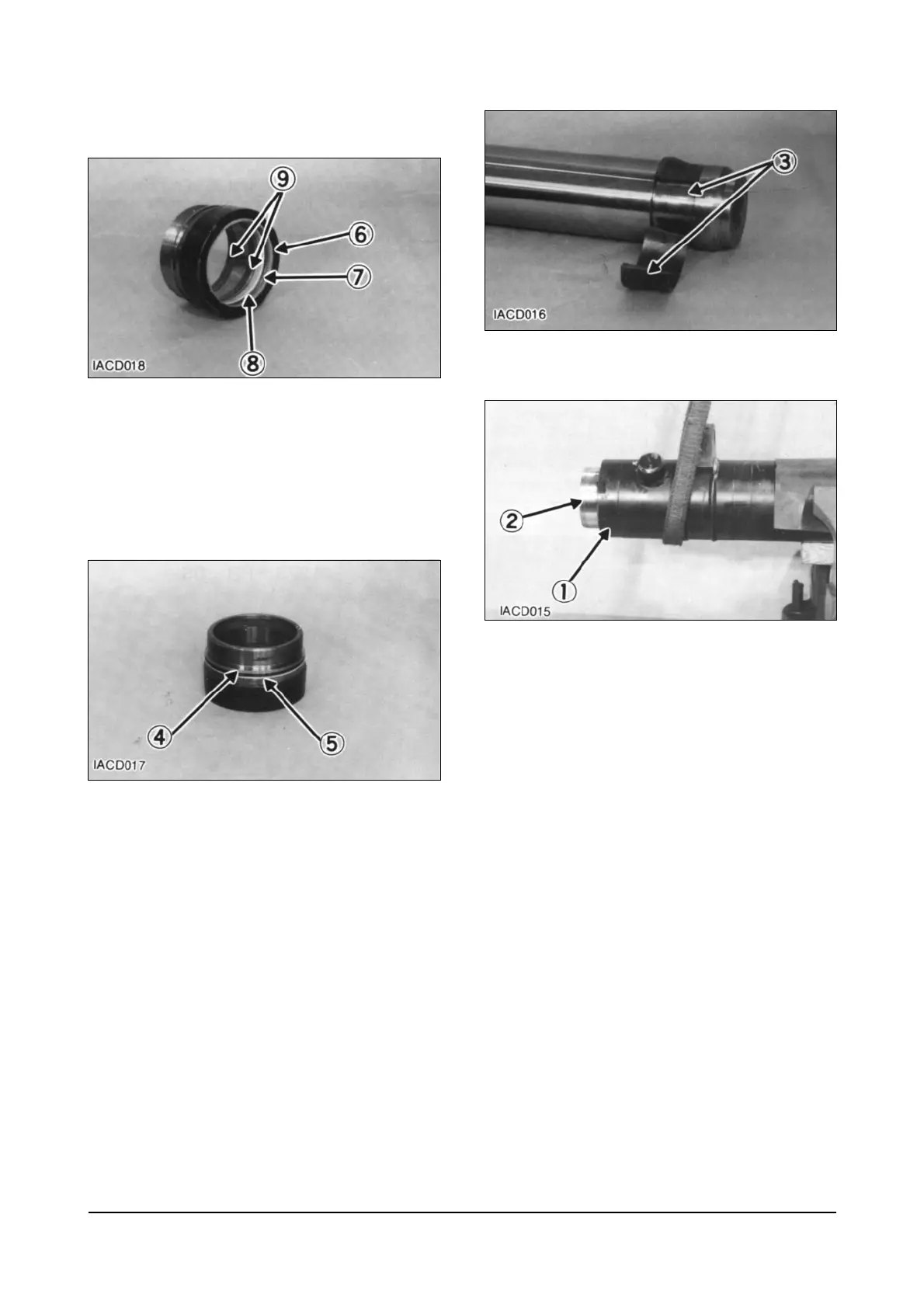

Assemble Primary Lift Cylinder
1. Install back-up ring (7) and seal (8) in the bearing.
Install the seal with the lip toward the inside.
2. Install wiper seal (6). Install the seal with the lip
toward the outside.
3. Install rings (9) in the bearing.
NOTE : Install the back-up ring with the curved side
contacting the O-ring seal.
4. Install the back-up ring (5) and O-ring seal (4) on
the bearing.
5. Install split rings (3) on the cylinder.
6. Install cylinder rod (2) in the cylinder body.
7. Install bearing (1) on the cylinder body. Tighten the
bearing (1).
End By :
a. Install primary lift cylinder.
14
