Daewoo D50SC-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
12. Remove plug (27) and washer (28) from steering
unit body.
13. Remove plug (31) and spring (32) from the body
(2).
14. Remove poppet (34) and relief valve housing (35)
from the body.
15. Remove plug (36) and washer (37) from the
body.
NOTE : The following steps are for assembling the
steering pump.
16. Install washer (37) and plug (36) into the steering
unit body.
17. Install housing (35) and poppet (34) into the
pump body.
18. Install spring (32) and plug (31) into body (2).
Tighten plug (31) to a torque 50 N¥m (37 lb¥ft).
19. Install washer (28) and plug (27) into body (2).
Tighten plugs to a torque 30 N¥m (22 lb¥ft).
18

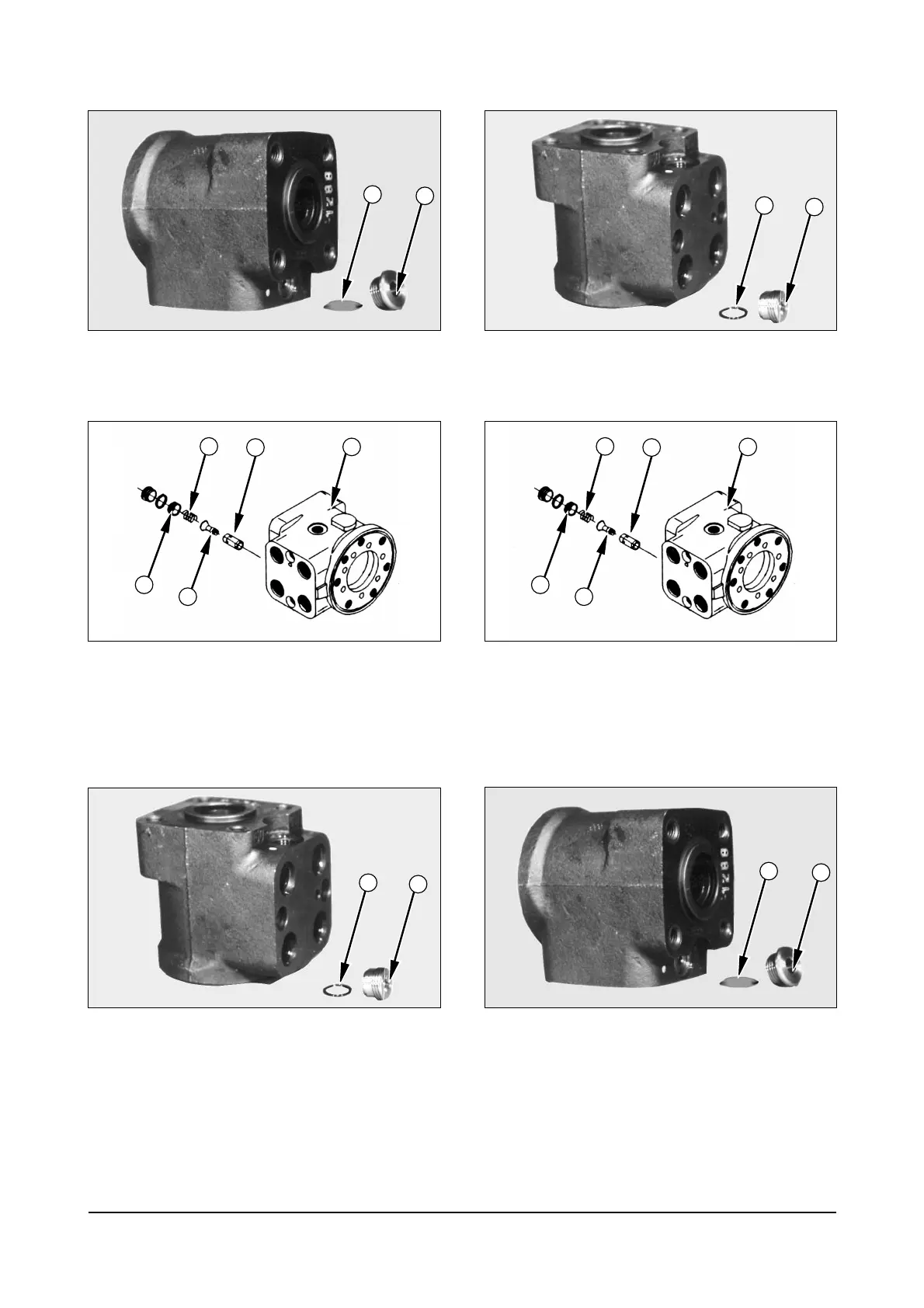

ICCD087P
ICCD088P
ICCD089P
27
2
35
32
31
34
ICCD088P
2
35
32
31
34
28
ICCD087P
27
28
36
37
ICCD089P
36
37
