Vehicle Systems Disassembly & Assembly

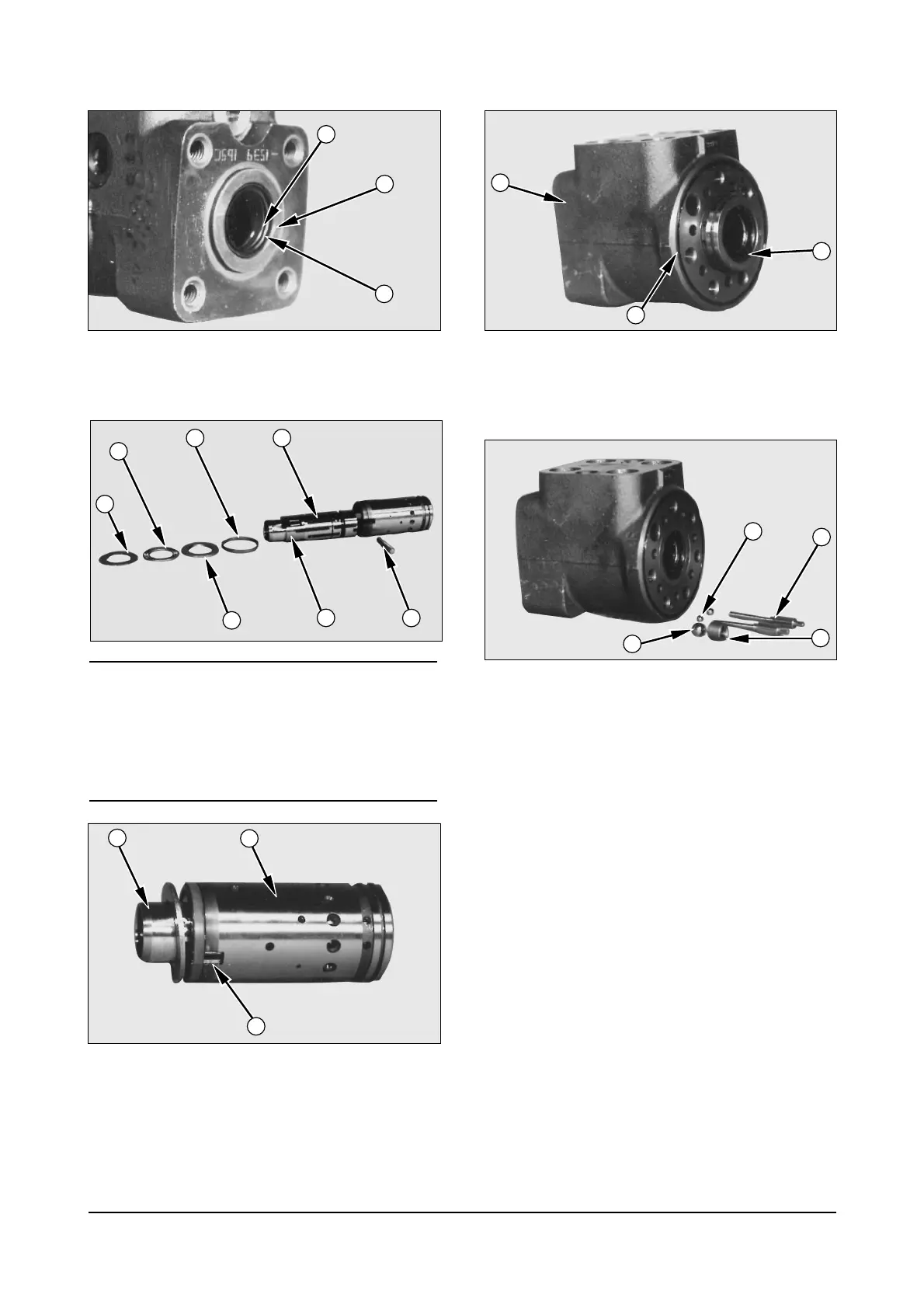

20. Install dust seal ring (26). Install O-ring seal (24)
with king-ring (25) into body.
NOTICE
For purposes of installation, note that springs (23) are
installed in two stacks of three. Make sure the curves
of the two stacks are in contact and positioned in the
center of spool (17). The notched side of springs (23)
must be positioned toward sleeve (16).
21. Install springs (23) into spool (17).
22. Install spool (17) into sleeve (16).
23. Install pin (18), ring (22), two bearing races (19),
(20) and bearing (21) in their original positions on
spool (17).
24. Install sleeve (16) into steering unit body (2).
25. Install O-ring seal (15) into body (2).
26. Install check valve ball (14) and screw (13).
Tighten the screw (13).
27. Install suction valve balls (12) and pins (11) in
their original positions into the steering unit body.
19
ICCD086P
