Daewoo D70S-2 - 2.2.3. Major Structured Parts I

2.2.3. Major Structured Parts I
- 27 -
EJM2010S

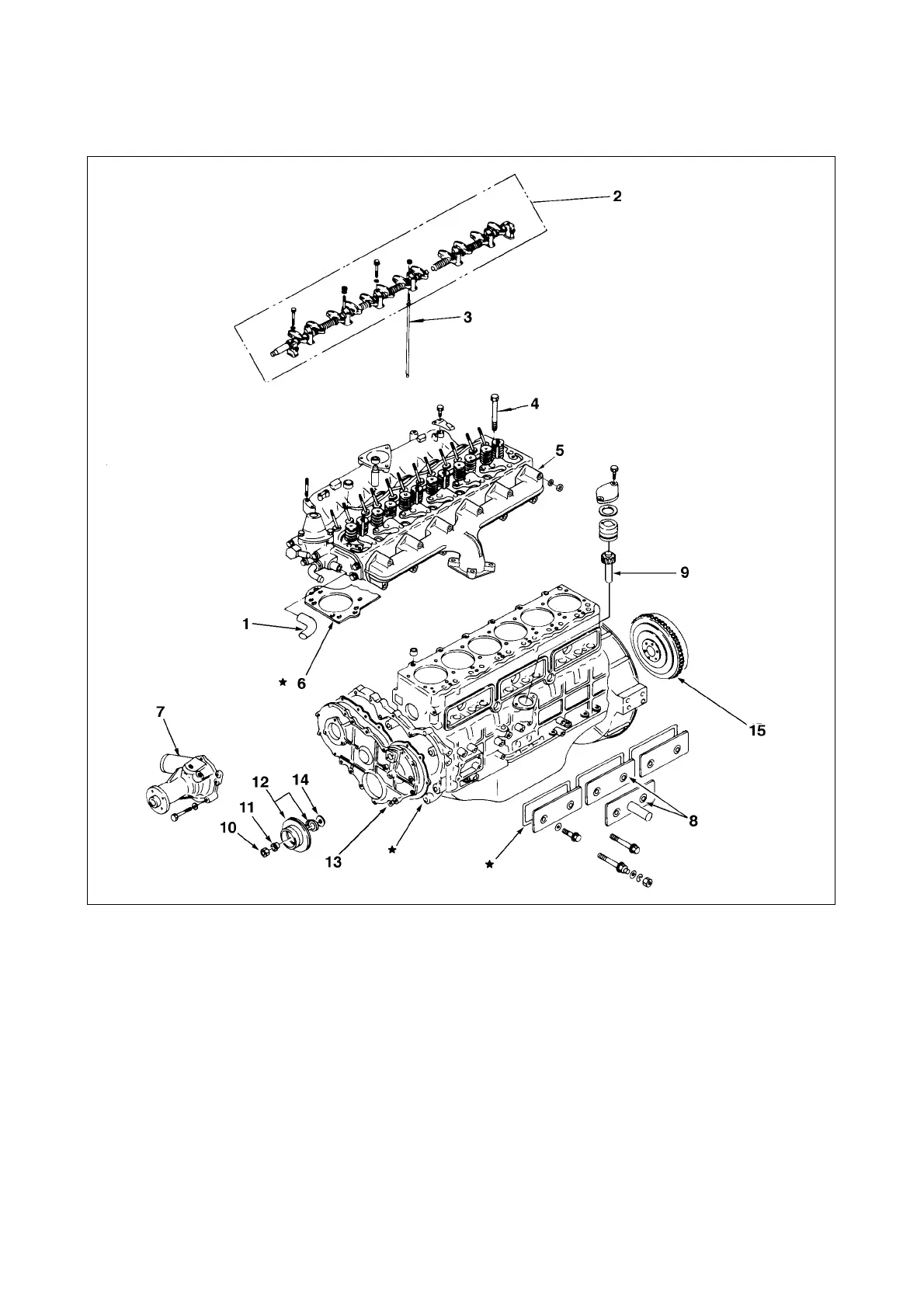

<Diassembly Steps>
1. Rubber hose ; coolant by-pass 9. Oil pump driving pinion
2. Rocker arm shaft assembly 10. Starting handle nut
3. Push rod 11. Taper bushing
4. Cylinder head bolt 12. Crankshaft pulley and dust thrower
5. Cylinder head assembly 13. Timing gear cover
6. Cylinder head gasket 14. Oil thrower
7. Coolant pump assembly 15. Fly wheel
8. Tappet chamber cover
8
: Repair Kit
