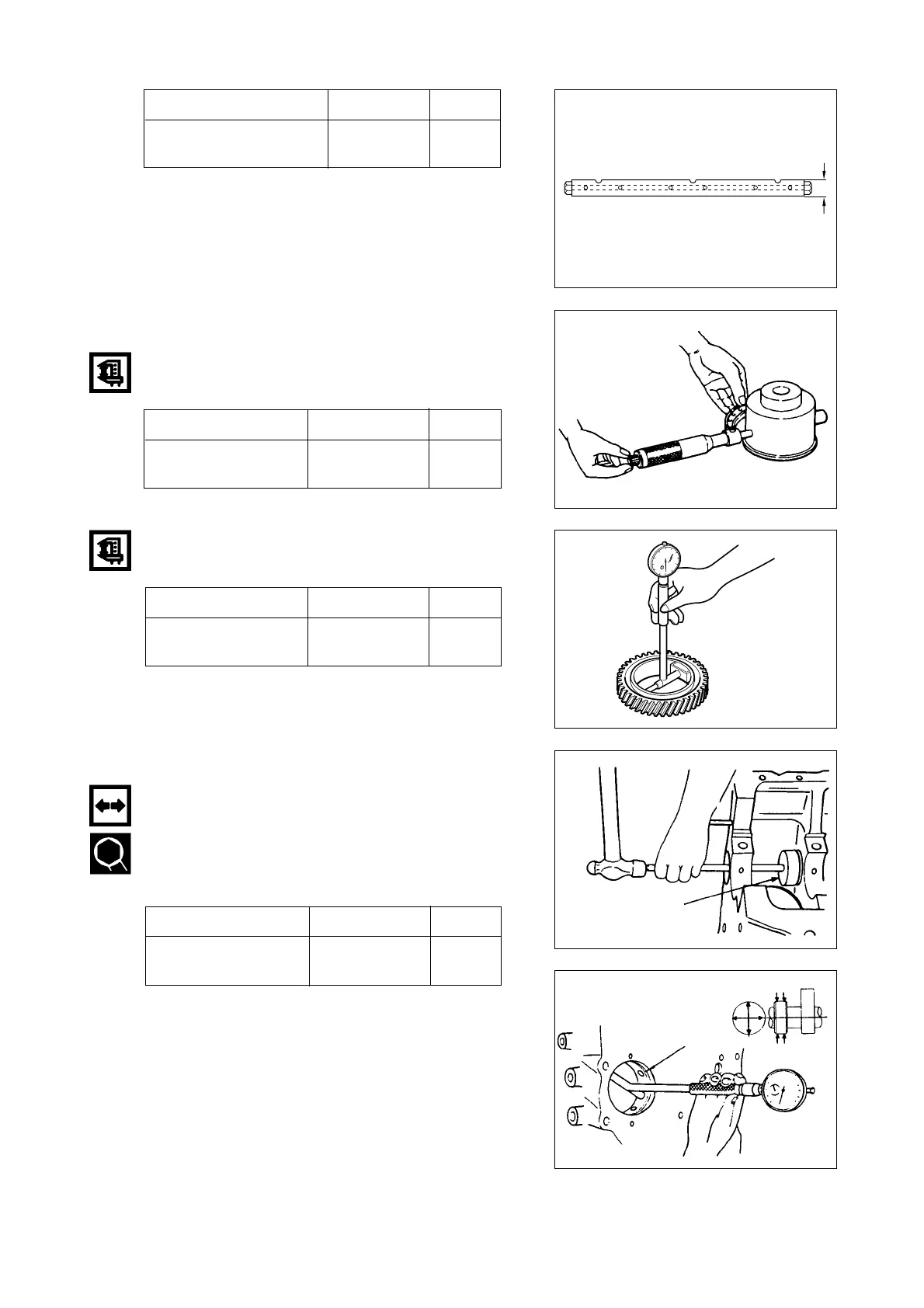

Daewoo D70S-2 - 2.3.7. Idle Gear and Idle Gear Shaft; 2.3.8. Cam Shaft

- 42 -
1) Replace the idler gear shaft if the measured value
is out of the specified limit.
2) Measure the inside diameter of idler gear with the
dial indicator.
1) Use the jig when installing or overhauling cam
shaft.
Camp shaft bearing. Special jig of cam shaft
bearing : 9-8523-1810-0
2) Measure clearance between cam journal and cam
shaft bearing.
EJM2060S
EJM2061I
EJM2062S
EJM2063S
Standard Limit
Outside Diameter of
44.945-44.975 mm 44.9 mm
Idle Gear Shaft
Standard Limit
Clearnance between Idler
0.025-0.085 mm 0.2 mm
Gear and ldler Gear Shaft
Standard Limit
Clearance Between Cam
0.03Ð0.09 mm 0.15 mm
Journaly and Cam Bearing
2.3.7. Idle Gear and Idle Gear Shaft
2.3.8. Cam Shaft
Jig
Cam bearing
3) Check the rocker arm shaft oil port whether alien
substance is in it or not.
Clean the rocker arm shaft oil port with an air if
necessary.
EJM2059I
Standard Limit
Clearance Between Rocker Arm
0.01-0.05 mm 0.2 mm
Bushing and Shaft
