- 48 -
¥

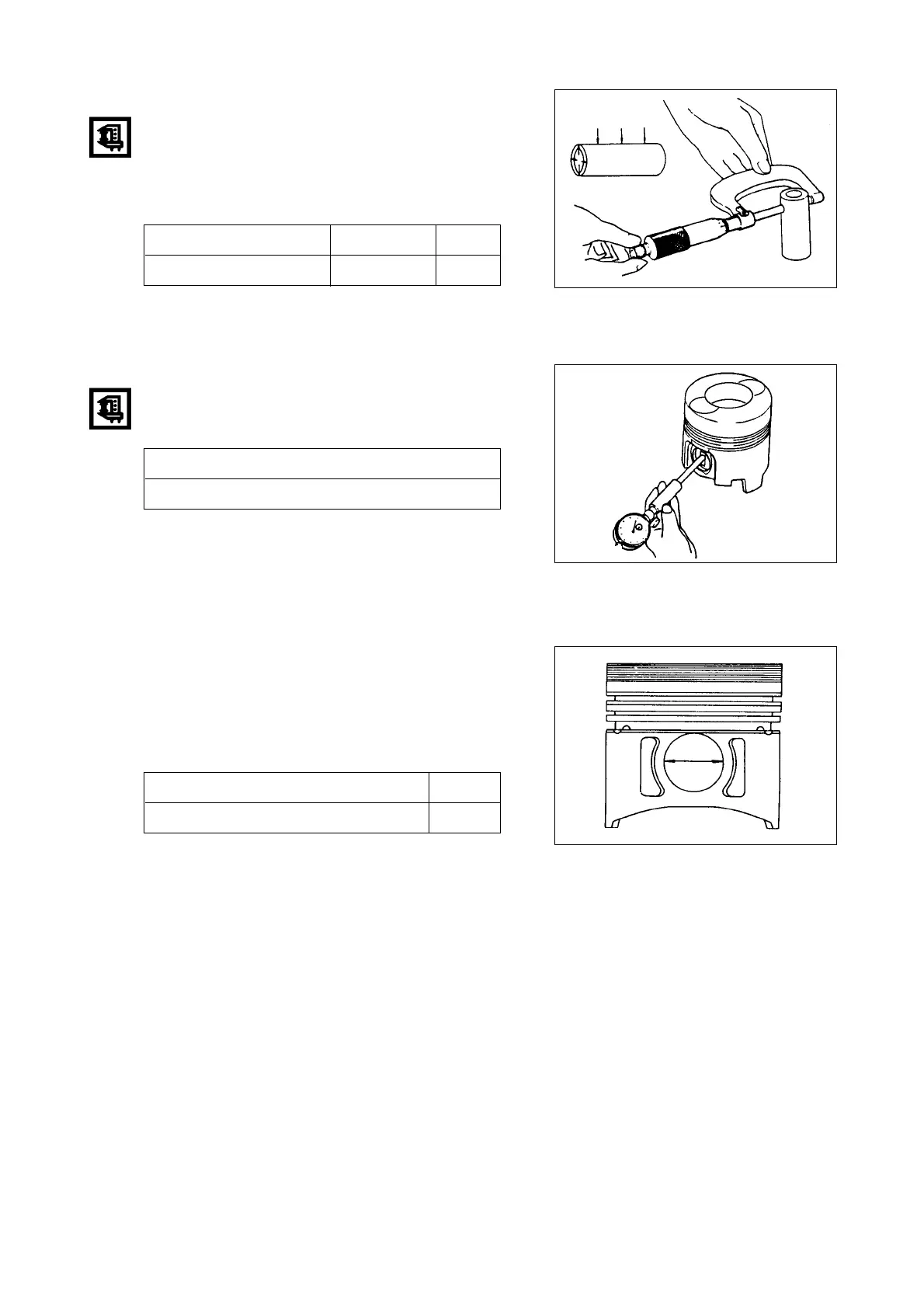

Clearance between Piston Pin and Piston Pin
Hole
Measure the clearance between piston pin and piston
pin hole by measuring pin hole diameter and pin
outside.
EJM2085S
Limit
Clearance between Piston Pin and Piston Pin Hole
0.050 mm
¥
Piston Pin Hole
Measure diameter of the pin hole with inside dial
gauge.
EJM2084S
Standard
36.000-36.008 mm
¥
Piston Pin
Measure the pin outside diameter with micrometer.
Replace the pin if the measured value is out of the
specified limit.
EJM2083S
Standard Limit
Piston Pin Outside Diameter
36.000-36.005 mm
35.95 mm
