• Inspection and repair
Visually Inspect the disassembled parts whether there
are excessive wear or damage.
Use a feeler gauge to measure the clearance
between the oil pump cover (oil pump case) inside
surface and the driven gear.
If the clearance exceeds the specified limit, the drive
gear and/or the oil pump cover must be replaced.
Clearance between oil pump drive gear and inside of
cover is as follows.
Limit of Oil Pump Cover and Oil Pump Drive Gear Clearance
0.18 mm
Axial Clearance of oil Pump Driven Gear and oil
pump body
Reassembly
Reassembly is reverse order of disassembly.

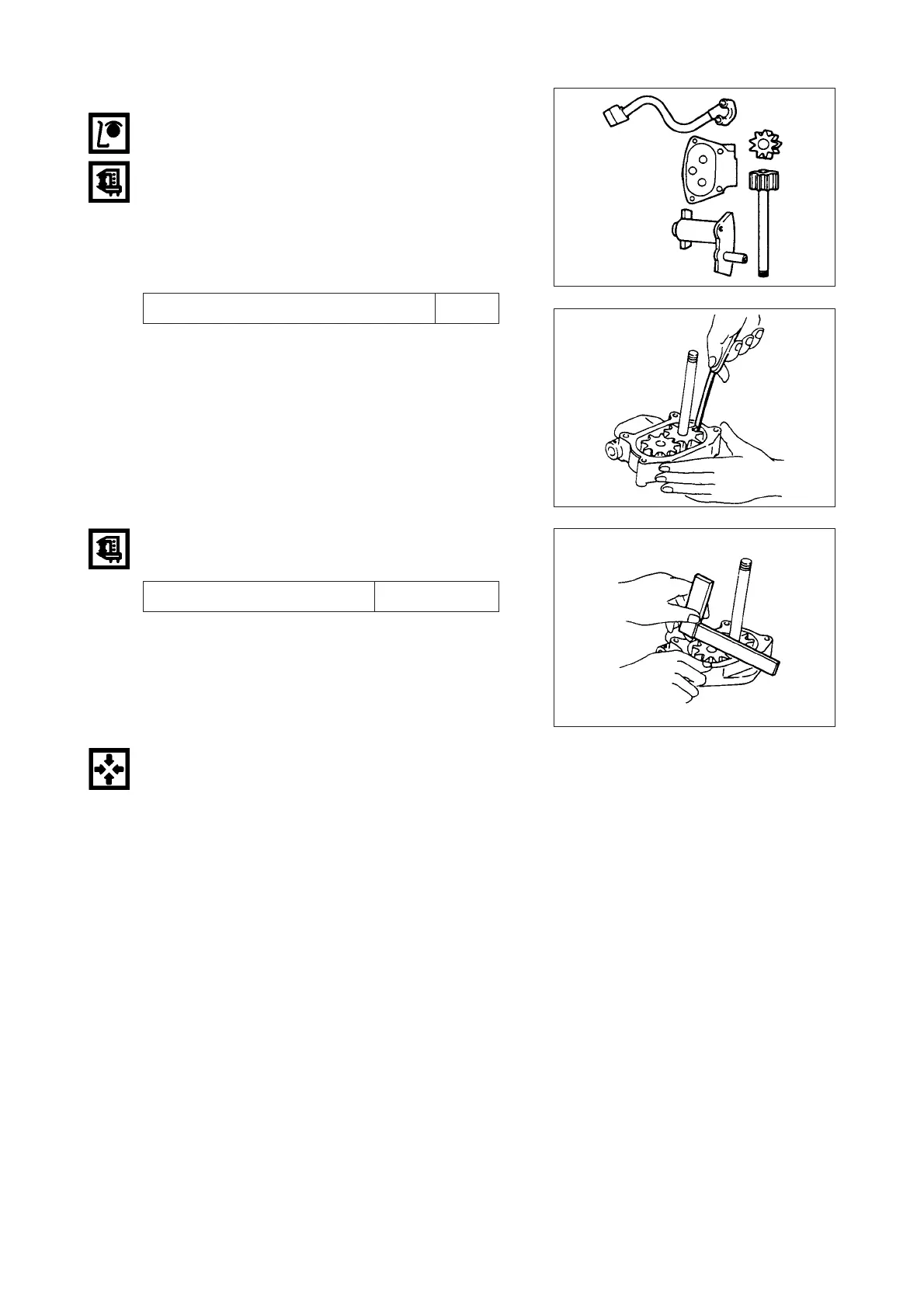

EJM3003S
EJM3004S
EJM3005S
Limit 0.12 mm
