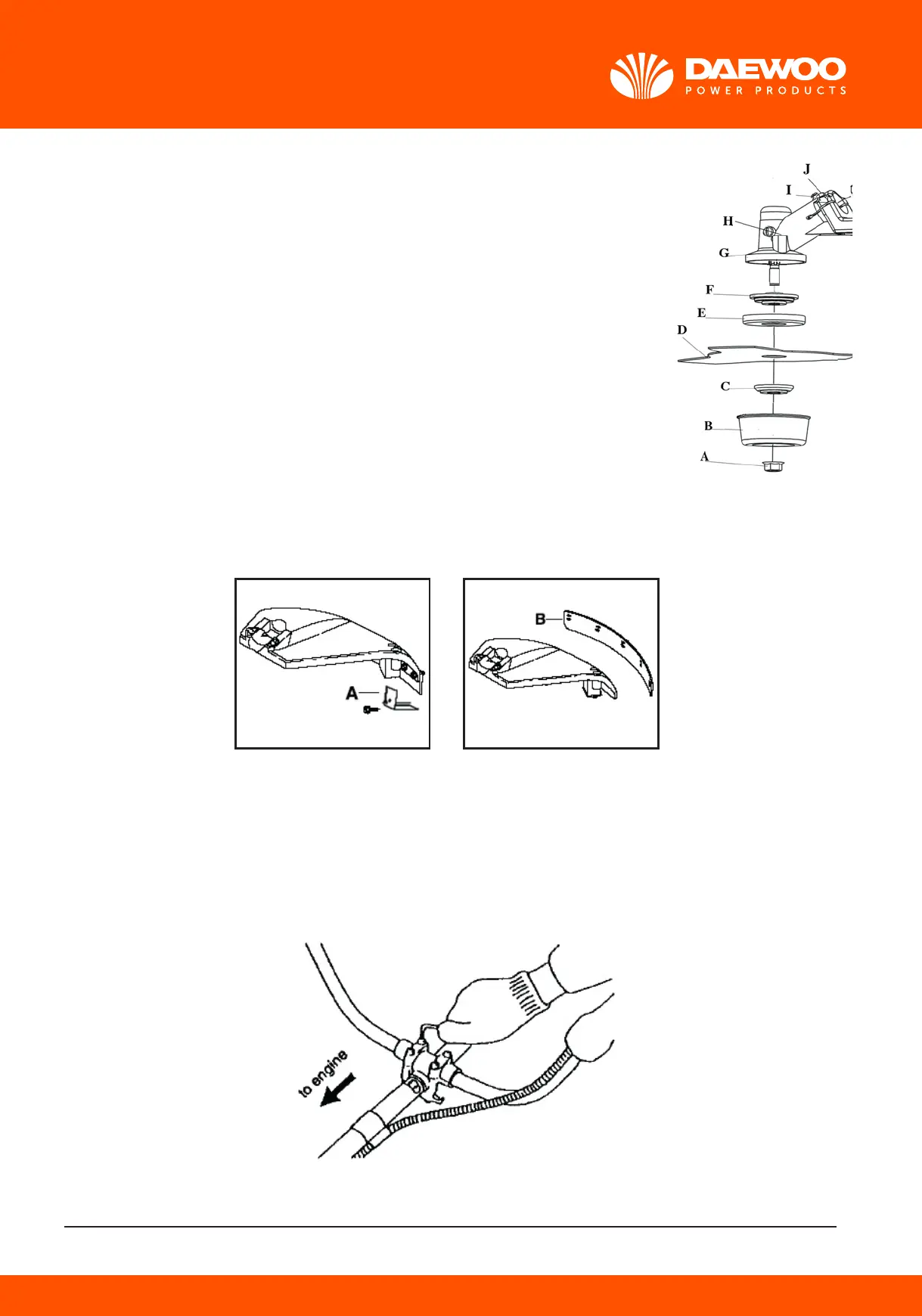

Assembling the blade
Fit the upper plate (F)and adapter housing(E) to the output axle.
Turn the blade axle until one of the holes in the upper plate aligns with the
hole in the gear housing(H).
Insert a locking pin in the hole (H)so that the axle is locked.
Place the blade (D), low plate (C) and plate housing (B)
on the output shaft.
Fit the nut (A).
The tightening torque of the nut is 35-50 Nm (3,5 - 5 kg.m). Use the socket
spanner in the tool kit. Hold the handle of the spanner as close to the blade
guard as possible. The nut is tightened when the spanner is turned
against the direction of rotation (left-hand thread).
Assembling the debris shield
1) Fasten the cord cutter (A) to the shield(C) with a ST3.5 x 12 screw, as shown.
2) Attach the shield extension (B) to the shield bottom
Assembling the U-handle
Insert the U-handle bar into the handle holder, making sure that the hole in the handle holder fit in the handle bar.
After the handle bar in place, tighten the four bolts. Note: Be sure the bolts are tight, but not overtight.
