DISASSEMBLY AND REASSEMBLY
Stop operation of the air conditioner and remove the power cord before repairing the unit
Indoor unit

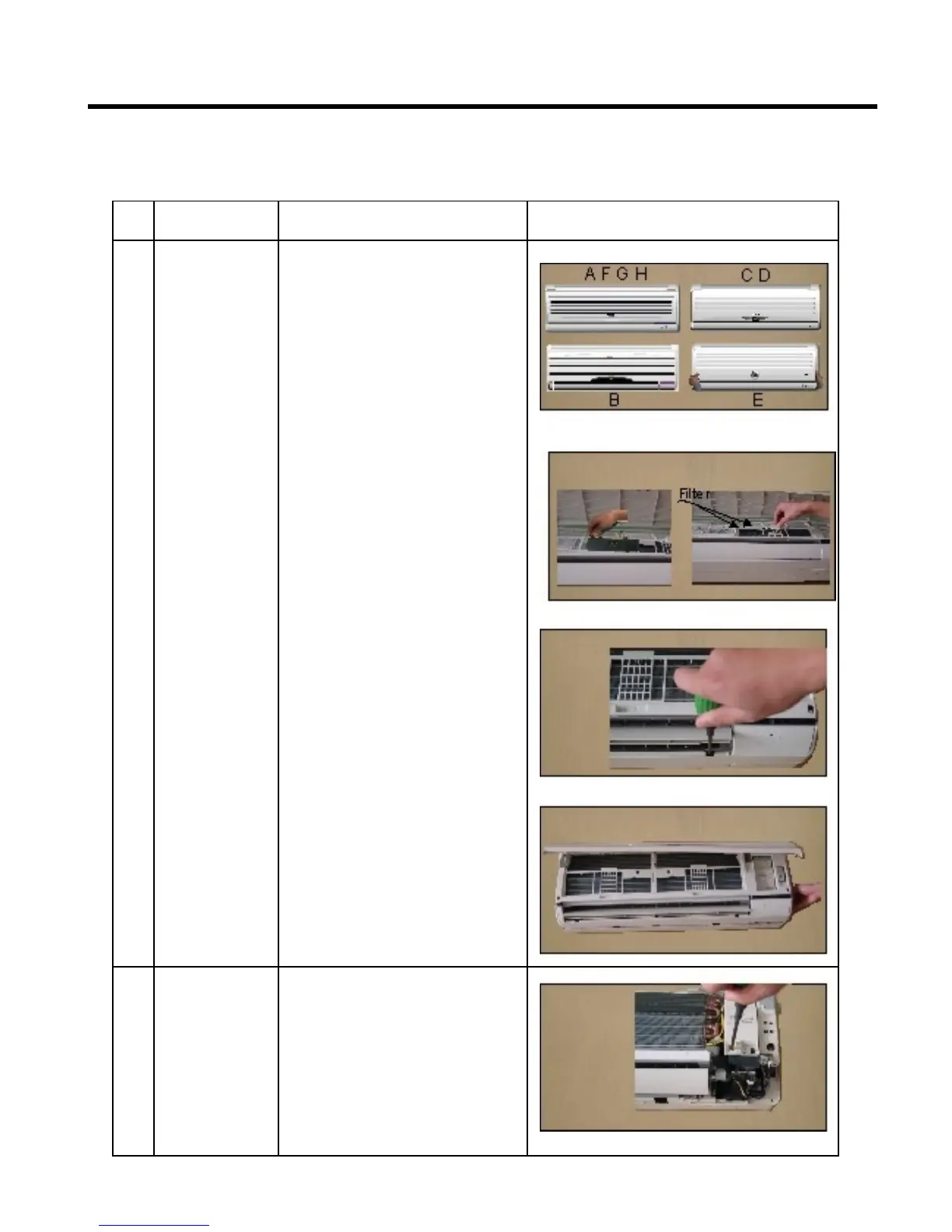

No Parts Procedure Remark
1
Front grille
1.Stop the air conditioner
operation and block the
main power.
2.Contract the second finger
to the left ,and right handle
and pull to open the inlet
grille.
3.Draw away signal line. (only
for B,C,D,E).
6.Put hands at the two ruts
of the body, then pull the
front panel out .
5. Loosen two fixing screw of
front grille.
Model :DSC-097L DSC-127L
1.Loosen the srew of the
electrical box cover.
2
Electrical
parts
4.Take the left and right filter
out.
99
To Next Page
