Daewoo DTC Series User Manual

19

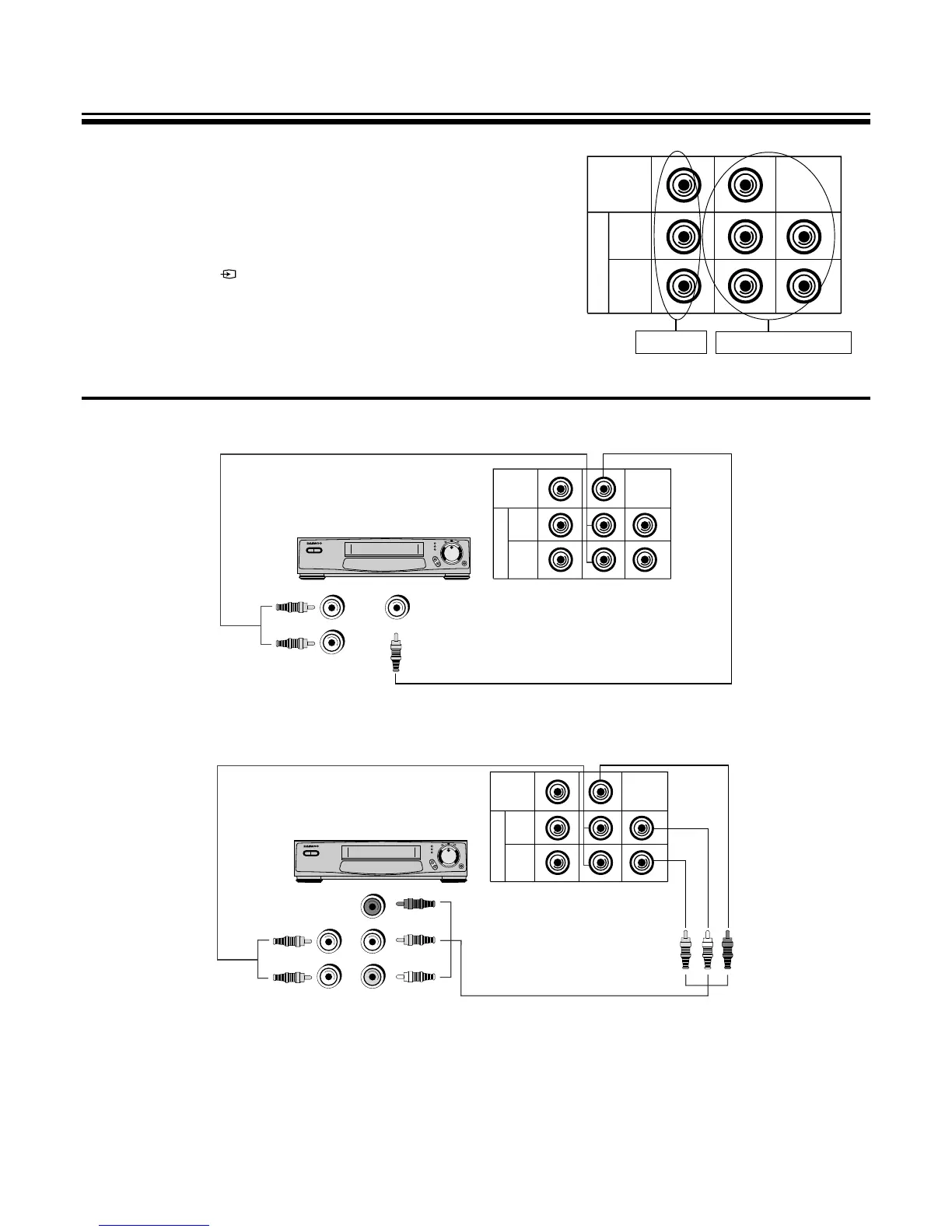

CONNECTING DVD PLAYER/BS RECEIVER
1. Prepare the connective plug for picture
/
sound.
2. Connect the DVD-Y output terminal of DVD player with the
DVD-Y input terminal of TV.
3. Connect the DVD-Cr, Cb output terminal of DVD player
with the DVD-Cr, Cb input terminal of TV.
4. Press the AV( ) button and select DVD mode
DVD MODE
1. DVD1(VIDEO) : When DVD Player Output is not Y-Cb-Cr output, but Video(Composite) signal.
2. DVD2 (Y Cb Cr) : In case of component output
DVD-Y
Cb
Cr
VIDEO
R
L
(MONO)
A
U
D
I
O
TV OUT
DVD TERMINAL
OUT
LEFT
Y
Cb
Cr
Y
Cb
Cr
RIGHT
SOUND OUTPUT PICTURE OUTPUT
DVD IN
DVD-Y
Cb
Cr
VIDEO
R
L
(MONO)
A
U
D
I
O
OUT
VIDEO
RIGHT
DVD IN
DVD-Y
Cb
Cr
VIDEO
R
L
(MONO)
A
U
D
I
O
LEFT

Daewoo DTC Series Specifications

General

Display Type	LCD
Aspect Ratio	16:9
Tuner	Analog/Digital
Remote Control	Yes
Power Source	AC 220-240V, 50/60Hz
TV System	NTSC
