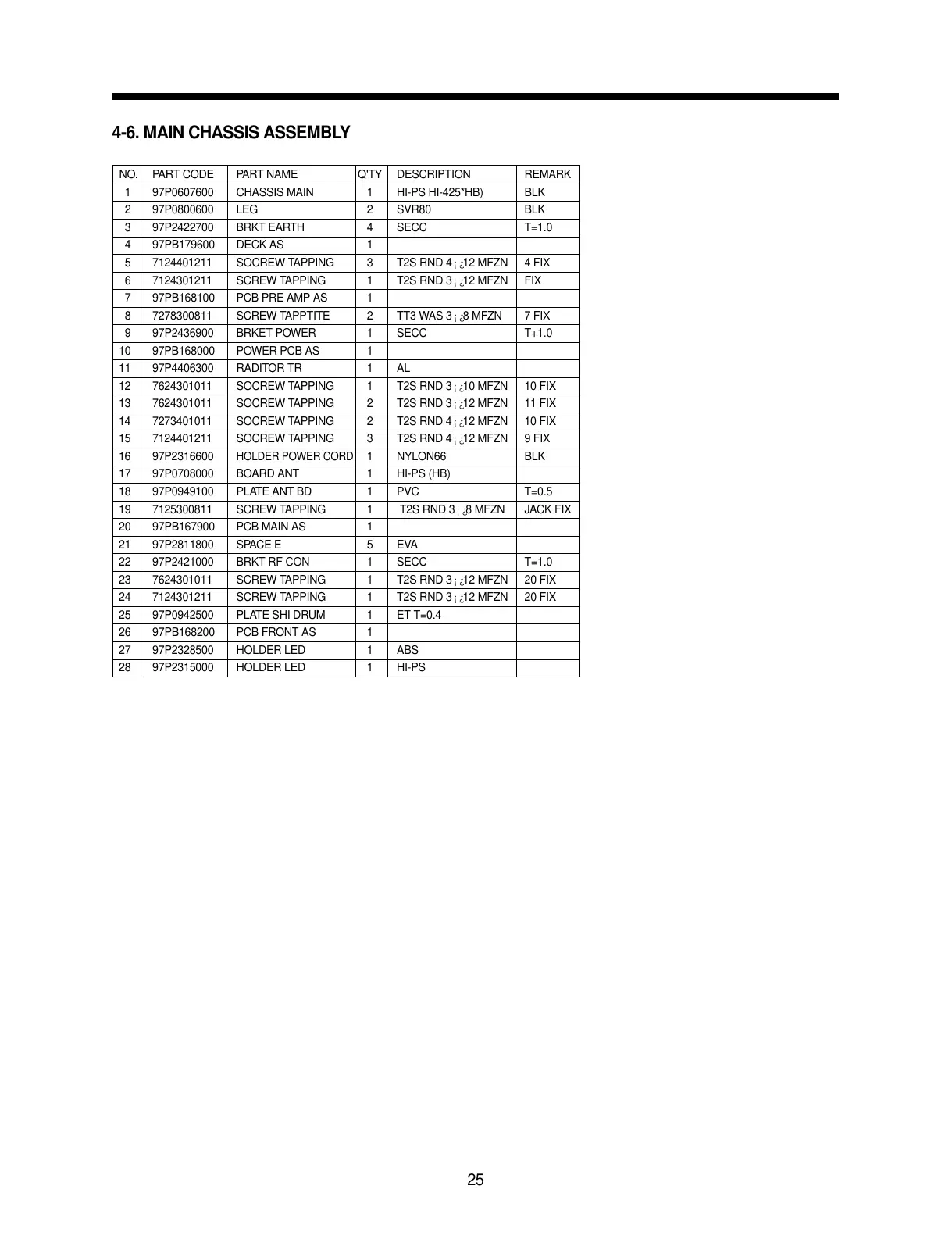

4-6. MAIN CHASSIS ASSEMBLY
25
NO. PART CODE PART NAME Q'TY DESCRIPTION REMARK
1 97P0607600 CHASSIS MAIN 1 HI-PS HI-425*HB) BLK
2 97P0800600 LEG 2 SVR80 BLK
3 97P2422700 BRKT EARTH 4 SECC T=1.0
4 97PB179600 DECK AS 1
5 7124401211 SOCREW TAPPING 3 T2S RND 4¡¿12 MFZN 4 FIX
6 7124301211 SCREW TAPPING 1 T2S RND 3¡¿12 MFZN FIX
7 97PB168100 PCB PRE AMP AS 1
8 7278300811 SCREW TAPPTITE 2 TT3 WAS 3¡¿8 MFZN 7 FIX
9 97P2436900 BRKET POWER 1 SECC T+1.0
10 97PB168000 POWER PCB AS 1
11 97P4406300 RADITOR TR 1 AL
12 7624301011 SOCREW TAPPING 1 T2S RND 3¡¿10 MFZN 10 FIX
13 7624301011 SOCREW TAPPING 2 T2S RND 3¡¿12 MFZN 11 FIX
14 7273401011 SOCREW TAPPING 2 T2S RND 4¡¿12 MFZN 10 FIX
15 7124401211 SOCREW TAPPING 3 T2S RND 4¡¿12 MFZN 9 FIX
16 97P2316600
HOLDER POWER CORD
1 NYLON66 BLK
17 97P0708000 BOARD ANT 1 HI-PS (HB)
18 97P0949100 PLATE ANT BD 1 PVC T=0.5
19 7125300811 SCREW TAPPING 1 T2S RND 3¡¿8 MFZN JACK FIX
20 97PB167900 PCB MAIN AS 1
21 97P2811800 SPACE E 5 EVA
22 97P2421000 BRKT RF CON 1 SECC T=1.0
23 7624301011 SCREW TAPPING 1 T2S RND 3¡¿12 MFZN 20 FIX
24 7124301211 SCREW TAPPING 1 T2S RND 3¡¿12 MFZN 20 FIX
25 97P0942500 PLATE SHI DRUM 1 ET T=0.4
26 97PB168200 PCB FRONT AS 1
27 97P2328500 HOLDER LED 1 ABS
28 97P2315000 HOLDER LED 1 HI-PS
To Next Page
