Daewoo DW-3610 Service Manual

9
HOW TO DISASSEMBLE
1.Replacing motor for spin and wash.
a)Remove a screws on back cover. (Fig. 1)
c)Remove link brake and assy brake wire (Fig. 3)
e)Remove ten screws on frange of base (Fig. 5)
b)Remove one bolt on spin basket and remove spin
basket. (Fig. 2)
d) Remove a belt connecting the washing motor and the
pulley. (Fig. 4)
f) Remove motor for spin. (Fig. 6)

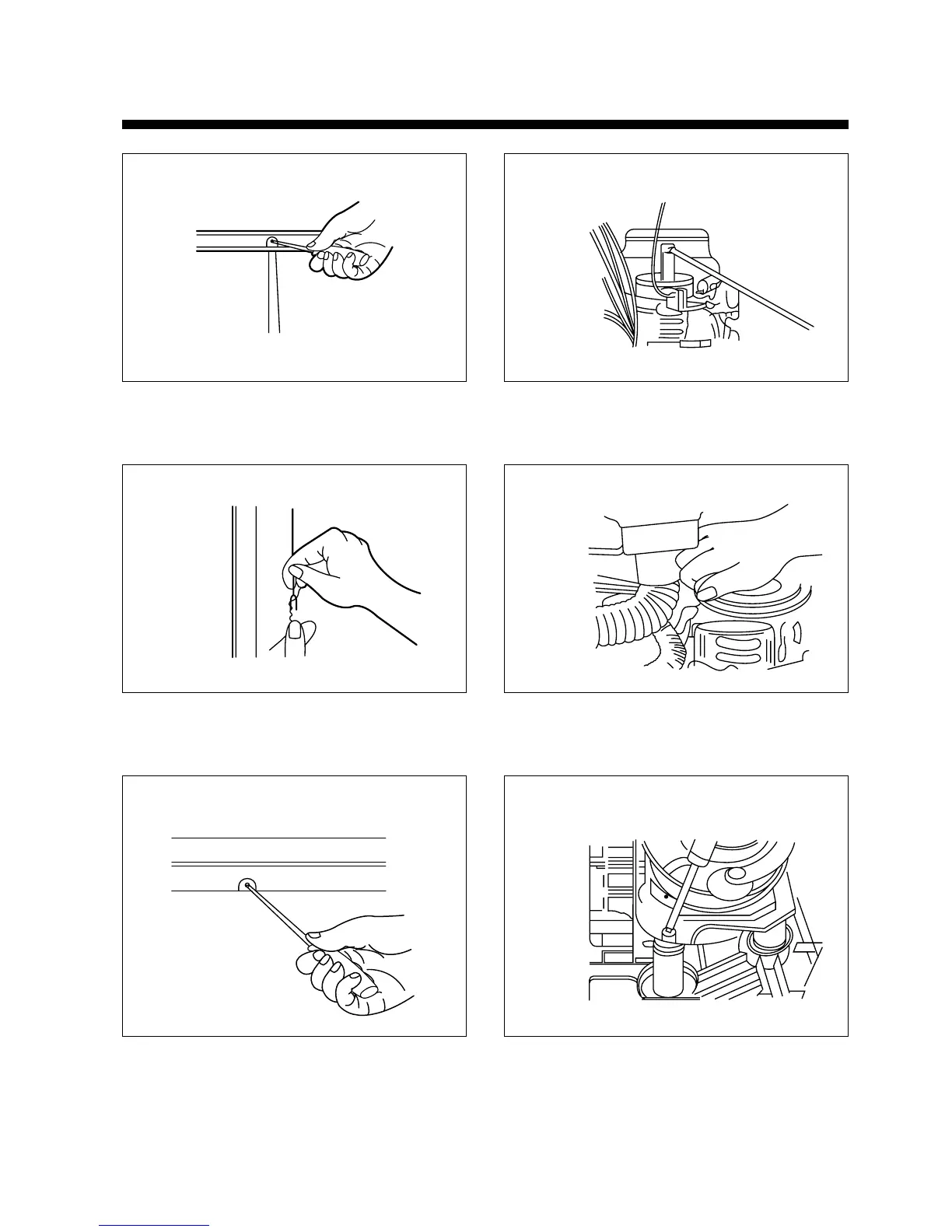

Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5 Fig. 6
