10

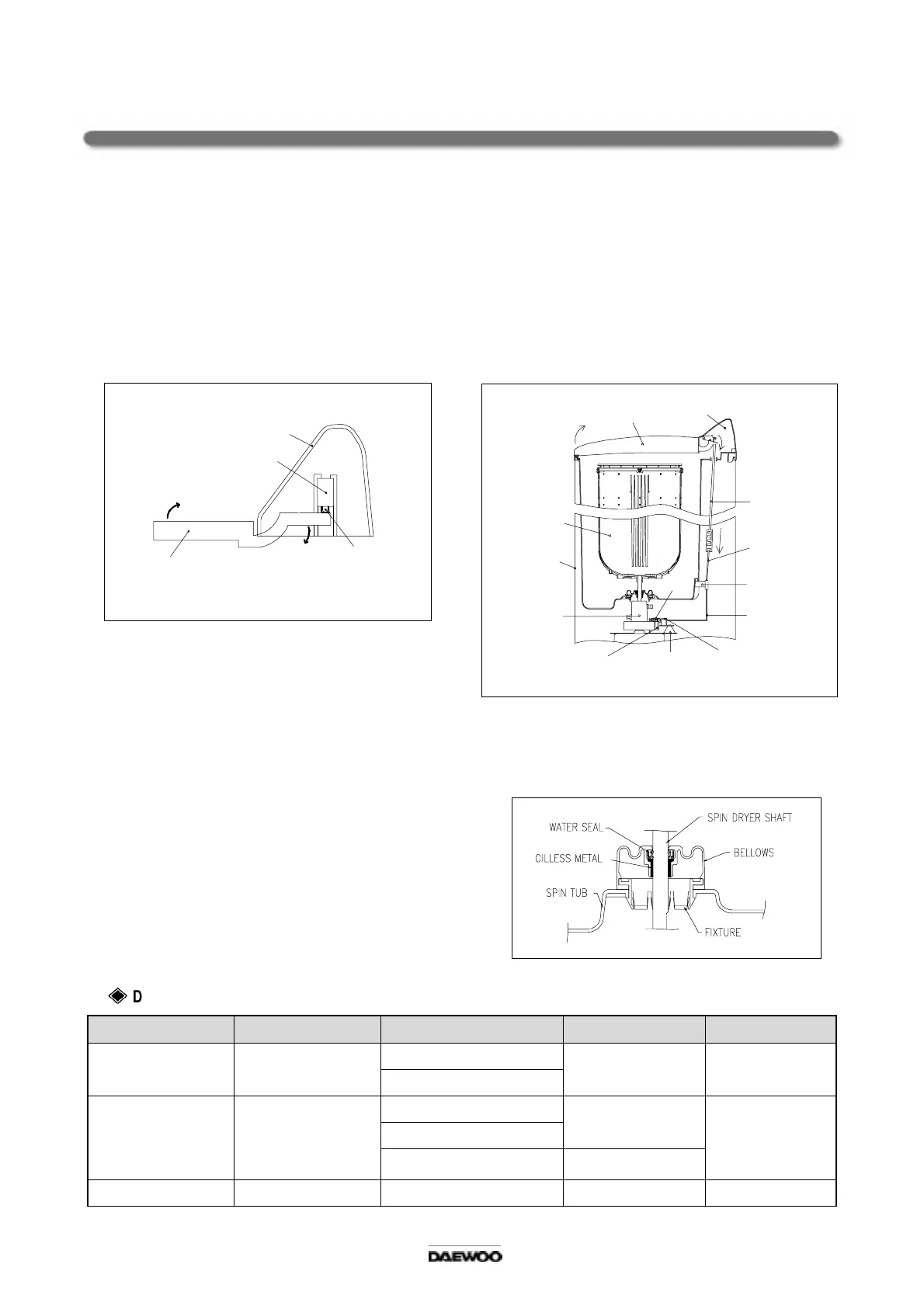

Door Switch
When the door spin o is opened during spin drying the lever of the door switch which sites atop the
door spin o falls off the contact, and cuts off the power going into the spin motor.
Brake System
When the door spin is opened, the link brake and brake wire is loosened.
And then the brake band touches the drum coupling assembly and stops the spin dryer as it is pulled by
the spring in the brake fix plate assembly.
Brake Band Gap Control
The band brake works best when the gap between it and the drum coupling is about 2mm when the
door spin is closed. The spin dryer stops slowly if the gap is too large.
SPIN BELLOWS ASS'Y
The wrinkled rubber device below the
spindryer is called spin bellows assembly.
It has a waterseal and an oilless metal inside to
prevent leakage and so that spin dryer may work
smoothly.
DRAIN PUMP OPERATION (Pump Model Only)
Wash Timer Spin Timer Drain Selector Position Drain S/W Drain Pump
ON or OFF ON or OFF
WASH/RINSE
COM-NC
Operating
DRAIN
ON or OFF
ON
WASH/RINSE
COM-NC
Operating
DRAIN
OFF COM-NO
ON or OFF
OFF OFF
COM-NO
Not Operating
DOOR SPIN O
DOOR SWITCH
PANEL B
DOOR SWITCH
LEVER
LINK BRAKE
BRAKE WIRE
(INNER WIRE)
WIRE GUIDE
BRAKE WIRE
(OUTER WIRE)
LEVER BRAKE
BRAKE FIX
PLATE
BRAKE BAND
DRUM
COUPLING
BASE
SPIN DRYER
PANEL B
DOOR SPIN O
SPRING
