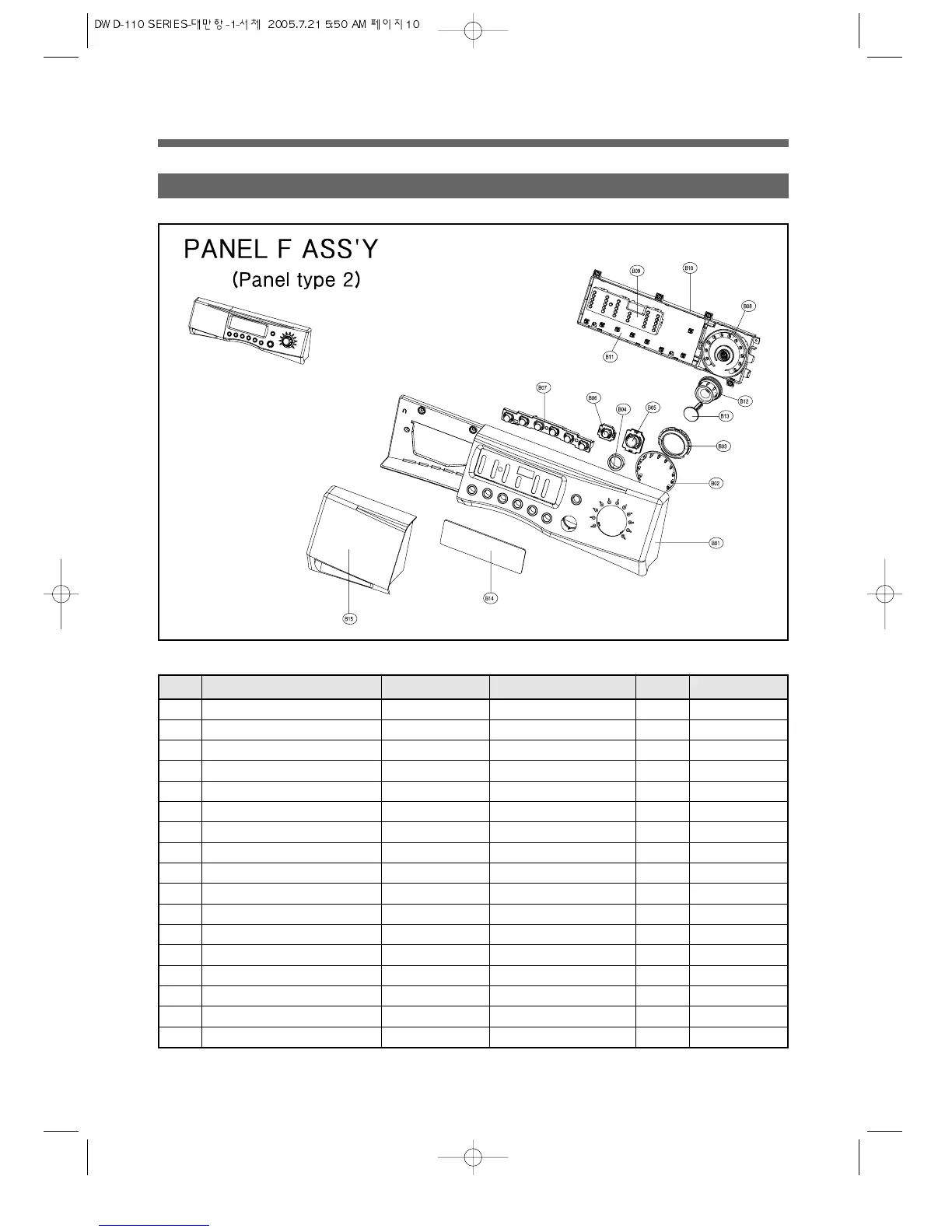

2. THE EXPLODED VIEW OF PANEL F ASSEMBLY(TYPE 2, DWD-1221** / DWD-
No. PARTS NAME PARTS CODE DESCRIPTION UNITS REMARK
B01 PANEL F 3614282300 ABS 1
B02 WINDOW LED COURSE 3615502900 ABS(BK-8410AT) 1
B03 DECORATOR DIAL 3613049400 ABS 1
B04 DECOATOR BUTTON POWER 3611631100 ABS 1
B05 BUTTON POWER 3616603100 ABS 1
B06 BUTTON DOOR OPEN 361603200 ABS 1
B07 BUTTON FUNCTION 3616603000 ABS 1
SCREW TAPPING 7121301208 T2S PAN 3X12 SUS 3
B08 HOLDER LED COURSE 3613049300 ABS 1
B09 HOLDER LED CUSTOM 3613049200 ABS 1
B10 CASE PCB F 3611139600 HIPS 1
SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN 7
B11 PCB PRPSSW2D10 DWD-E1221RT 1
B12 BUTTON DIAL OUT 3616603400 ABS 1
B13 BUTTON DIAL IN 3616603300 ABS 1
B14 WINDOW DISPLAY 3615502800 ABS(BK-8410AT) 1
B15 CASE HANDLE 3611139700 ABS 1 INLETBOX AS
