8. TROUBLE SHOOTING REGARDING DRAIN

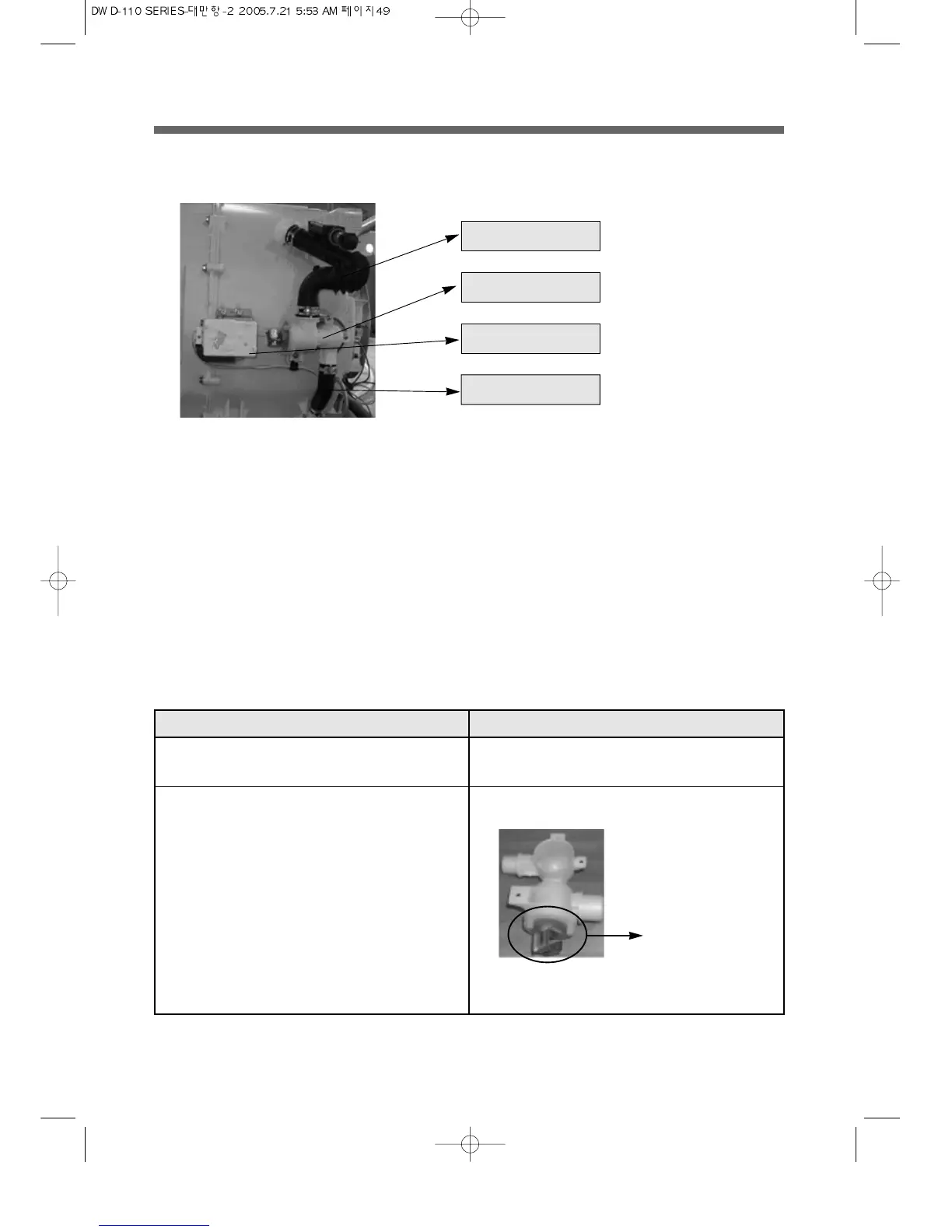

1. Drain Part Picture
2. Operating Sequence
DRAIN MOTOR connects drain passage by pulling LINK VALVE DRAIN. If the DRAIN MOTOR stops working,
LINK VALVE DRAIN returns to initial state by spring.
3. Check point when connecting hose drain O
①Keep the hose straight.
②Keep the end of hose not to dip in water.
4. Checking Methods
◎Situation : ＊"OE" is shown on PCB.
＊Not finishing drain during 10 min.
＊The water level can not reach to RESET POINT during 10 min of drain.
HOSE DRAIN I
HOUSING VALVE
DRAIN MOTOR
VALVE AIR AS
Checking Methods
＊Check the hose drain O condition; twisted or frozen.
＊Check the hose drain O condition, blocked.
＊DRAIN MOTOR is broken.
Replacing methods
＊replace HOSE DRAIN O
＊clean the inside of COVER VALVE.
＊ replace DRAIN MOTOR
disassemble COVER
VALVE by turning and
pulling
To Next Page
