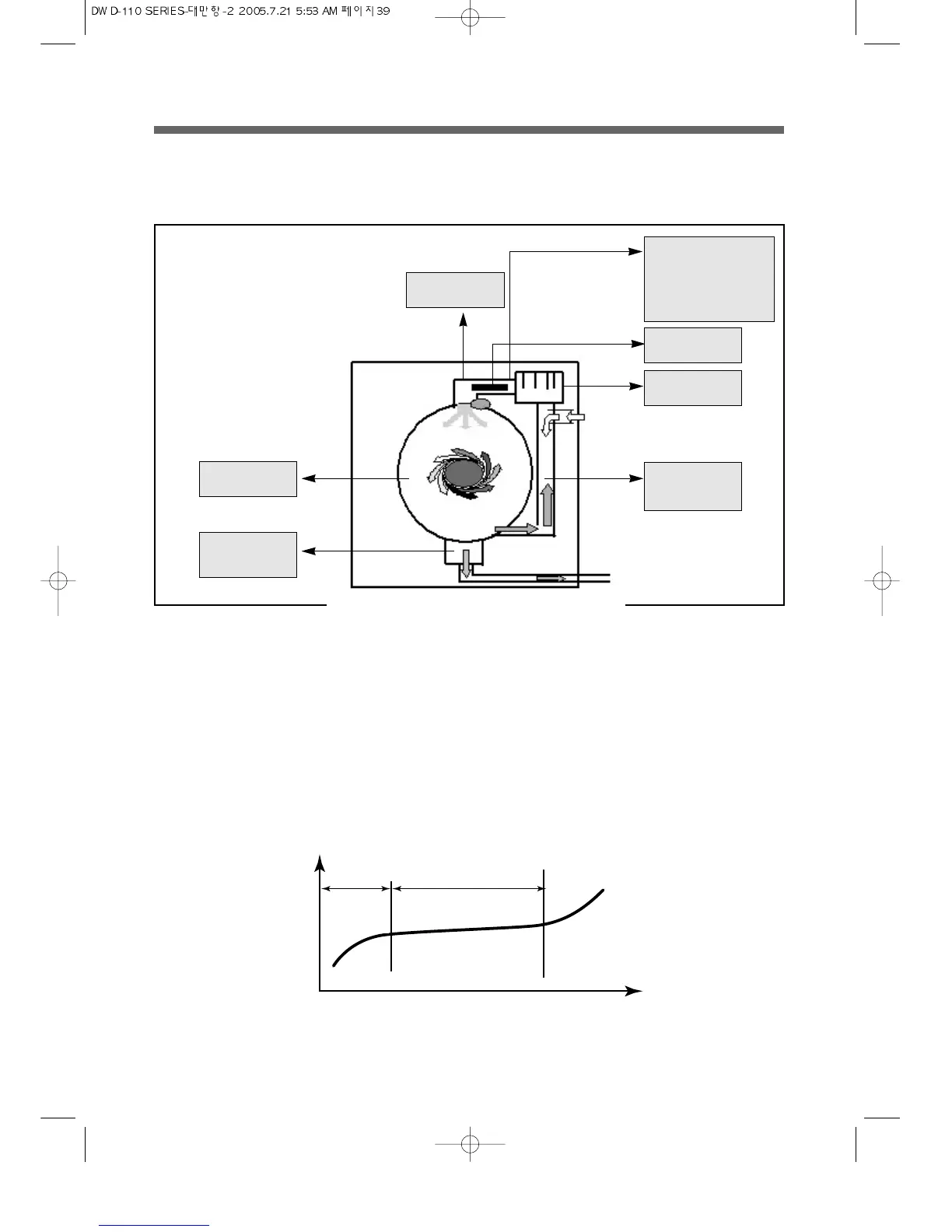

2) DRY FUNCTION DIAGRAM
3) TEMP-TIME GRAPH DURING DRY CYCLE
While rotating DRUM, DRY HEATER applice heat to air and FAN blows it into DRUM evaporating water in the laundry.
·Evaporated water is sucked into CONDENSING DUCT, and condensed in DUCT contacting WATER SUPPLY (condensed water
is extracted through DRAIN HOUSING).
·Dry function is performed by continuous repetition of evaporating and condensing circulation as above.
DRY DUCT
T : Thermistor
(CONTROL
HEATER’S
TEMPERATURE )
HEATER
FAN MOTOR
CONDENSING
DUCT
DRUM
DRAIN
HOUSING
