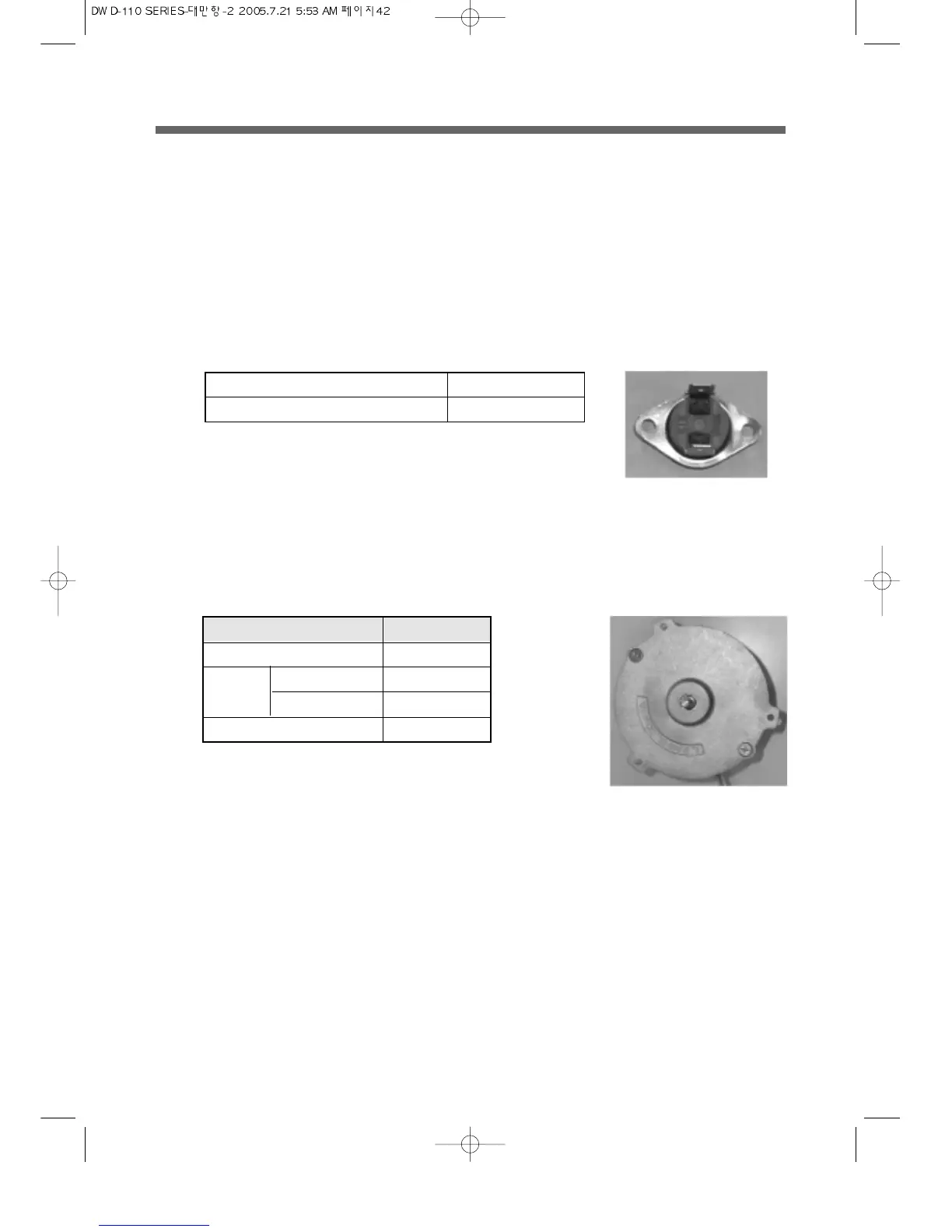

SWITCH THERMOSTAT(BIMETAL)
function : control the duct as remperature, if the temp reached over 150℃, all power supply will be cut. and if the temp go down
120℃the power will be ON.
protecting overheating by cutting off heater power supply if the temperature rises over 150℃, and reoperating heater
by connecting heater power supply if the temperature falls under 120℃.
◎OPERATING TEMPERATURE ◎PICTURE
◈◈
UNIT FAN MOTOR
function : circulating the inside air during dry process.
◎SPEC ◎PICTURE
◎FAILURE MODE :＊E3 shown : FAN MOTOR cannot work.
◎CHECKING METHOD : Check the FAN MOTOR is short, and replace with new one.
OPEN TEMPERATURE(OFF) 150℃±5℃
CLOSE TEMPERATURE(ON) 120℃±5℃
ITEMS SPEC
RATING VOLTAGE 24V
RPM
MOTOR 3700±10%
DUCT FAN AS 1900±10%
ROTAING DIRECTION CW
