5. EXPLODE VIEW AND PARTS LIST
14

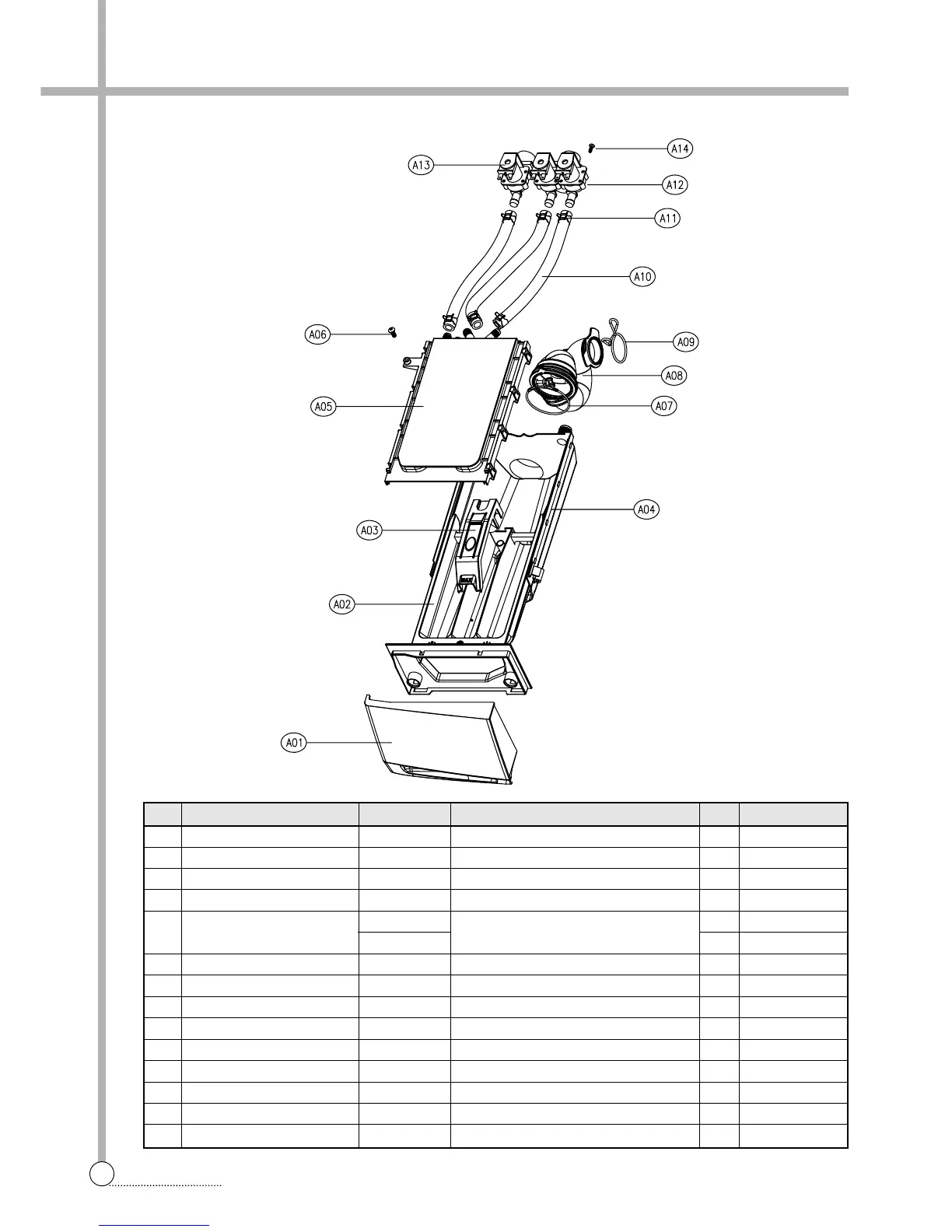

EXPLODE VIEW AND PARTS LIST
■ BOX INLET AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
A01 HANDLE CASE 3612608900 ABS,F1221N
A02 CASE DETERGENT 3611140300 PP 1
A03 CAP SOFTENER 3610916600 PP 1
A04 BOX INLET 3610526500 PP 1
A05 NOZZLE AS
3618103510
NOZZLE TOP + NOZZLE UNDER
1 COLD
3618103500 1 COLD+HOT
A06 SCREW TAPPING 7122402011 T2S TRS 4X20 MFZN 1
A07 CLAMP AS 3611203200 ID=60,WIRE+GUIDE+BOLT+NUT 1
A08 HOSE INLET 3613267200 EPDM U-TRAP 1
A09 CLAMP HOSE I 3611201400 HSW3, D2.6, MFZN, ID=38 1
A10 HOSE WATER SUPPLY 3613270900 EPDM,ID=9.5,OD=14.5,L=225 2(3) COLD(HOT)
A11 CLAMP HOSE 3611205800 ID=13.8, W=10.0, T=0.9 4(6) COLD(HOT)
A12 VALVE INLET AS 3615415800 100-130 2-WAY PP/BRACKET 1 COLD
A13 VALVE INLET AS 3615415700 2100-130 1-WAY HOT PP-BRACKET 1 HOT
A14 SCREW TAPTITE 7272400811 TT3 TRS 4X8 MFZN 2(4) COLD(HOT)
