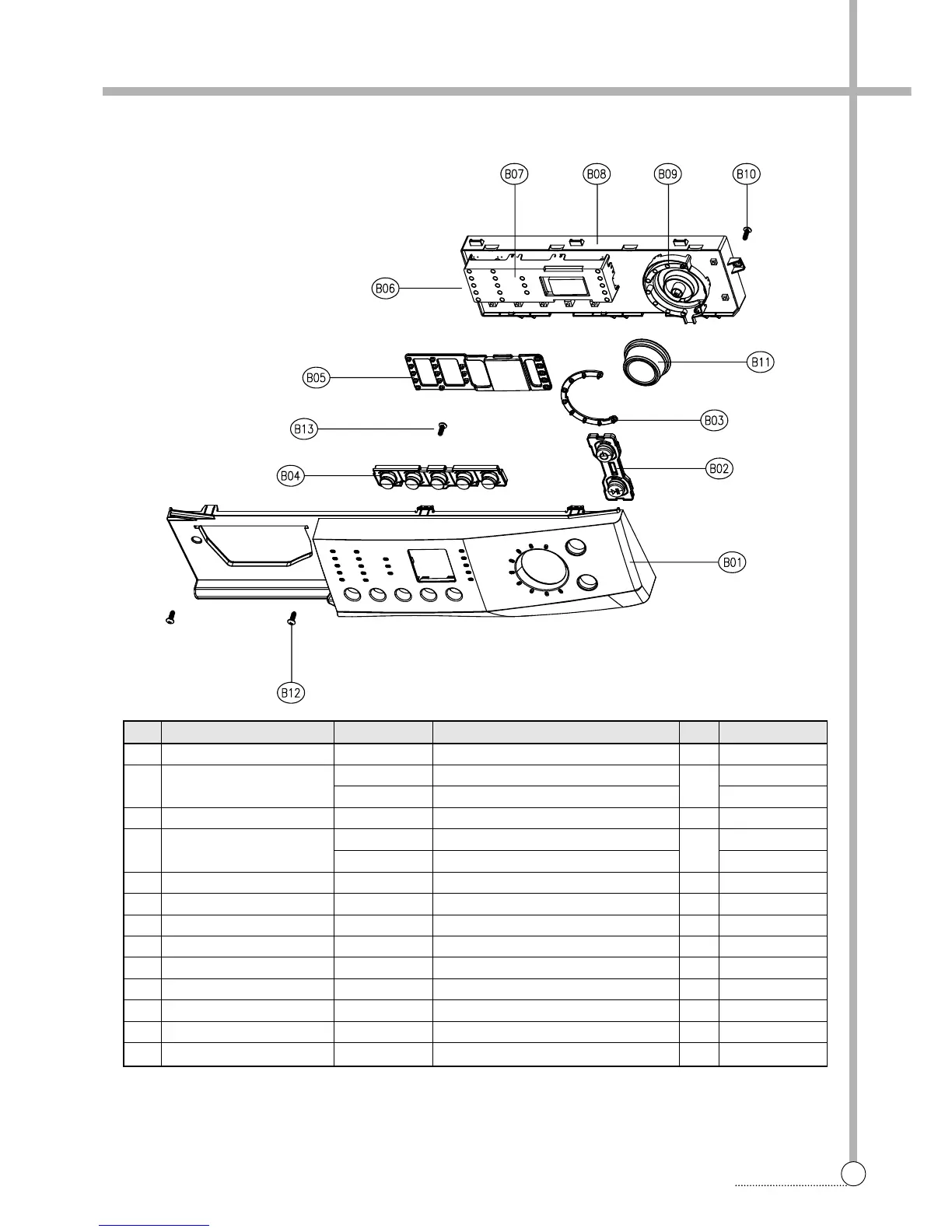

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
B01 PANEL F 3614284500 ABS 1
B02 BUTTON POWER
3616603600 ABS
1
DWD-FD1411
3616603620 ABS + AL COATING DWD-FD1412
B03 WINDOW DIAL 3615503100 ABS-TR 1
B04 BUTTON SELECT
3616603500 ABS
1
DWD-FD1411
3616605320 ABS + AL COATING DWD-FD1412
B05 WINDOW DISPLAY AS 3615503020 ABS-TR + STICKER 1
B06 PCB AS PRPSSWFD14
DWD-FD141 SERIES NON-EC HOT V/V BB
1
B07 HOLDER LED 3613049600 ABS 1
B08 CASE PCB 3611143100 HIPS 1
B09 HOLDER DIAL 3613049700 ABS 1
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 KNOB DIAL AS 3613405000 ABS, AL COATING 1
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2
To Next Page
