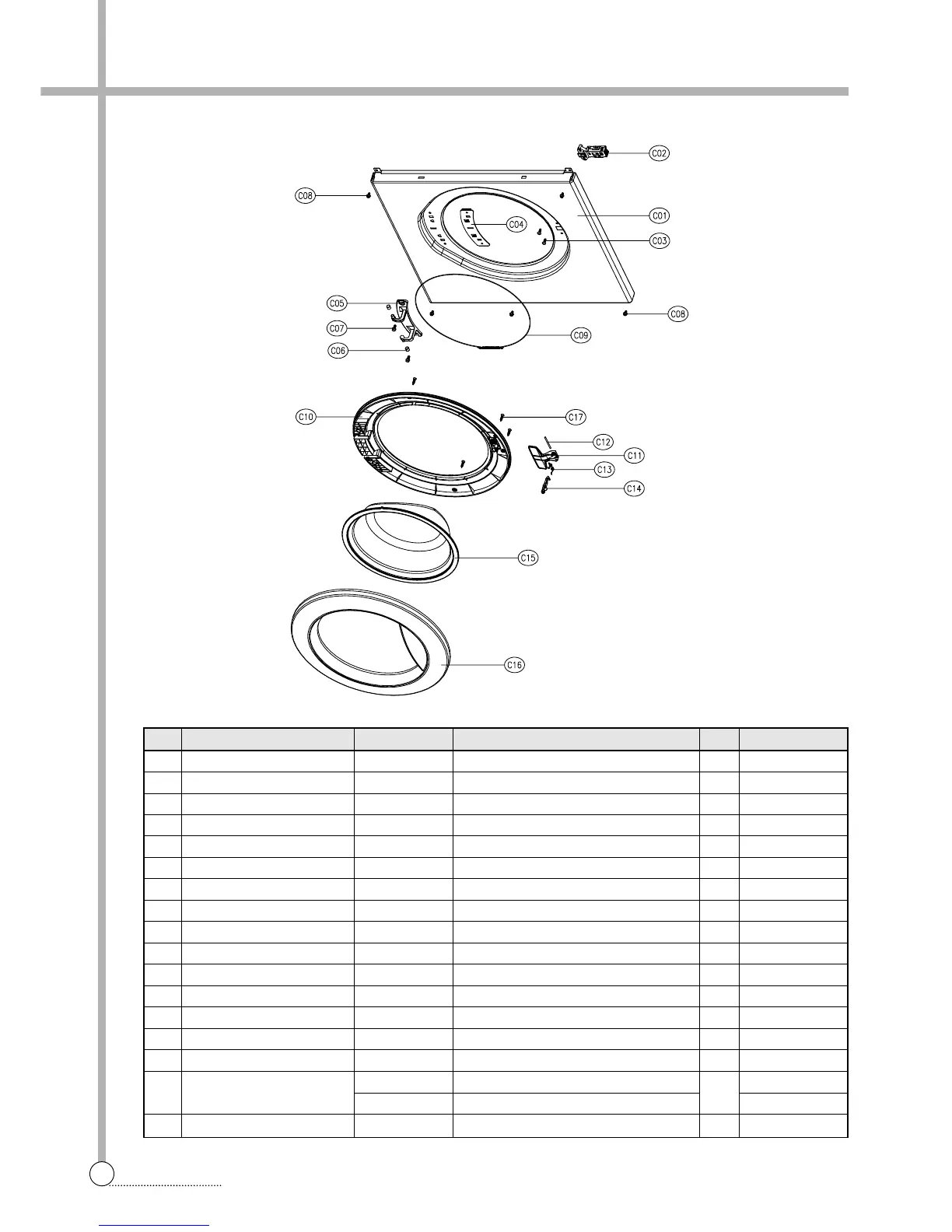

EXPLODE VIEW AND PARTS LIST
■ CABINET FRONT AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
C01 CABINET FRONT 3610811220 SECD 0.7T 1
C02 SWITCH DOOR LOCK 3619047100
DL-LC BITRON_3P 250V 16A BI-METAL
1
C03 SCREW TAPPING 7122401208 T2S TRS 4X12 SUS 2
C04 PLATE HINGE SUPPORT 3614531900 SGCC T1.6 1
C05 HINGE DOOR 3612902800 ZNDC 1
C06 CAP HINGE DOOR 3610916500 POM 2
C07 SCREW TAPPING 3616030000 F/L BOLT(SE) 5*12 SUS 2
C08 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4*8 6
C09 CLAMP DOOR AS 3611204800 HSWR D=1.4 1
C10 FRAME DOOR I 3612205200 PP 1
C11 HANDLE DOOR 3612608600 ABS 1
C12 PIN HANDLE 3618200200 SUS304, D3, L48 1
C13 SPRING HOOK 3615114600 SUS D1.4 1
C14 HOOK DOOR 3613100700 ZNDC 1
C15 DOOR GLASS 361A110700 GLASS PI300 1
C16 FRAME DOOR O
3612205100 ABS
1
DWD-FD1411
3612205140 CR6+ GILDING DWD-FD1412
C17 SCREW TAPPING 7115402008 T1S FLT 4*20 SUS 6
