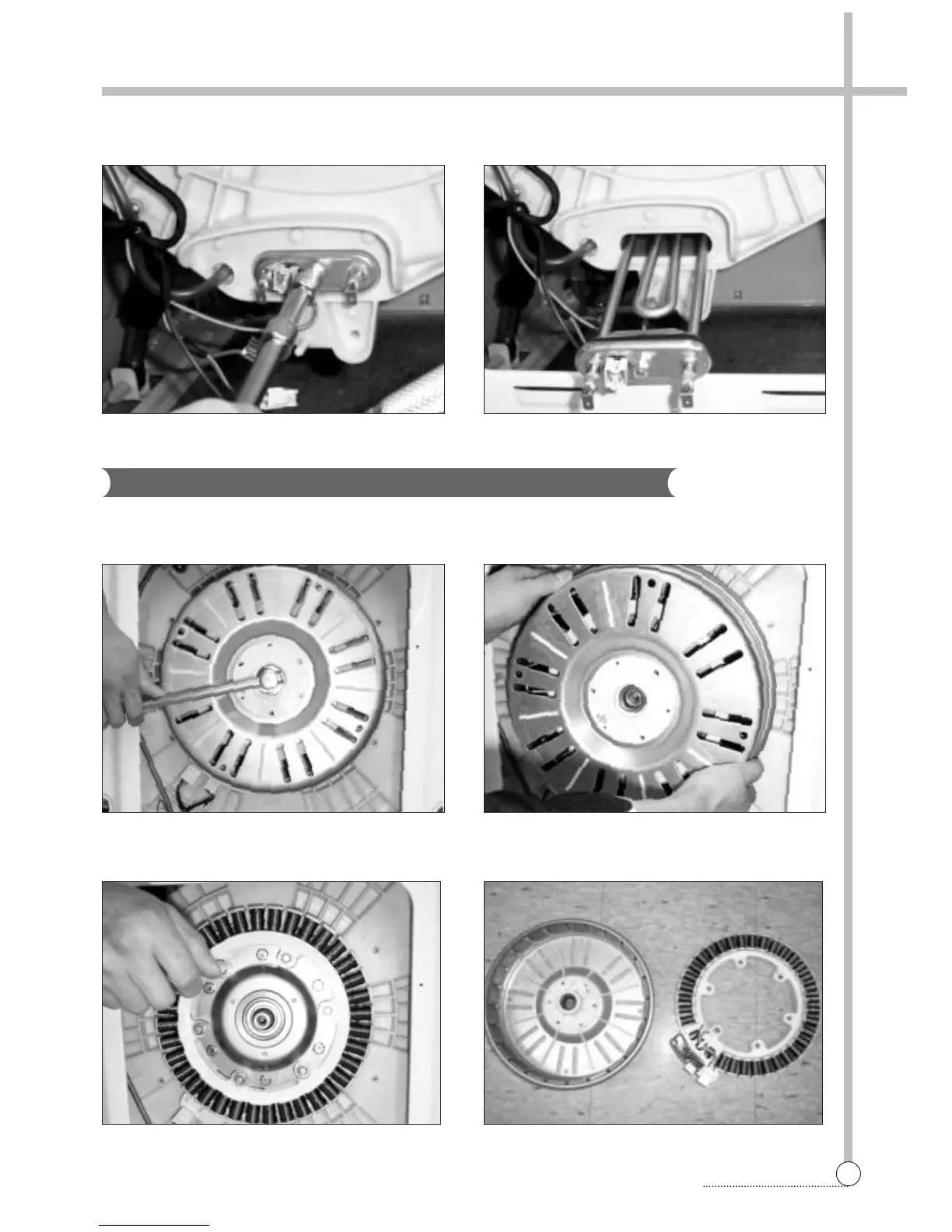

DIRECTION FOR DISASSEMBLY
3) Remove the nut using the 10mm hex wrench and
remove the earth terminal from the HEATER.
4) Loose the nut of the HEATER and pull out the
HEATER.
BLDC MOTOR
1) Remove the nut using the 17mm hex wrench. 2) Pull out the ROTOR.
3) Remove six screws using the 10mm hex wrench and
connectors from the STATOR.
4) Separate the STATOR from the TUB.
