21

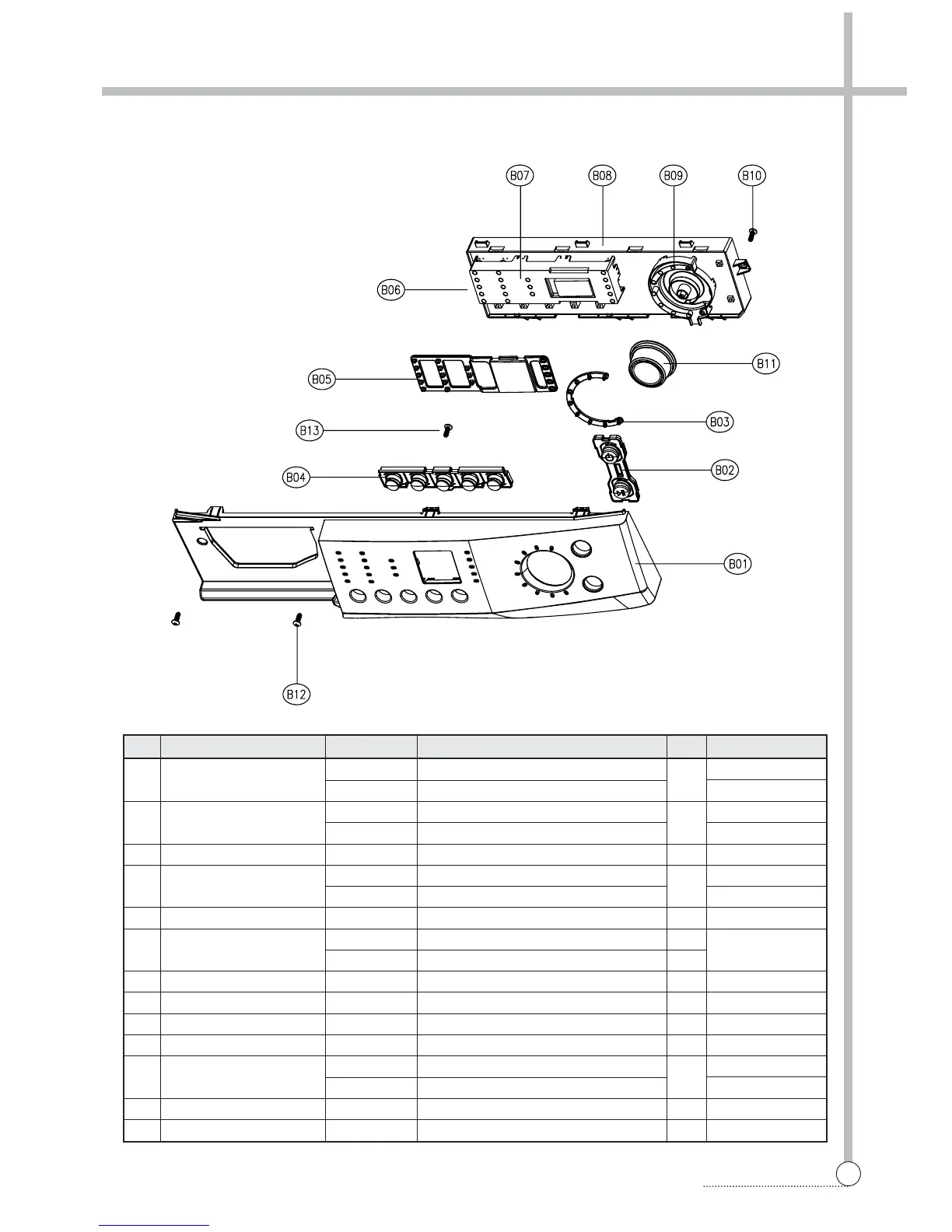

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-FD141X SERIES)
B01 PANEL *F
3814282702 HIPS
1
DWD-FD1411(2)
3814282710 SILVER SPRAY DWD-FD1413
B02 BUTTON POWER
3616603600 ABS
1
DWD-FD1411
3616603620 ABS + AL COATING DWD-FD1412(3)
B03 WINDOW DIAL 3615503100 ABS-TR 1
B04 BUTTON SELECT 3616603500 ABS
1
DWD-FD1411
3616603520 ABS + AL COATING DWD-FD1412(3)
B05 WINDOW DISPLAY AS 3615503020 ABS-TR + STICKER 1
B06 PCB AS
PRPSSWFJ-- DWD-FD14'S, DONGSUH MOTOR 1
PRPSSWFL-- DWD-FD14'S, NEWMOTECH MOTOR 1
B07 HOLDER LED 3613049600 ABS 1
B08 CASE PCB 3611143100 HIPS 1
B09 HOLDER DIAL 3613049700 ABS 1
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 KNOB DIAL AS
3613405000 ABS
1
DWD-FD1411(2)
3613405010 SPRAY DWD-FD1413
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
Refer to Detailed Part
Code of PCB AS
To Next Page
