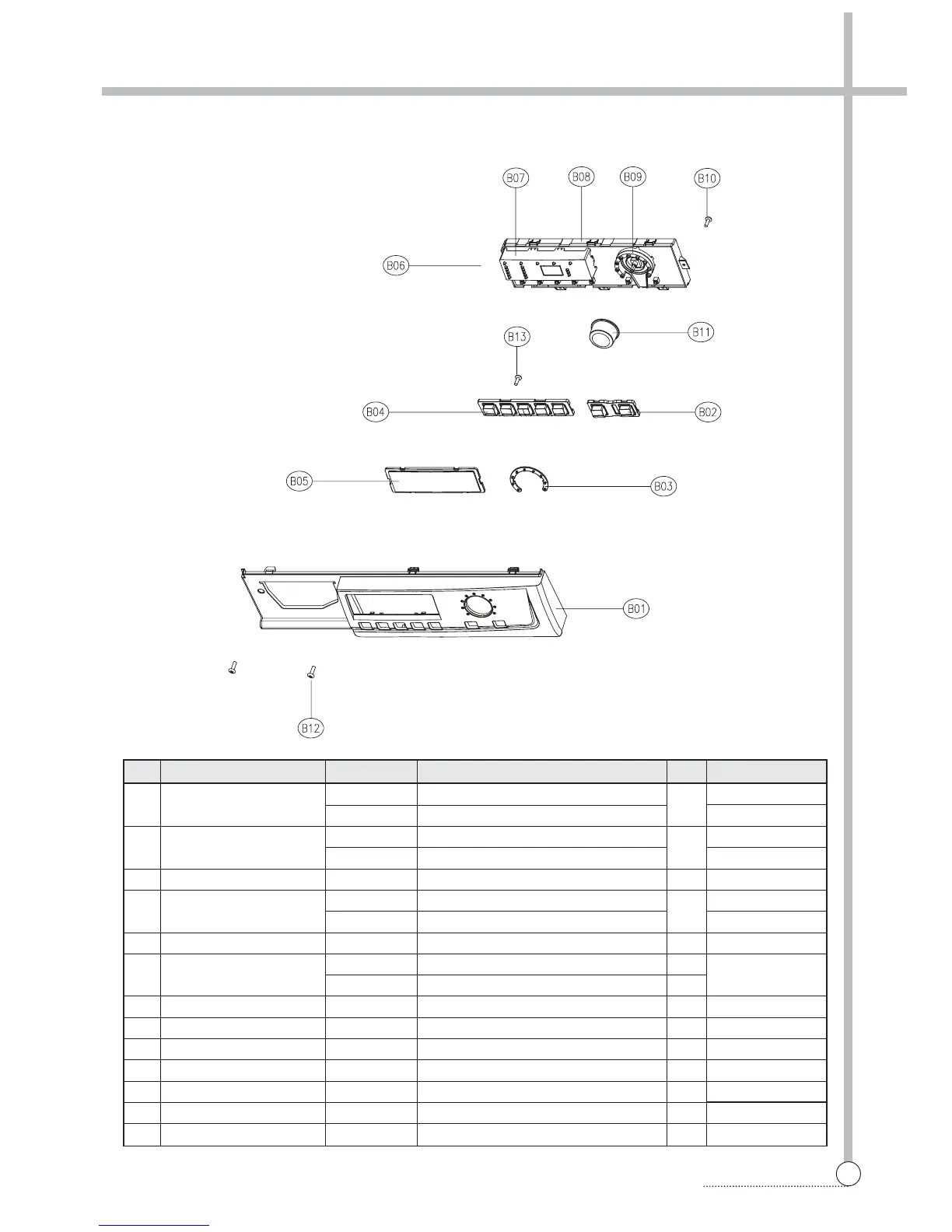

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-FD143X SERIES)
B01 PANEL *F
3614285802 HIPS
1
DWD-FD1431(2)
3614285810 ABS + SPRAY DWD-FD1433
B02 BUTTON POWER
3616635300 ABS
1
DWD-FD1431
3616635310 ABS + SPRAY DWD-FD1432(3)
B03 WINDOW DIAL 3615504200 ABS-TR 1
B04 BUTTON SELECT
3616635400 ABS
1
DWD-FD1431
3616635410 ABS + SPRAY DWD-FD1432(3)
B05 WINDOW DISPLAY 3615504300 ABS-TR 1
B06 PCB AS PRPSSWFJ-- DWD-FD14'S, DONGSUH MOTOR 1
PRPSSWFL-- DWD-FD14'S, NEWMOTECH MOTOR 1
B07 HOLDER DISPLAY 3613051700 HIPS 1
B08 CASE PCB 3611143200 HIPS 1
B09 HOLDER DIAL 3613051500 HIPS 1
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 KNOB DIAL 3613405210 ABS+SPRAY 1
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
Refer to Detailed Part
Code of PCB AS
To Next Page
