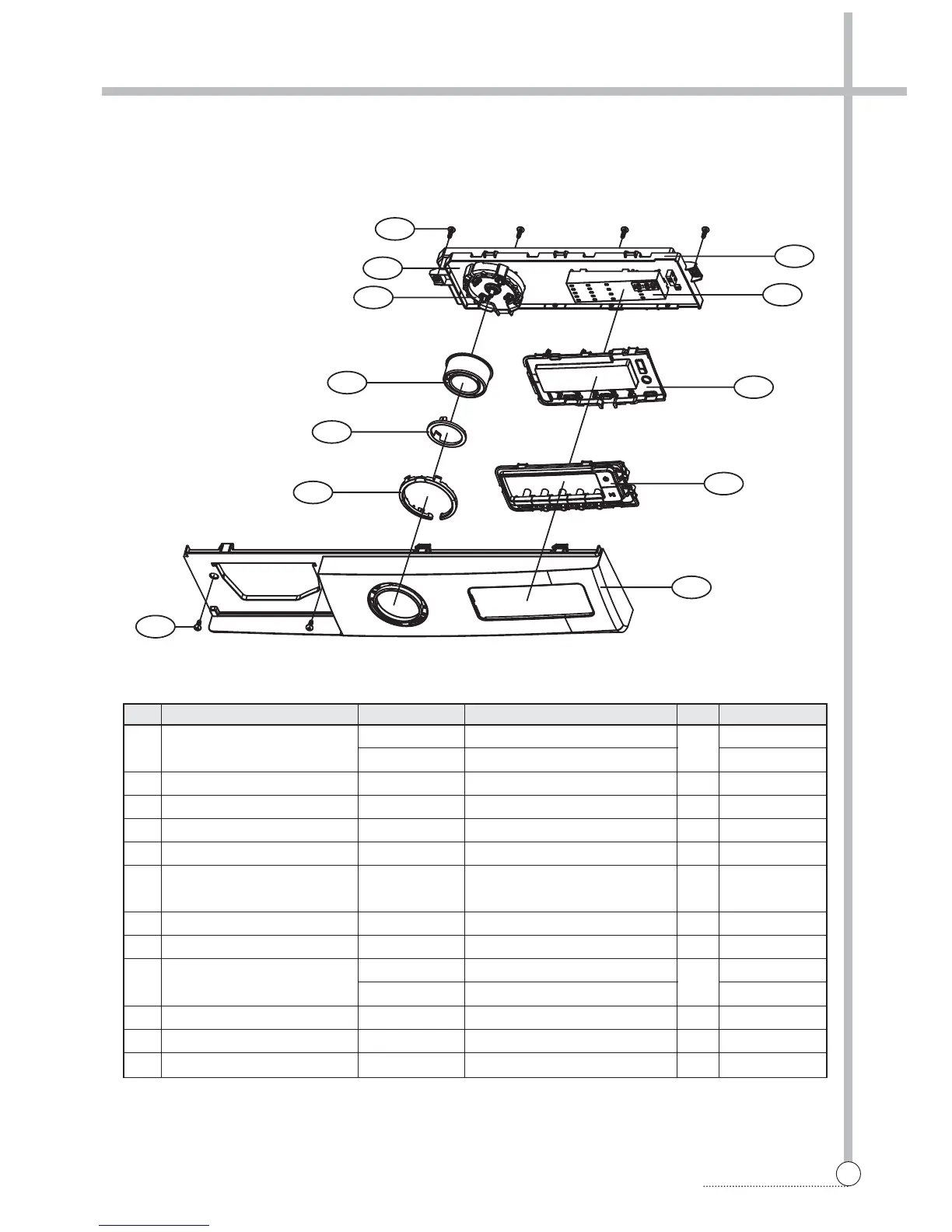

EXPLODE VIEW AND PARTS LIST
B01 PANEL F
36142T3100 D-F'SERIES 7TH , ABS
DWD-FD1471(2)
36142T3110 D-F'SERIES 7TH , ABS+ SPRAY DWD-FD1473
B02 BUTTON SELECT 3616646100 D-F'SERIES 7TH , ABS(SPRAY) 1 DWD-FD147X
B03 WINDOW DISPLAY 3615510500 D-F'SERIES 7TH , TR ABS 1 DWD-FD147X
B04 HOLDER LED(FUNCTION) 3613062200 D-F'SERIES 7TH ,HIPS 1 DWD-FD147X
B05 CASE PCB 3611149700 D-F'SERIES 6TH / 7TH, HIPS 1
DWD-FD146(7)X
B06 PCB AS PRPSSWFK-- DWD-FD147X SERIES 1
B07 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B08 HOLDER LED COURSE 3613062100 D-F'SERIES 7TH , HIPS 1 DWD-FD147X
B09 BUTTON DIAL
3616646000 D-F'SERIES 7TH . ABS
DWD-FD1471(2)
3616646010 D-F'SERIES 7TH . ABS+ SPRAY DWD-FD1473
B10 DECO KNOB DIAL 3611696400 L-SERIES 2ND,ABS,SPIN 1 DWD-FD147X
B11 WINDOW COURSE 3615510600 D-F'SERIES 7TH , TR ABS 1 DWD-FD147X
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
Refer to Detailed Part
Code of PCB AS
■ PANEL FRONT AS (DWD-F147X SERIES)
To Next Page
