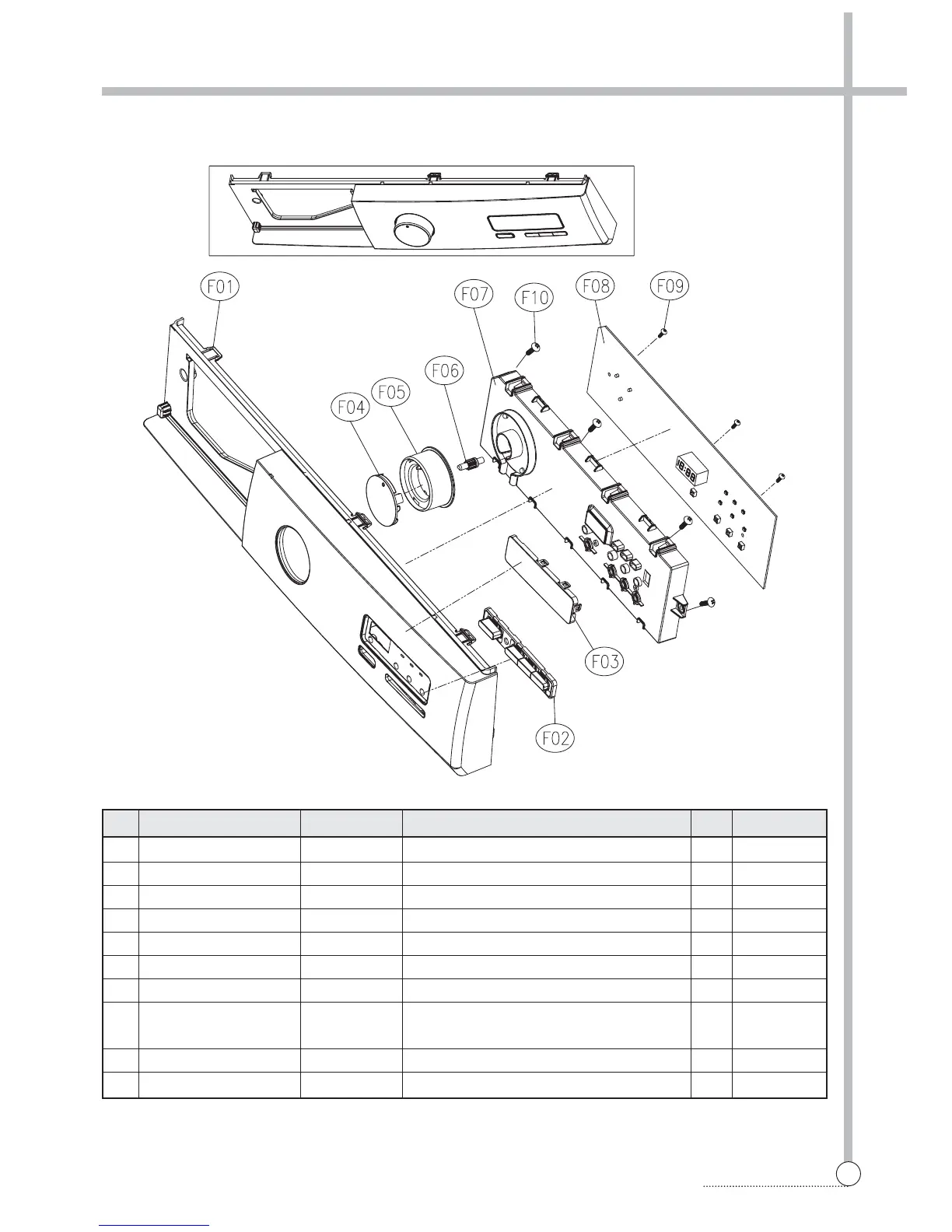

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS
F01 PANEL F 36142T3A00 HIPS, FT1081 1
F02 BUTTON P.S 3616647600 ABS, FT1081 1
F03 WINDOW DISPLAY 3615511700 ABS(TR), FT1081 1
F04 DECO DIAL 36166DGQ00 ABS, FT1081 1
F05 KNOB DIAL 3616647700 ABS, FT1081 1
F06 SHAFT KNOB 3614905700 POM, MU802'S 1
F07 CASE PCB F 36111T2X00 HIPS, FT1081 1
F08 PCB AS PRPSSWB--- DWD-F1XXX SERIES 1
F09 SCREW TAPPING 7122300811 T2S TRS 3X8 3
F10 SCREW TAPPING 7122401411 T2S TRS 4X14 4
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
Refer to
Detailed Part Code
of PCB AS
