17

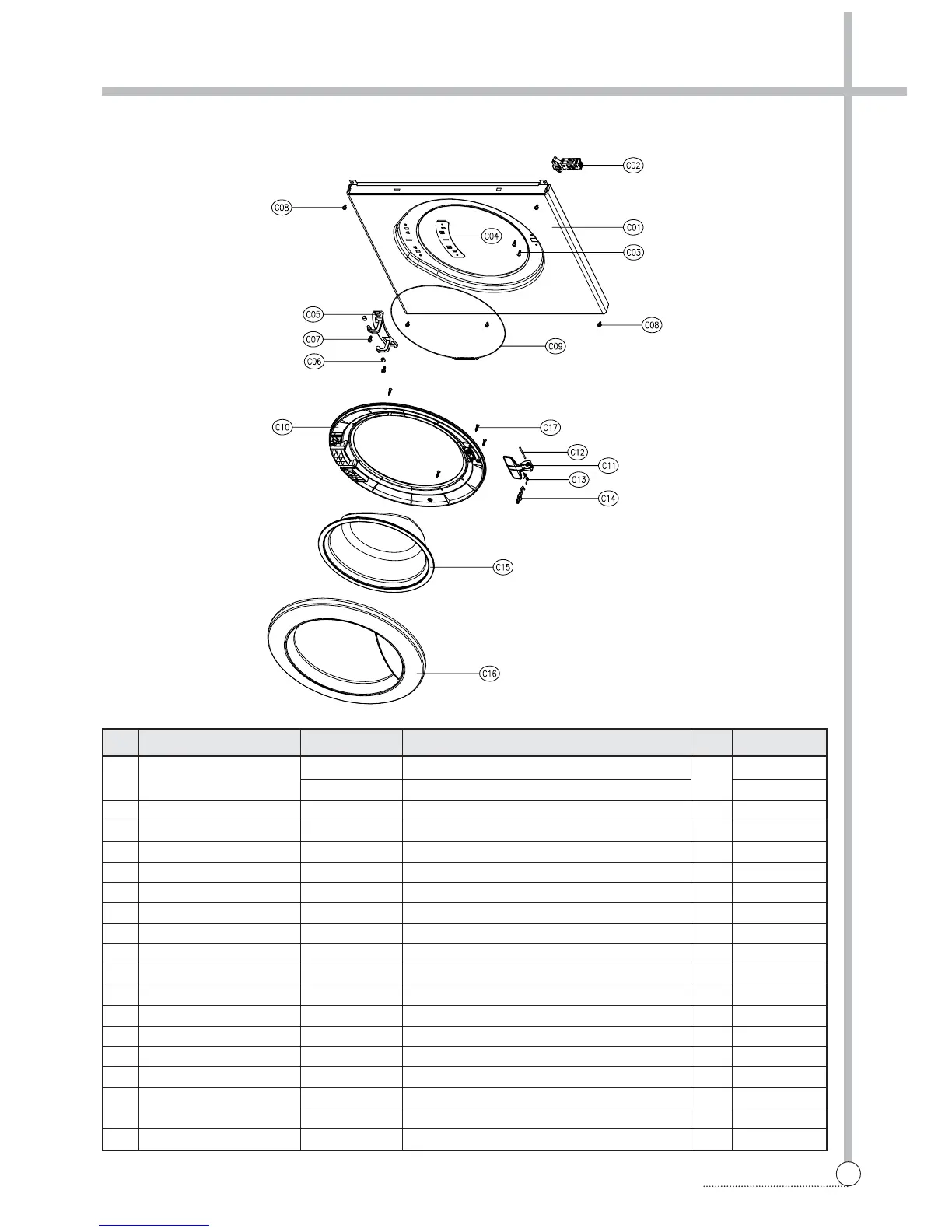

EXPLODE VIEW AND PARTS LIST
■ CABINET FRONT AS
C01 CABINET FRONT 3610811210 PCM, SGCC 0.8T, SILVER 1 DWD-F1XX3
3610811220 SECD 0.7T DWD-F1XX1(2)
C02 SWITCH DOOR LOCK 3619047100 DL-LC.BITRON_3P.250V16A.BI-METAL 1
C03 SCREW TAPPING 7122401208 T2S TRS 4X12 SUS 2
C04 PLATE HINGE SUPPORT 3614531900 SGCC T1.6 0 No use
C05 HINGE DOOR 3612902800 ALDC 1
C06 CAP HINGE DOOR 3610916500 POM 2
C07 SCREW TAPPING 3616030000 F/L BOLT(SE) 5*12 SUS 2
C08 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4*8 6
C09 CLAMP DOOR AS 3611204810 HSW3, D=1.4 GS 1
C10 FRAME DOOR I 3612205200 PP 1
C11 HANDLE DOOR 3612608600 ABS 1
C12 PIN HANDLE 3618200200 SUS304, D3, L48 1
C13 SPRING HOOK 3615114600 SUS D1.4 1
C14 HOOK DOOR 3613100700 ZNDC 1
C15 DOOR GLASS 361A110700 GLASS PI300 1
C16 FRAME DOOR O 3612205102 HIPS D-F'S 1 DWD-F1XX1
3612205120 CR3 DWD-F1XX2(3)
C17 SCREW TAPPING 7115402008 T1S FLT 4*20 SUS 6
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
To Next Page
