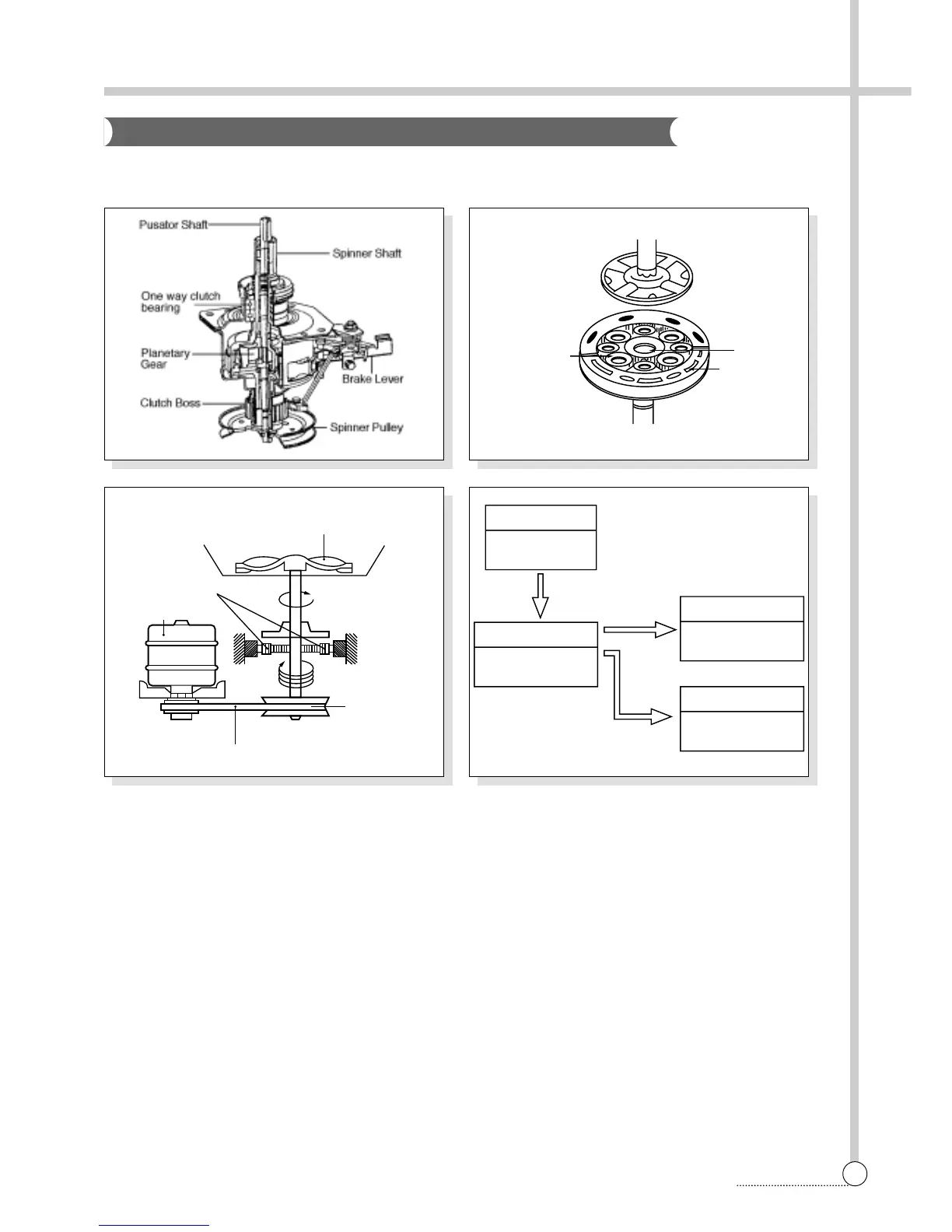

Daewoo DWF-412S - Gear Mechanism Assembly

11
FEATURE
The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small sized
clothes.
Planetary gear
Sun gear
Internal gear
Pulsator
1 revolution
5 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1800 r.p.m (60Hz)
1500 r.p.m (50Hz)
Gear Unit as
Directly
V.BELT
Tub
710-740r.p.m(60Hz)
640-675r.p.m(50Hz)
Pulsator
125-140r.p.m(60Hz)
130-150r.p.m(50Hz)
Spinner Pulley
710-740r.p.m(60Hz)
640-675r.p.m(50Hz)
Gear Mechanism Ass’y
