PARTS DIAGRAM
A2
A5
A4
A3
A9
A7
A9
A8
A6
A0
A10
A12
A11
A1
■■

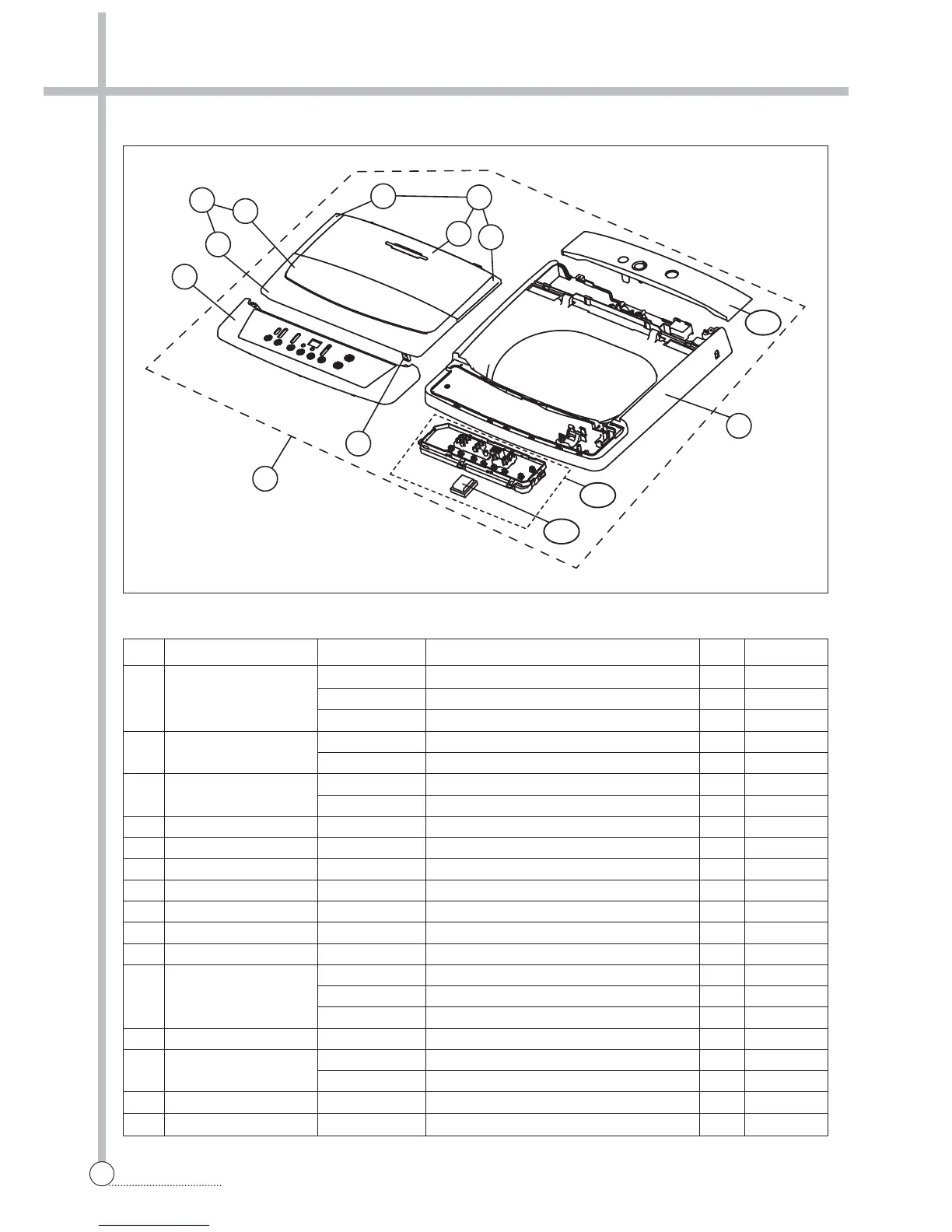

Parts Diagram - DWF-8000, 8001, 8002
■■
Parts List
A0 PLATE TOP AS - DWF-8000WJ (JAPAN) 1
3614523141 DWF-8000WNP(CHILE) 1
- DWF-8000WL (PERU) 1
A1 PLATE *T 3614521520 PP- JAPAN 1
3614521500 PP (BI730T)- PERU, CHILE 1
A2 PANEL *F 3614233500 ABS (728),CHILE, PERU 1
3614233510 ABS (728),JAPAN 1
A3 DOOR FRONT AS 361A113130 8000W DOOR(TR)+COVER(NON-TR) 1
A4 DOOR *F 36117ADK00 TR ABS 1
A5 COVER DOOR F 3611432700 ABS 1
A6 HOOK DOOR 3613101300 ZNDC 5.5K - JAPAN 1
A7 DOOR BACK AS 361A113025 8000W DOOR(TR)+COVER(NON-TR) 1
A8 DOOR *B 36117ADL00 TR ABS 1
A9 COVER DOOR B 3611432800 ABS 1
A10 PCB AS PRPSSWU619 DWF-8000WJ, JAPAN, DOOR LOCK 1
PRPSSWU621 DWF-8000WL, PERU, PP, HOT, NON-BB 1
PRPSSWU622 DWF-8000WN, CHILE, PP, HOT, NON-BB 1
A11 TRANS POWER 5EPU131210 TS6-V14 1
A12 PANEL *B 3614233600 PP (J945) - PERU, CHILE 1
3614233400 PP (J945) - JAPAN 1
A13 HOOK DOOR 3613101300 ZNDC 5.5K - JAPAN 1
A14 TRANS POWER 5EPU131210 TS6-V14 1
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
* About more parts such as electric parts not specified on this page, please refer to the other pages.
