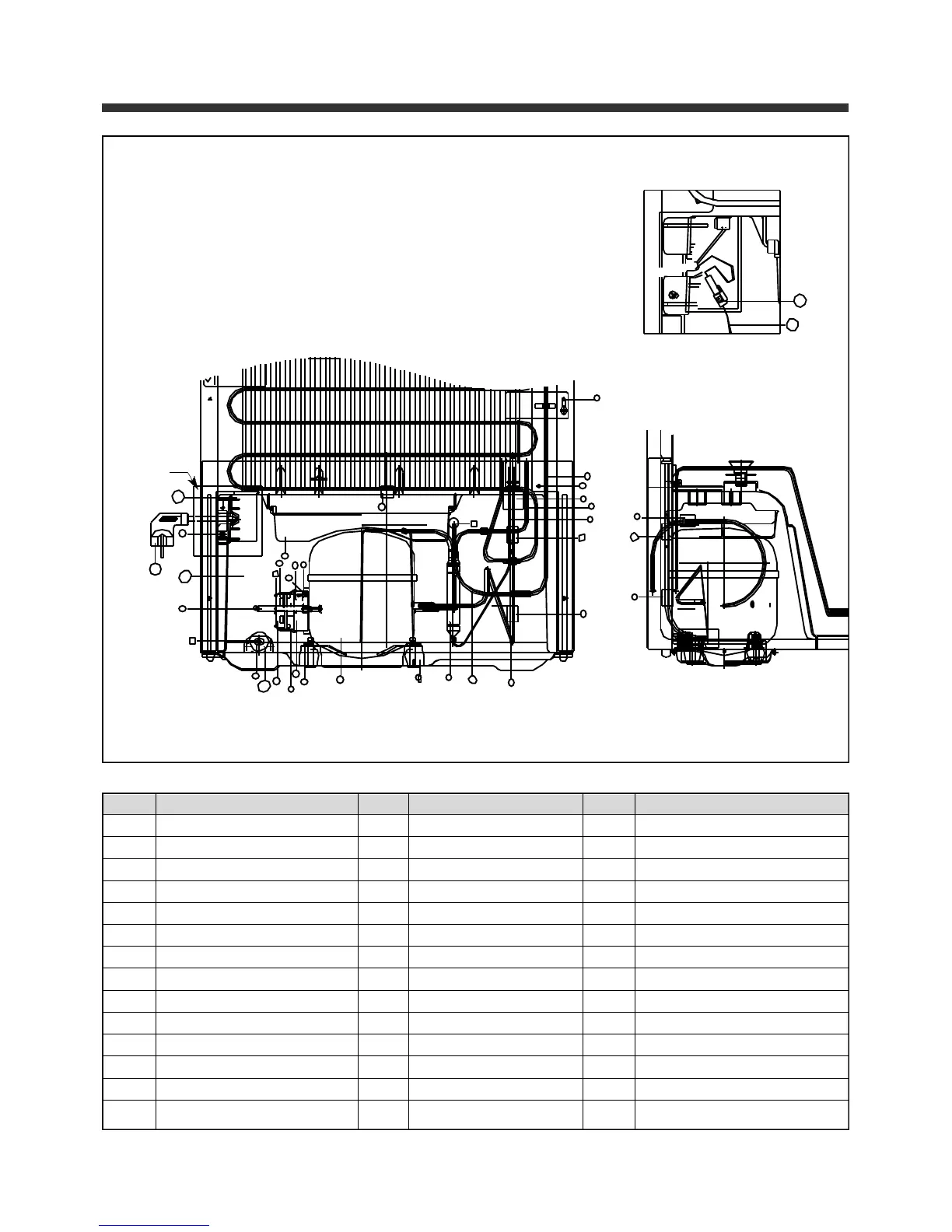

6. MACHINE ROOM VIEW AND PART LIST
1
DETAIL "X"
12
13
12
14-11
14-10
21
22
23
14-1
14-4
14-5
DETAIL "X"
8
20
14-2
14-8
14-9
18
2
3
14
15
19
14-3
16
A
4
5
6
7
9
10
11
12
12
17
13
6
Nº PART NAME Nº PART NAME Nº PART NAME
A PIPE HOT 14 BOX RELAY AS 17 CAP DRAINER
1 ABSORBER COMP. 14-1 BOX RELAY 18 SCREW TAPPING
2 COMPRESSOR 14-2 HARNESS RELAY 19 SPECIAL WASHER R/C
3 FIXTURE COMP. 14-3 CAPACITOR RUN AS 20 SPECIAL NUT R/C
4 EVAPORATOR AS 14-4 CABLE CLAMP 21 SPECIAL WASHER
5 PIPE Wi-CON AS 14-5 SCREW TAPPING 22 SCREW MACHINE
6 SPECIAL SCREW E 14-6 SWITCH P RELAY PTC 23 CASE VAPORI
7 PIPE CONN B 14-7 SWITCH P RELAY OL
8 PIPE CHARGE 14-8 CORD POWER AS
9 PIPE SUC. CONN 14-9 COVER ME HOUSING
10 DRYER AS 14-10 HARNESS EARTH
11 ABSORBER PIPE B (GUM) 14-11 LABEL EARTH
12 ABSORBER PIPE C (40 gr) 15 RELAY COVER
13 ABSORBER PIPE C (38 gr) 16 BAND RELAY
