Nº FUNCTION CONTENTS
1 DISPLAY
6 0

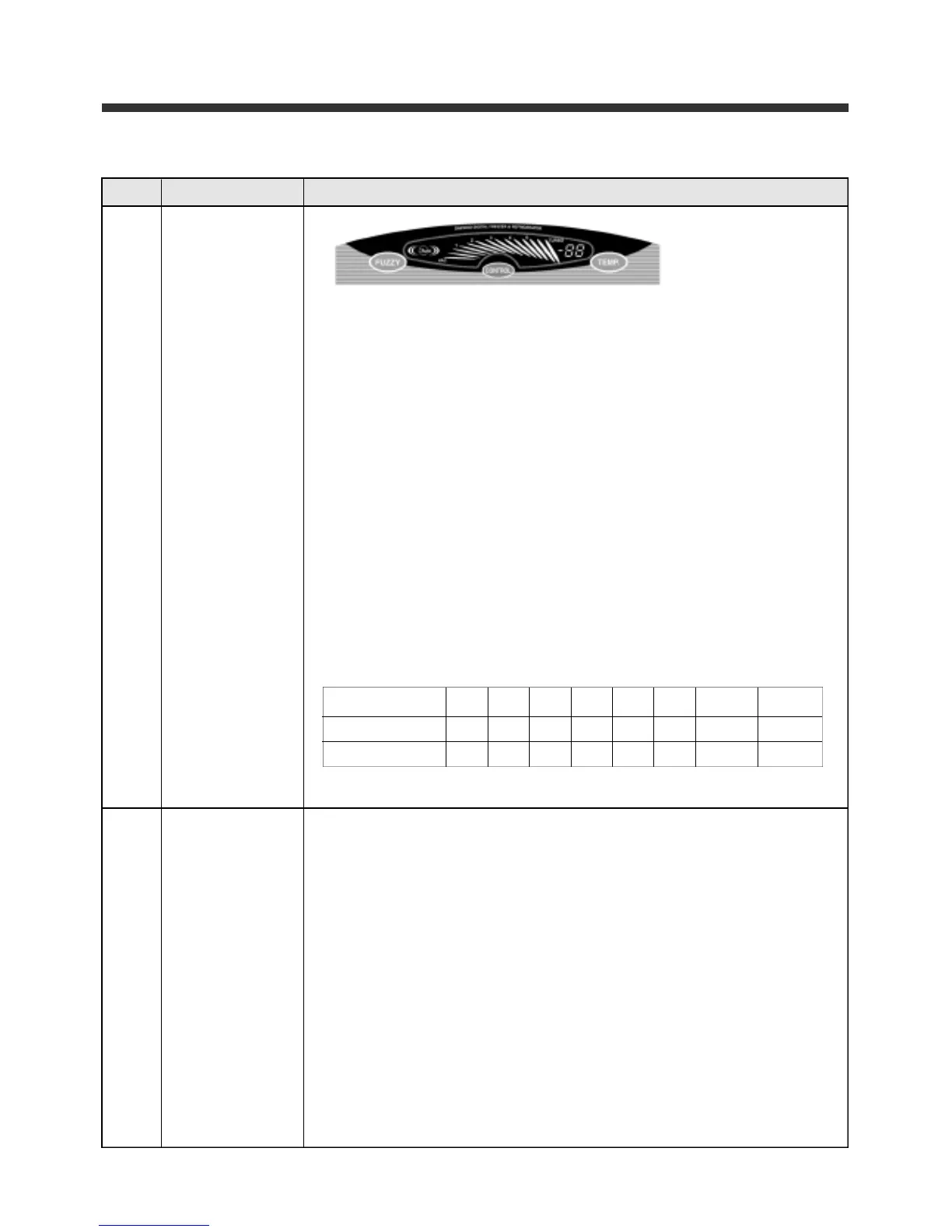

ERF-367/387/397/417A PCB CONTROL FUNCTION
Pcb Control Functions
1) CONTROL BUTTON
1.1- Temperature of Room R adjustment
1.2- When you press this button, the temperature is controlled in
sequence.
• Display when VAC Mode was chosen: VAC LED lamp on.
• Display when 1step Mode was chosen: 1 LED lamp on.
• Display when 2step Mode was chosen: 1~2 LED lamps on.
• Display when 3step Mode was chosen: 1~3 LED lamps on.
• Display when 4step Mode was chosen: 1~4 LED lamps on.
• Display when 5step Mode was chosen: 1~5 LED lamps on.
• Display When TURBO Mode was chosen: 1~TURBO LED lamps on.
2) FUZZY BUTTON
2.1- When you press the ‘FUZZY’ button: VAC~4 LED lamps and AUTO
LED lamp on.
2.2- If you press it one more time (it means FUZZY is off.), you can
adjust the temperature of REF. by CONTROL button. If FUZZY is off,
it turns to the last mode of TEMP.
3) TEMP. BUTTON
3.1- If you press ‘TEMP’ button one time, it displays the temperature of
the refrigerator compartment. If you press ‘TEMP’ button two times
continuously, it displays the temperature of the freezer
compartment.
3.2- Display led lamp will turn off within 5 seconds.
1) CONTROL BUTTON
1.1- Temperature Adjustment: If you press the CONTROL button, it
follows
4 (MID, Default) R 5 (HIGH) R TURBO (SUPER FREEZING mode)
R VAC R 1(LOW) R 2 R 3 R 4
• If you don’t press the button again in 4 seconds, temperature will
be set.
1.2- Forced Defrost Mode: start by pressing CONTROL button for 5
seconds continuously.
1.3- SHORT CIRCUIT TEST: start and cancel by pressing CONTROL
button 30 times continuously.
2) FUZZY BUTTON
2.1- Press the FUZZY button to turn on & off.
3) TEMP. BUTTON
3.1- If you press ‘TEMP’ button one time, it displays the temperature of
Room R. If you press ‘TEMP’ button two times continuously, it
displays the temperature of Room F.
VAC 1 2 3 4 5 TURBO FUZZY
ROOM R 6 5 4 4 3 1 0 3
ROOM F -17 -18 -19 -19 -20 -22 -23 -20
2 BUTTON
ADJUSTMENT
